The DDS353 Series Digital Power Meter works directly connected to a maximum load 50A AC circuit.
This certification allows this model to be used for any sub-billing applications.
YTL DDS353 DIN rail Singlephase 1 Wire CE RoHS MID B+D Approved Submeter
DDS353F-R Single Phase, Electric Energy kWh Din Rail Pulse Meter 1000imp/kWh MID Certified Company
Home / Products / Applications / Electricity Distribution / DDS353F-R Single Phase, Electric Energy kWh Din Rail Pulse Meter 1000imp/kWh MID Certified
.jpg?imageView2/2/format/jp2)
DDS353F-R
Contact Us
SPEC Download

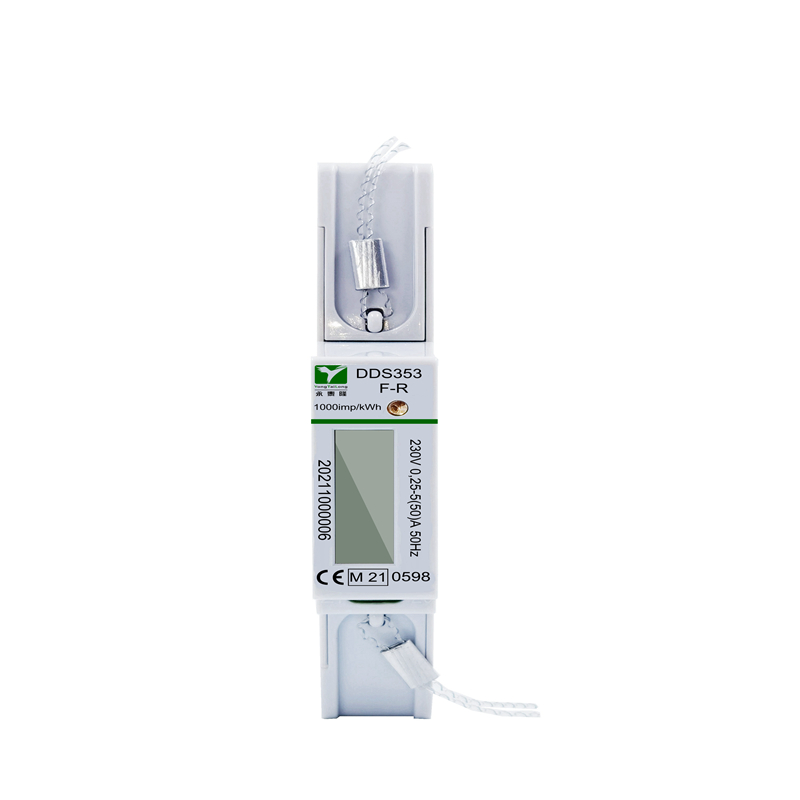

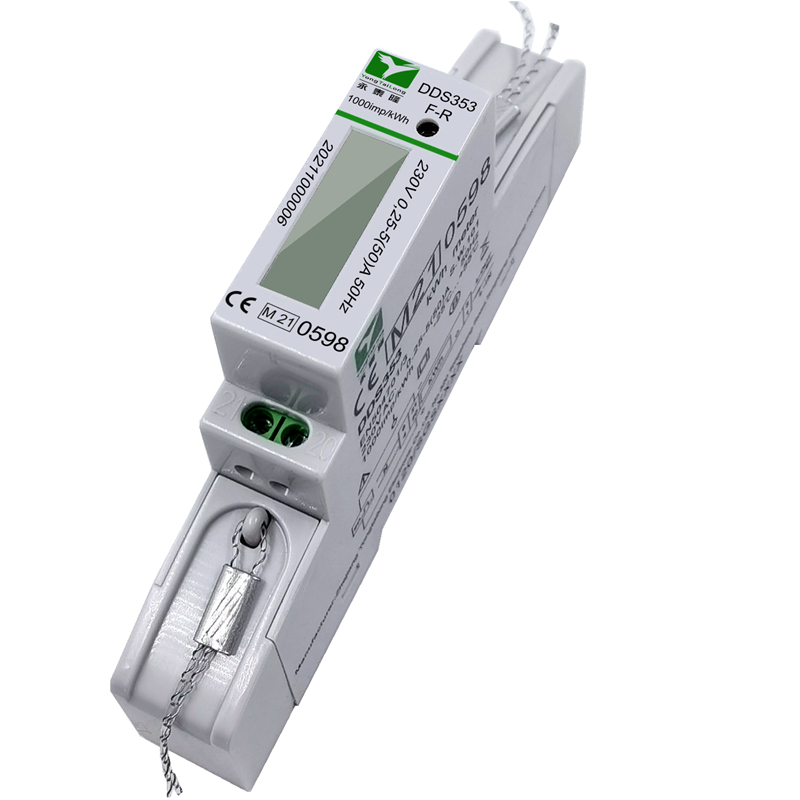

DDS353F-R Single Phase, Electric Energy kWh Din Rail Pulse Meter 1000imp/kWh MID Certified
- Technical Parameters
- Measurements
- Meter Dimensions
- Diagram for installation
- det6
-
Content
Parameters
Standard:
EN50470-1/3
Rated Voltage:
230V
Rated Current:
0,25-5(30)A,0,25-5(32)A,0,25-5(40)A,
0,25-5(45)A,0,25-5(50)A
Impulse Constant:
1000 imp/kWh
Frequency:
50Hz/60Hz
Accuracy Class:
B
LCD Display:
LCD 5+2 = 99999.99kWh
Working Temperature:
-25～55℃
Storage Temperature:
-30~70℃
Power Consumption:
<10VA <1W
Average Humidity:
≤75% (Non Condensing)
Maximum Humidity:
≤95%
Start Current:
0.004Ib
LED flash:
Impulse indication, pulse width = 80 ms
-
Meter Type
Measurement
DDS353
kWh Total =Forward energy+Reverse energy
DDS353AF
KWh Total=Forward energy only
DDS353F+R
1 = kWh total ( forward + reverse)
2 = kWh (forward energy [import])
3 = kWh (reverse energy [export])
DDS353F-R
1 = kWh total (calculated by forward - reverse)
2 = V (Voltage)
3 = A (Ampere - current load)
4 = W (Watt - current active power)
5 = Hz (Frequency)
6 = PF (power factor)
DDS353AI
1 = kWh total ( forward + reverse)
2 = V (Voltage)
3 = A (Ampere - current load)
4 = W (Watt - current active power)
5 = Hz (Frequency)
6 = PF (power factor)
DDS353FI
1=Forward energy only
2= V (Voltage)
3= A (Ampere - current load)
4= W (Watt - current active power)
5= Hz (Frequency)
6 = PF (power factor)
DDS353F+R+I
1 = kWh total ( forward +reverse)
2 = kWh (forward energy [import])
3 = kWh (reverse energy [export])
4 = V (Voltage)
5 = A (Ampere - current load)
6 = W (Watt - current active power)
7 = Hz (Frequency)
8 = PF (power factor)
DDS353F-R-I
1 = Total Kwh（Forward - Reverse)
2 = Forwarder energy display
3 = reverse energy display
4 = V (Voltage)
5 = A (Ampere - current load)
6 = W (Watt - current active power)
7 = Hz (Frequency)
8 = PF (power factor)
-
-
- https://hqcdn.hqsmartcloud.com/ytl-e/2022/07/06/dds353.pdf
