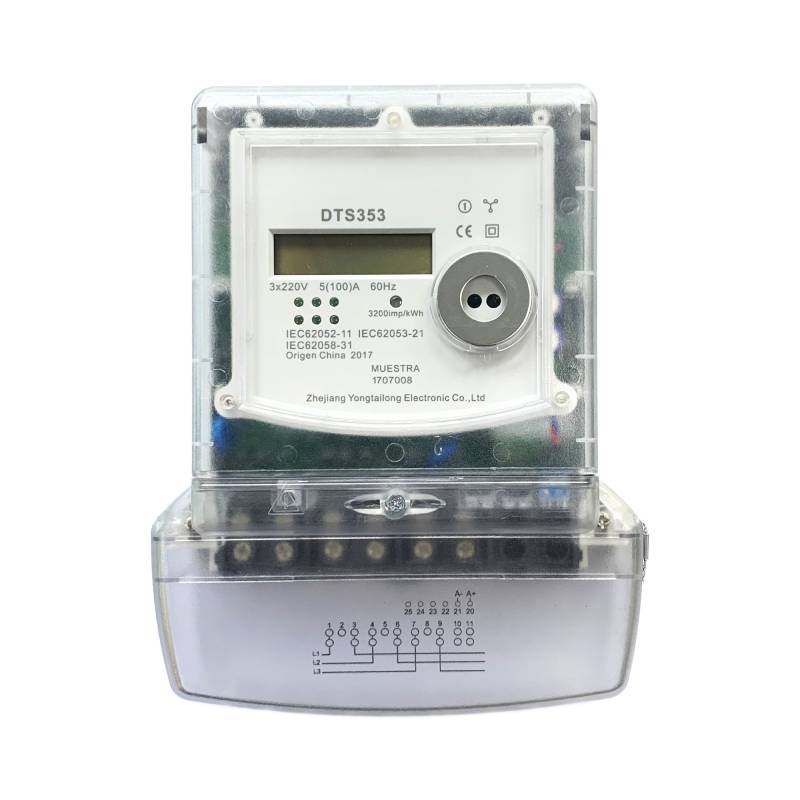

This is a three phase four wire LCD display meter. his three phase meter for competitive purpose. Low cost, simple function.
*kWh measurement.
*Optical port according to IEC1107 mode A.
*Long life LCD
*Optional function: super capacitor
*Adopt three shunts solution
| Voltage of D521034 | 3*220/380V AC±20% |
| Current | 3*5(100) A |
| Accuracy class | 1 |
| Standard | IEC62052-11,IEC62053-21 |
| Frequency of D521033 | 60Hz |
| Frequency of D521034 | 50Hz |
| Impulse constant | 800imp/kWh |
| Display | LCD 6+1 |
| Power consumption | ≤8VA ≤1Wh |
| Starting current | 0.004Ib |
| Temperature range | -20～70℃ |
| Average humidity value of year | 75% |
| Maximal value | 95% |
| Material | |
| Meter base | PC |
| Meter cover | PC |
| Terminal block | PBT |
| Terminal cover | PC |
| Panel | PC+ABS |
| Hook | ABS |

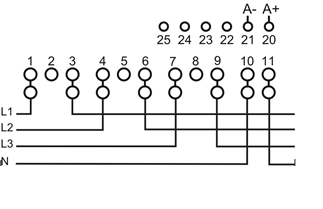

.png?imageView2/2/format/jp2)

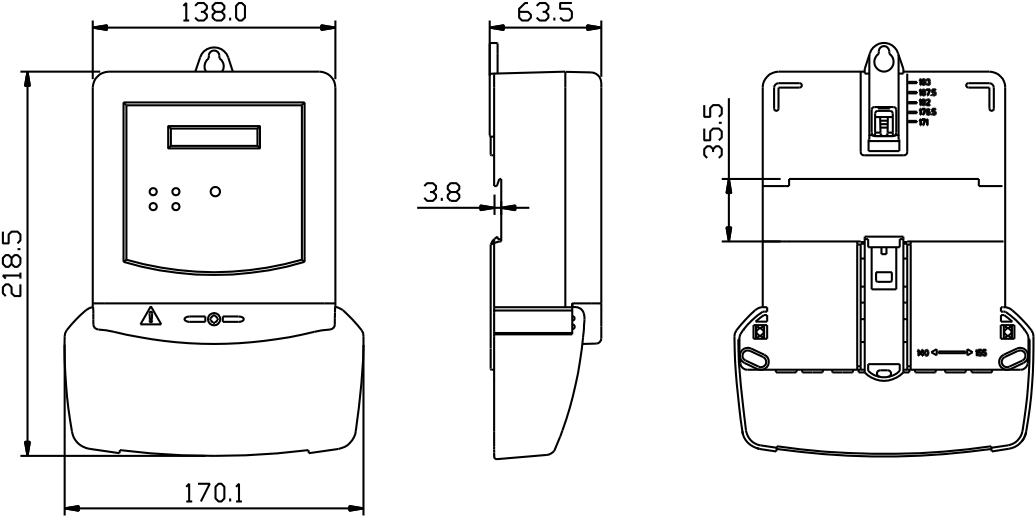

.png?imageView2/2/format/jp2)
Choose 35mm standard Din-Rail ( the length is confirmed by yourself ), fixed them in the location which are waiting for installation;
Put the meter into the upper Din-Rail, then push down the clip in the meter bottom.
After the bottom of the meter install into the Din-Rail successfully, release the clip to make sure the meter have fully installed.
