Replacing Traditional Professional Electronic Static Single-Phase Watt hour meter Suppliers

Home / Products / electronic energy meter / Replacing Traditional Professional Electronic Static Single-Phase Watt hour meter

D122015

Replacing Traditional Professional Electronic Static Single-Phase Watt hour meter

YTL prepaid meter Split Type 1 Phase two wires Weekend Tariff Electricity Smart Meter

This electronic static single-phase watt-meter is an ideal product with special integrated circuit and SMT production technology.

It enjoys: high accuracy, high reliability, high stability, low power consumption, preventing creep, light and compact, strong overload capacity.

It is used for metering 50Hz single-phase alternating current energy, and it is a new product for replacing traditional inductance watt-hour meter.

Technical Parameters

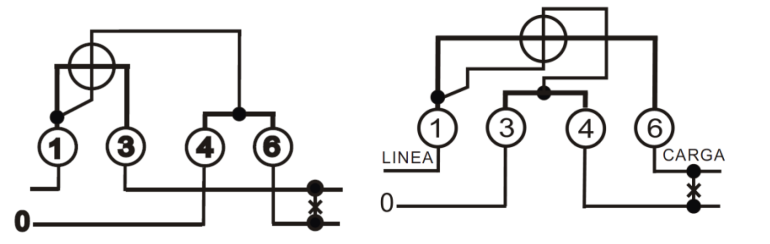

Connectlon Diagram
Meter Dimensions
det6

Height 153mm

Width 118mm

Depth 50mm
https://hqcdn.hqsmartcloud.com/ytl-e/2022/07/06/d123073单相两线多功能lcd表规格书.pdf

Applications

View all applications

View all products

D111001

Household wholesale manufacture Simple Single Phase Electric Meter electricity meter
D512026-01

Lcd Backlight Mutual Inductance Three-Phase Four-Section Electronic Electronic electricity meter
DEM2D

YTL DC meter DEM2D series 75mV Din-Rail 1 Phase 2 Wire CE RoHS Energy Meter
D519039

Electromechanical Equipment Energy Conservation Three-Phase Intelligent Power Sensor
D519041

YTL company Solution For Residential Three Phase CT Power meter Seven Wires electricity Meter
Digital Device Measure Electronic panel electricity meter
J119008

Control Intelligent Street Light Real Time Concentrator With RS485 Communication
J119007

real-time tasks 220V,50-60HZ concentrator with GPRS communication
DDS353H

School Dormitory Electrical Safe wholesale Watt hour meter manufacturer
AMI Metering Prepaid Three Phase Suspension Energy Meter
STS Prepaid Single Phase Suspension Energy Meter
DDS353AI

DDS353F-R Single Phase Electric Energy Din Rail Pulse Export kWh meter

Welcome To A National High-tech Enterprise

Established in 2000, Zhejiang Yongtailong Electronic Co., Ltd. is located in the center of Shanghai, Hangzhou and Suzhou cities. YTL is a professional China Replacing Traditional Professional Electronic Static Single-Phase Watt hour meter Suppliers and Replacing Traditional Professional Electronic Static Single-Phase Watt hour meter Company. With more than 20 years of energy metering experience, we devote ourselves to providing competitive projects and creating value for customers. YTL was one of the first companies in the domestic market with which had an internal R&D department as well as international sales business. Since our foundation in 2000 we have grown to a manufacturer which complies and meet to many specifications from our national and international partners. At present our export volume makes us a leading company for technology and product export to more than 50 countries throughout the world. With provincial high-tech enterprise R&D center, YTL is the Top 100-enterprise with most investment value in Zhejiang. And“Yongtailong”is the famous brand of Zhejiang. For any new products of customers, we will communicate with customers very professionally, listen to their opinions and give useful suggestions to ensure that excellent quality products are made.

2000

Established In
500+

Employees
60+

Export Country
500+

Design Right Patent

YTL Honor

MID
KEMA
DLMS
IEC
KEMA
SGS

YTL News

View All News

The strength of energy meter manufacturers

2023-09-28

With the development of the global economy and the continuous growth of energy demand, the export of energy meters has become an important business in the powe...
How to become a smart meter supplier?

2023-09-26

With the continuous development and progress of technology, smart meter products are increasingly being used in various industries. Smart meter devices can no...
How Do Energy Meters Empower Consumers to Optimize Their Energy Usage?

2023-09-25

In an era marked by growing concerns over energy consumption and its environmental impact, the role of energy meters has evolved from a simple tracking device t...
What is sub metering?

2023-09-21

What is sub metering? Measurement refers to the activity of achieving uniform units and accurate, reliable values. Measuring involves defining and converting m...
What is the difference between electronic electricity meter and mechanical energy meter?

2023-09-19

Both mechanical and, electronic electricity meter, are metering devices for measuring electricity consumption and have played a crucial role in measuring el...
How Does Energy Meter Calibration Ensure Precise Measurement?

2023-09-15

1. The Significance of Energy Meter Calibration: The importance of energy meter calibration extends far beyond simply ensuring fair billing for consumers. It pl...

Rated voltage：	110V,120V,220V,230V,240V
Rated Current：	1.5(6)A,5(30)A,10(40)A,20(80)A,5(100)A
Frequency：	50/60Hz
Connection mode：	CT type, Direct type
Display：	LCD, Counter
Accuracy class：	1.0,2.0
Power consumption：	≤0.6W, ≤0.3VA
Start Current：	0.4 %Ib
Constant：	12800imp/kWh,800/1600/3200/6400imp/kWh
Standard：	IEC62052-11,IEC62053-21
Working temperature：	-30—70℃
Storage temperature：	-40—75℃
Average humidity：	≤75%
