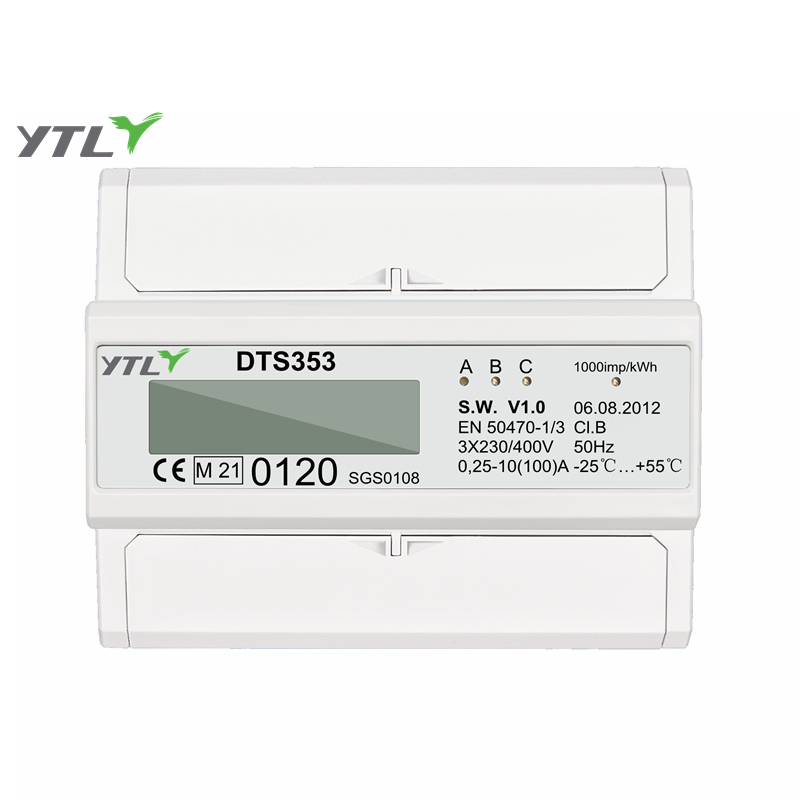

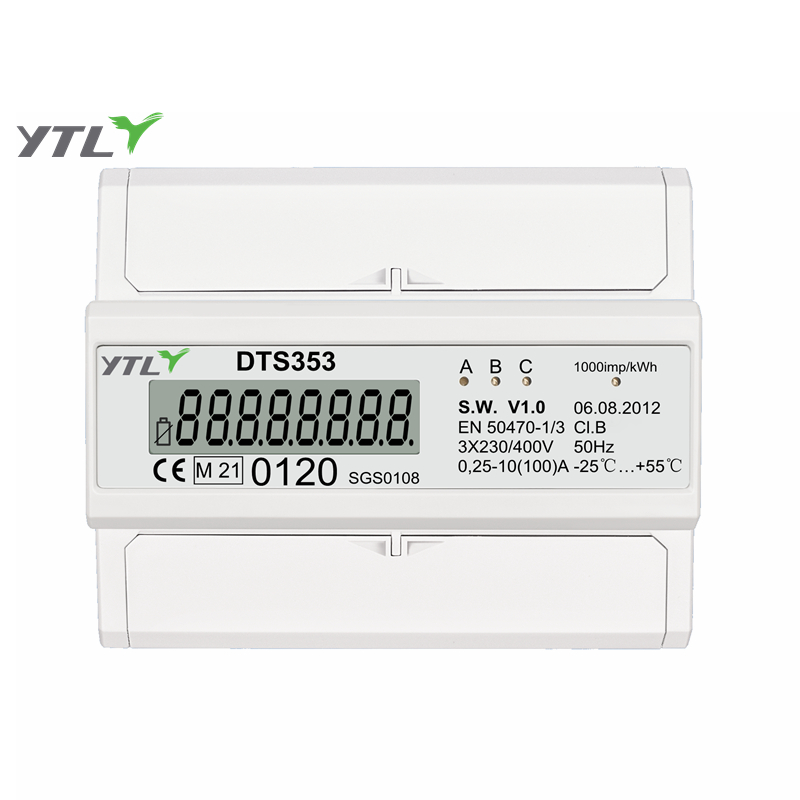

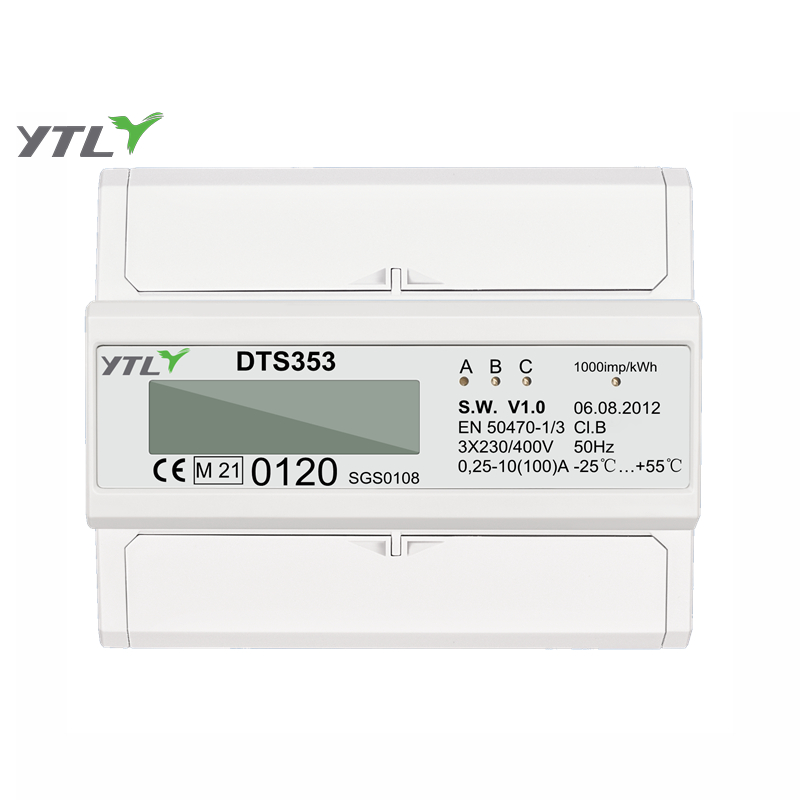

This is din rail three phase muli-funcational energy meter. It is popular in West European as its standard installation with DIN EN 50022, with RS485, which is the ideal solution for residential
and commercial installations.
Solution For Residential Muli-Funcational Three Phase Seven Wires Electric Meter Company
Home / Products / electronic energy meter / Solution For Residential Muli-Funcational Three Phase Seven Wires Electric Meter
D519041
Contact Us
SPEC Download
Solution For Residential Muli-Funcational Three Phase Seven Wires Electric Meter
- TechnicalParameters
- Description

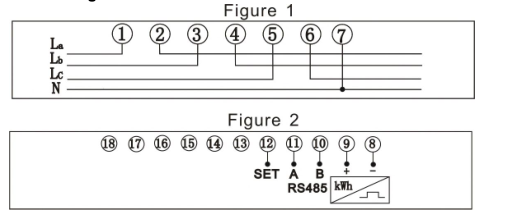

- Connection Diagram
- Meter Dimensions
- Impulse Connection
-
Voltage
3*220/400V
Current
3*1.5(5)A
Frequency
50-60Hz
Accuracy
1.0
Standard
IEC62052-11、IEC62053-21
Starting current
0.004Ib
Consumption
≤8VA ≤0.4Wh
Constant
1200imp/kWh
Installation
Din rail
Temperature
-20～65℃
Humidity
75%
Weight
0.33KG
Size
100*76*65mm
Flashing red:
Impulse indication, width=90ms
-

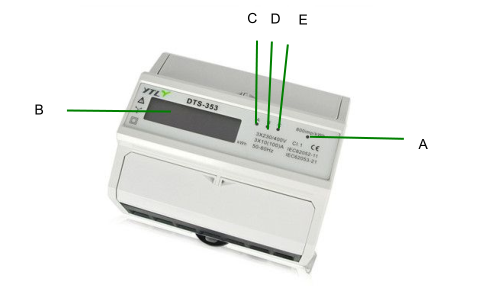

A Impulse indication
B LCD display
C A phase current indication
D B phase current indication
E C phase current indication
Material
Case: ABS、PC、Alloy material
Hook: ABS material -
-
Length:122mm
Width 100mm
Depth 65mm -
Choose 35mm standard Din-Rail ( the length is confirmed by yourself ), fixed them in the location which are waiting for installation
Put the meter into the upper Din-Rail, then push down the clip in the meter bottom, see Fig. 1.After the bottom of the meter install into the Din-Rail successfully, release the clip to make sure the meter have fully installed, see Fig.2 and Fig. 3
