This is a three phase seven module anti-tampering energy meter, which only have kWh measurement.
YTL DTS353 DIN rail 3P seven Wires Multi-tariff CE Certificate Electrical Meter
It is widely used in Sub-metering system.
Three Phase Anti-tamper Suspension Energy Meters Manufacturers
Home / Products / electronic energy meter / YTL company Anti-Tampering Stepper Counter Three Phase Seven Module Energy Meter
D511001
Contact Us
SPEC Download
YTL company Anti-Tampering Stepper Counter Three Phase Seven Module Energy Meter
- TechnicalParameters
- Description

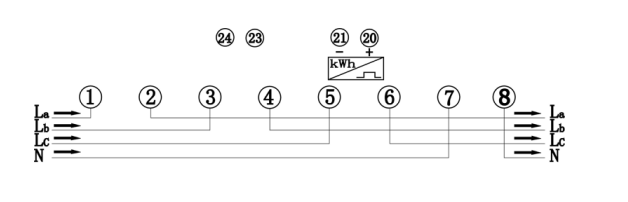

- ConnectlonDiagram
- MeterDimensions
- ImpulseConnection
- det6
-
Voltage:
3*220/380V
Current:
3*5(100) A
Accuracy class:
1.0 Standard:
IEC62052-11, IEC62053-21 Frequency:
50Hz Impulse constant:
8000imp/kWh Display:
Counter 6+1
Temperature range:
-40～80℃ Relative Humidity:
≤95% -
.jpg?imageView2/2/format/jp2)
A Power Indication of Phase A
B Power Indication of Phase B
C Power Indication of Phase C
D Impulse Output
Material
Case Grey flame resistant ABSTerminal cover Grey flame resistant ABS
Base Bottom Grey flame resistant ABS
-
-
Height 115mm
Width 122.5mm
Depth 65mm
Weight 0.5094kg(Net)
-
Take one standard 35mm guide rail (the length is intercepted according to the actual situation) and fix it in the position
where the metering device is to be installed.
Push the clasp at the bottom of the metering device downward, and after it is stuck on the guide rail, the clasp of the metering device is pushed upward again, so that the metering device is completely stuck on the guide. - https://hqcdn.hqsmartcloud.com/ytl-e/2022/07/07/d512122-02d512009-01三相七节lcd表mid规格书20200318.pdf
