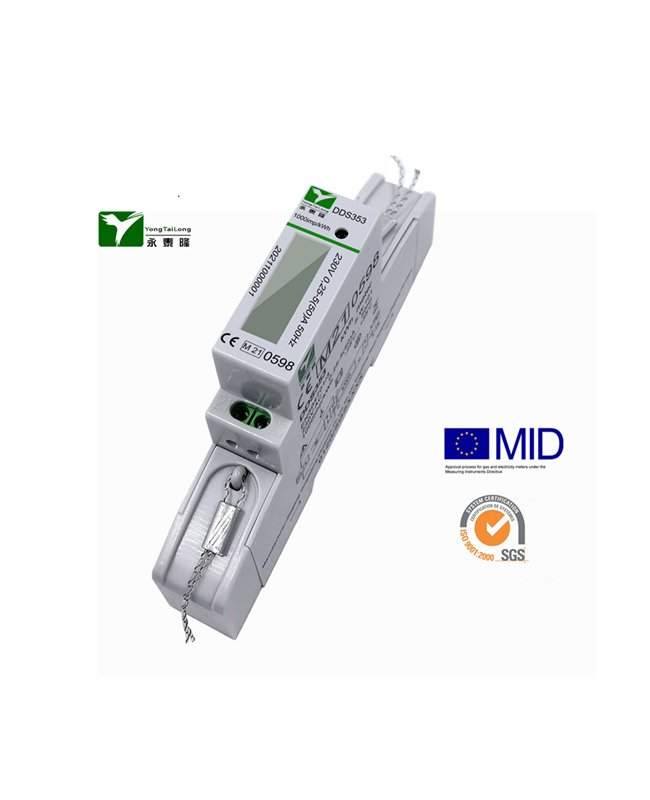

It is a simple single phase one module Din-Rail meter with MID certificate, which only have kWh measurement. It is widely used in Sub-metering system. This meter is very popular in the worldwide for its novel appearance, good quality and reasonable price. Moreover, it is convenient to install with only 0.0728kg and 18mm Width.
YTL DDS353 50A DIN rail din rail Power meter MID Approved PV Energy meter Suppliers
Home / Products / electronic energy meter / YTL DDS353 50A DIN rail din rail Power meter MID Approved PV Energy meter
D112114-MID
Contact Us
SPEC Download

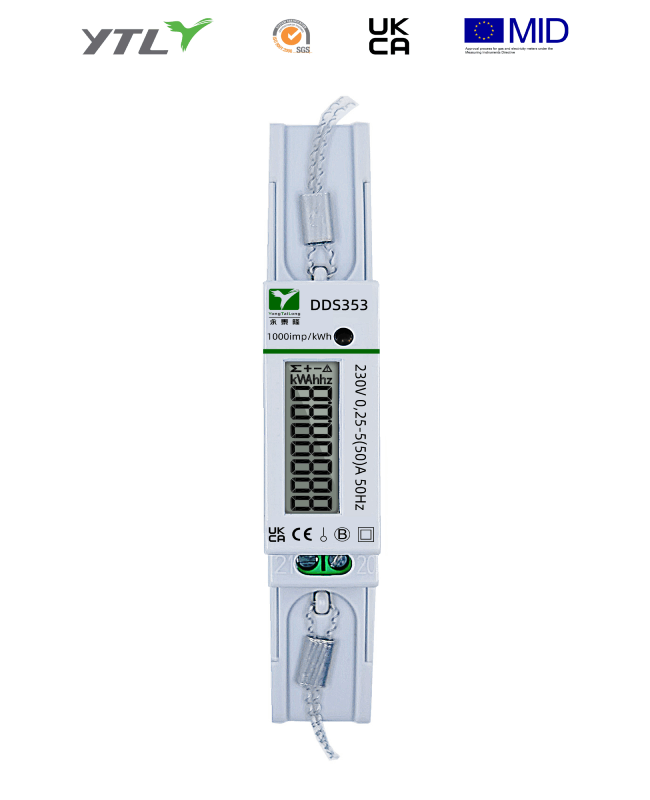

YTL DDS353 50A DIN rail din rail Power meter MID Approved PV Energy meter
- TechnicalParameters
- Description
- ConnectlonDiagram
- MeterDimensions
- ImpulseConnection
- det6
-
Voltage 230V Current 0.25-5(50)A Accuracy class B Standard EN50470-1/3 Frequency 50Hz Impulse constant 1000imp/kWh Display LCD 5+2 = 99999.99kWh Power consumption ≤8VA ≤0.4W Starting current 0.004Ib Temperature range -25～55℃ Average humidity value of year 75% Maximal humidity value 95% Software Version V1.0 -
Material
Case PC+ABS
Terminal cover PC+ABS
Base Bottom PC+ABS
-
.png?imageView2/2/format/jp2)
-
.png)
Height 120mm
Width 18mm
Depth 63mm
Weight 0.0728kg(Net)
-
It requires an experienced electrician or professional to install energy meter, and the user guide shall be completely read;
During the installation process, if the meter case has obvious damage marks caused by a violent impact or fall, please do not install, or power up, and please promptly contact with us;
The energy meter is inspected before leaving the factory and can be installed and used directly; The meter should be installed in an indoor or outdoor meter box.The mounting base shall be fixed on a sturdy and refractory wall without corrosive gas in the air;
The mounting base shall be fixed on a sturdy and refractory wall with no corrosive gas in the air; The meter shall be wired according to the wiring diagram on terminal case, preferably by copper wire or copper wiring head.
- https://hqcdn.hqsmartcloud.com/ytl-e/2022/07/06/dds353hmanual.pdf
