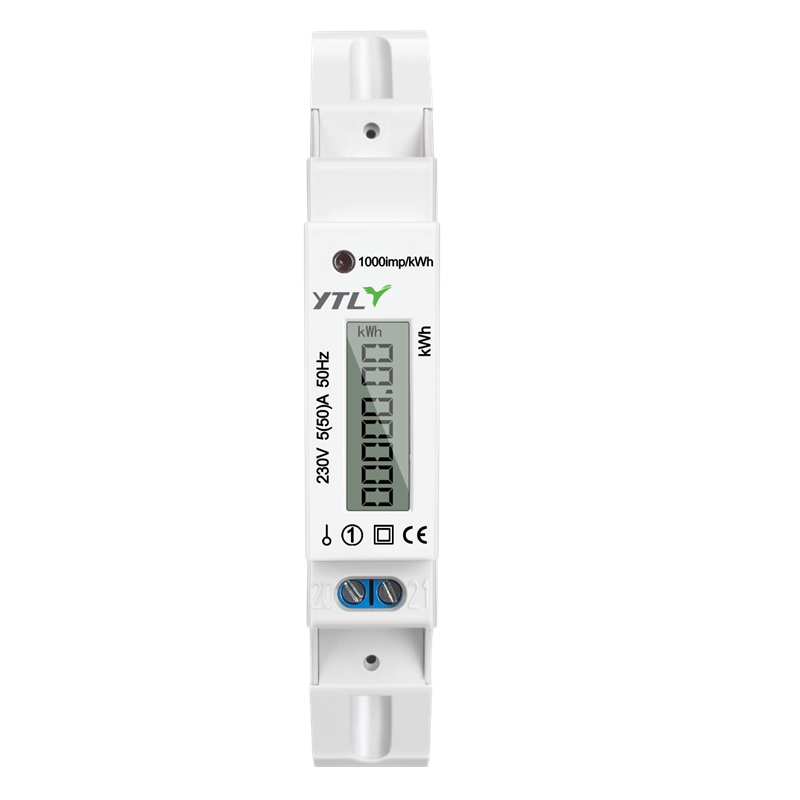

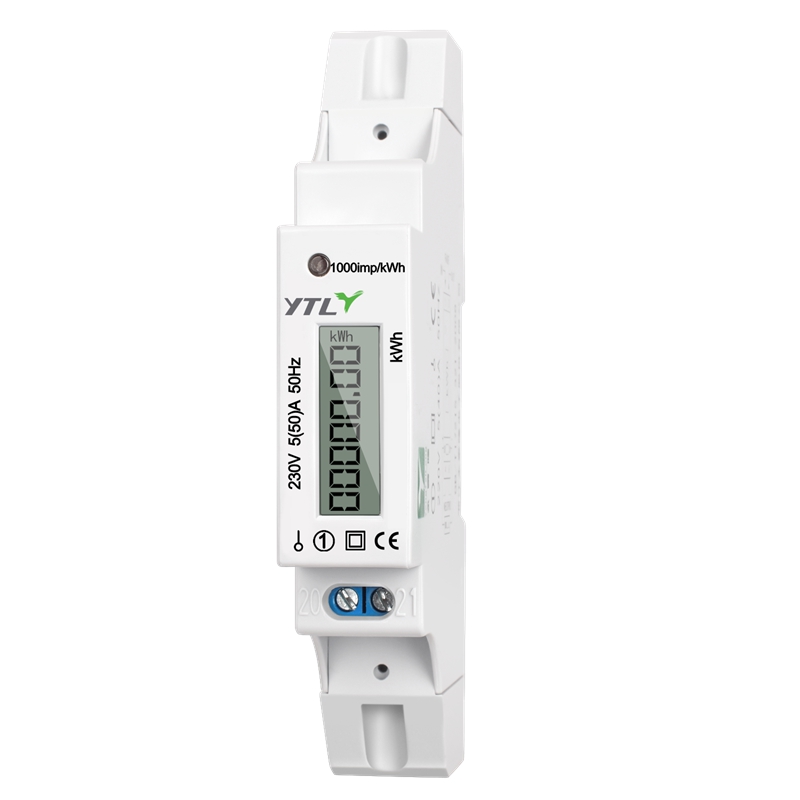

D112112 is a din-rail single-phase electronic active meter ,which complies the the international standards IEC62052-11, IEC 62053-21.It has the characteristics of good reliability, small volume, light weight, beautiful appearance, and easy installation.
More options to meet different requirements from market !
| Voltage | 230V |
| Current | 5(50) A |
| Accuracy class | 1.0 |
| Standard | IEC62052-11,IEC62053-21 |
| Frequency | 50Hz |
| Impulse constant | 1000imp/kWh |
| Display | LCD 5+2 |
| Power consumption max | ≤8VA，≤0.4W |
| Starting current | 0.004Ib |
| Temperature range | -20～65℃ |
| Average humidity value of year | 75% |
| Maximal value | 95% |
● DIN RAIL standard installation size.
● Display current and voltage.
● active energy can be measured.
● Material of Meter housing: ABS fire resistant.
● Degree of Protection: IP51 (indoor meter).
.png?imageView2/2/format/jp2)
 |
Height 63mm Width 18mm Length 118mm |
It requires an experienced electrician or professional to install energy meter, and the user guide shall be completely read;
During the installation process, if the meter case has obvious damage marks caused by a violent impact or fall, please do not install, or power up, and please promptly contact with us;
The energy meter is inspected before leaving the factory and can be installed and used directly; The meter should be installed in an indoor or outdoor meter box.The mounting base shall be fixed on a sturdy and refractory wall without corrosive gas in the air;

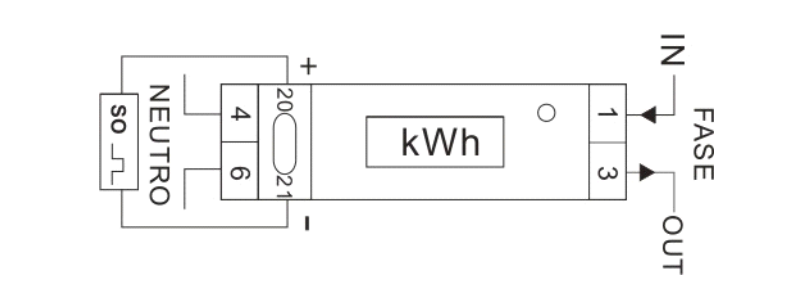

The mounting base shall be fixed on a sturdy and refractory wall with no corrosive gas in the air; The meter shall be wired according to the wiring diagram on terminal case, preferably by copper wire or copper wiring head.
