YTL MAX 50A Din-Rail 1 Phase SO MID kWh energy meter Suppliers
D111031-02-MID
Contact Us
SPEC Download
YTL MAX 50A Din-Rail 1 Phase SO MID kWh energy meter
- TechnicalParameters
- Features
- ConnectlonDiagram
- MeterDimensions
- ImpulseConnection
- det6
-
Voltage 230V +/-20% Current 0,25-5(50)A Accuracy class Class B Standard EN50470-1/3 Frequency 50Hz Impulse constant 1000imp/kWh Display Counter 5+1 = 99999.9kWh Power consumption ≤8VA ≤0.4Wh Starting current 0.004Ib Temperature range -25～55℃ Flashing red Impulse indication Average humidity value of year 75%(Non Condensing) Maximal value 95% -
● DIN RAIL standard installation size.
● Only 18mm wide, can up to 50A.
● Counter display, 99999.9kWh
● Degree of Protection: IP51 (indoor meter).
● Forward measurement only
-
.png?imageView2/2/format/jp2)
-
.png?imageView2/2/format/jp2)

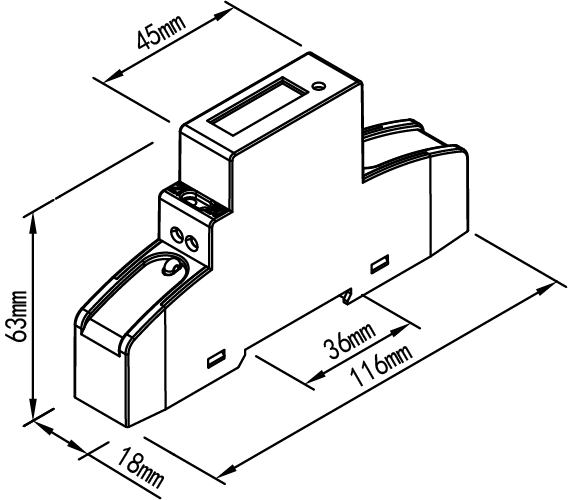

Height 63mm
Width 19mm
Length 116mm
-
It requires an experienced electrician or professional to install energy meter, and the user guide shall be completely read;
During the installation process, if the meter case has obvious damage marks caused by a violent impact or fall, please do not install, or power up, and please promptly contact with us;
The energy meter is inspected before leaving the factory and can be installed and used directly; The meter should be installed in an indoor or outdoor meter box.The mounting base shall be fixed on a sturdy and refractory wall without corrosive gas in the air;

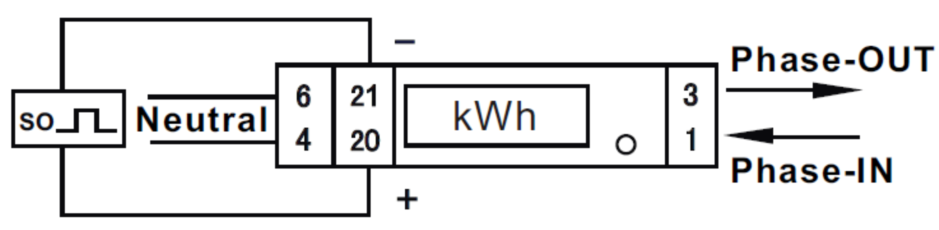

The mounting base shall be fixed on a sturdy and refractory wall with no corrosive gas in the air; The meter shall be wired according to the wiring diagram on terminal case, preferably by copper wire or copper wiring head.
- https://hqcdn.hqsmartcloud.com/ytl-e/2022/10/27/d111031-02单节计数器mid只计正向规格书.doc
