The meter metering mode can be set through RS485 communication, absolute value measurement, algebra and metering, only counting forward, forward and reverse measurement can be set through communication, suitable for various scenarios of applications; If solar power generation is involved, it can be immediately set to algebraic and bidirectional metering modes.
YTL DEM4A 0.25-80A DIN rail Three Phase 4 Model RS485 communication Bi-directional Watt hour meter Suppliers
Home / Products / Applications / MID EV charging / YTL DEM4A 0.25-80A DIN rail Three Phase 4 Model RS485 communication Bi-directional Watt hour meter

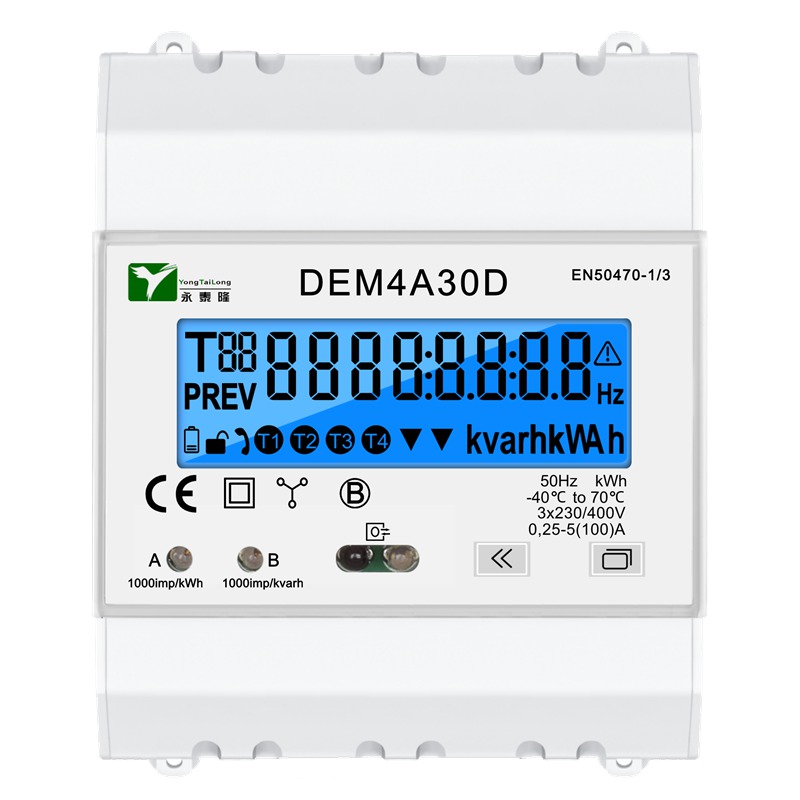

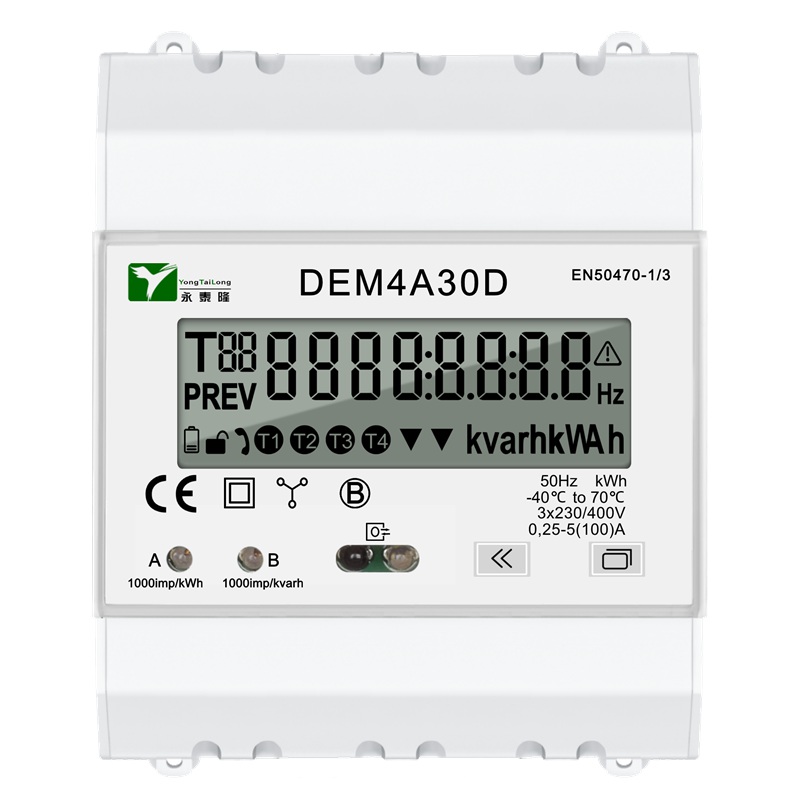

DEM4A30D
Contact Us
SPEC Download
YTL DEM4A 0.25-80A DIN rail Three Phase 4 Model RS485 communication Bi-directional Watt hour meter
- Technical Parameters
- Features
- Description
- det6
-
Content
Parameters
Standard:
IEC 62052-11:2020
IEC 62053-21:2020
Rated Voltage:
3*230(400)V±20%
Rated Current:
5(80)A
Impulse Constant:
1000imp/kWh(LED)
1000imp/kvarh(LED)
Frequency:
50Hz
Accuracy Class:
Active power 1.0
Reactive power 2.0
LCD Display:
LCD 6+2
Working Temperature:
-40～70℃
Storage Temperature:
-40~70℃
Power Consumption:
<1W / <10VA
Average Humidity:
≤75% (Non Condensing)
Maximum Humidity:
≤95%
Start Current:
0.4%Ib
Case Protection
IP51 indoor
-
DEM4A00D: IR + M-BUS +2 SO output (variable constant)with different measurements ,wiring from bottom to top
DEM4A10D: IR+ M-BUS+2 SO output (variable constant)+ Multi-tariff function,with different measurements
DEM4A20D: IR + M-BUS+1 SO output (variable constant)+1 Signal input port,with different measurements
DEM4A30D: IR+ M-BUS+1 SO output (variable constant)+1 Signal input port+ Multi-tariff function,with different measurements
-
l can measure a variety of instantaneous parameters: voltage, current, active power, reactive power, apparent power, frequency, power factor (pf), total demand and total demand of reactive power, total active reactive power demand maximum demand, total amount
l supports a variety of power parameter measurement: the total power, ABC three-phase power, reactive power four quadrant power, can reset the power, power combination code, etc.
l support active reactive power direction measurement.
l LCD backlight display, data scrolling display, you can manually turn the page through the button.
l support the M - BUS communication, able to read and setting up the instrument parameters.
l electric strap touch button, support page flip back and forth and long press to enter other level
