STS prepaid standard meter is a media-free prepaid meter, which does not need to be recharged with IC card, magnetic card, radio frequency card, etc., and only needs to be recharged by entering the 20-digit code through the keyboard; It can also be used for power recharge, data viewing, and control management through remote communication.
YTL STS Prepaid Wi-Fine Energy Meter Single Phase Wall Mounted ODM Suppliers
Home / Products / multi-function energy meter / YTL STS Prepaid Wi-Fine Energy Meter Single Phase Wall Mounted ODM
.png?imageView2/2/format/jp2)
D123073-Wi-Fine
Contact Us
SPEC Download

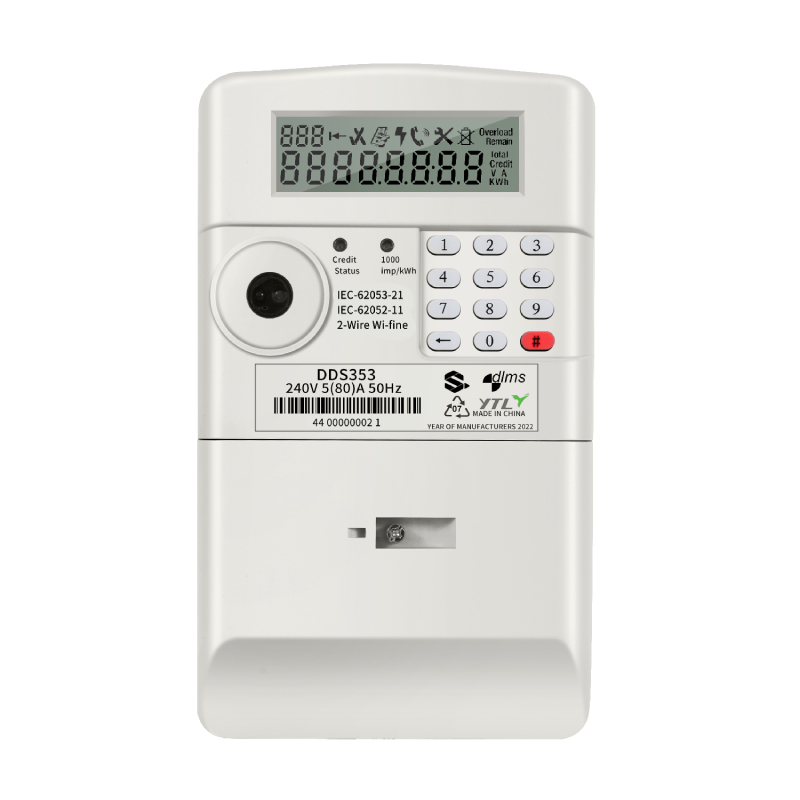

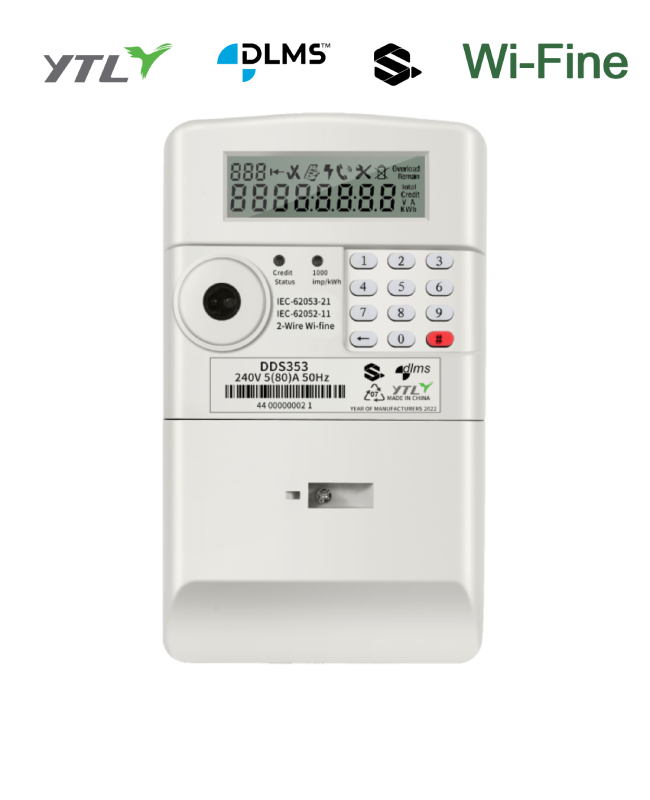

YTL STS Prepaid Wi-Fine Energy Meter Single Phase Wall Mounted ODM
- TechnicalParameters
- ConnectlonDiagram
- Description
- det6
-
Rated voltage 230V Rated current 5(80) A Constant 1000imp/kWh Display LCD 6+2 Relative humidity ≤85% Rated frequency 50Hz Accuracy degree 1 Power consumption 0.96W/2.524VA Standard Functional test IEC62052-11:2003 Impulse output IEC62053-21:2003 Protection degree IP51 Communication protocol DLMS -

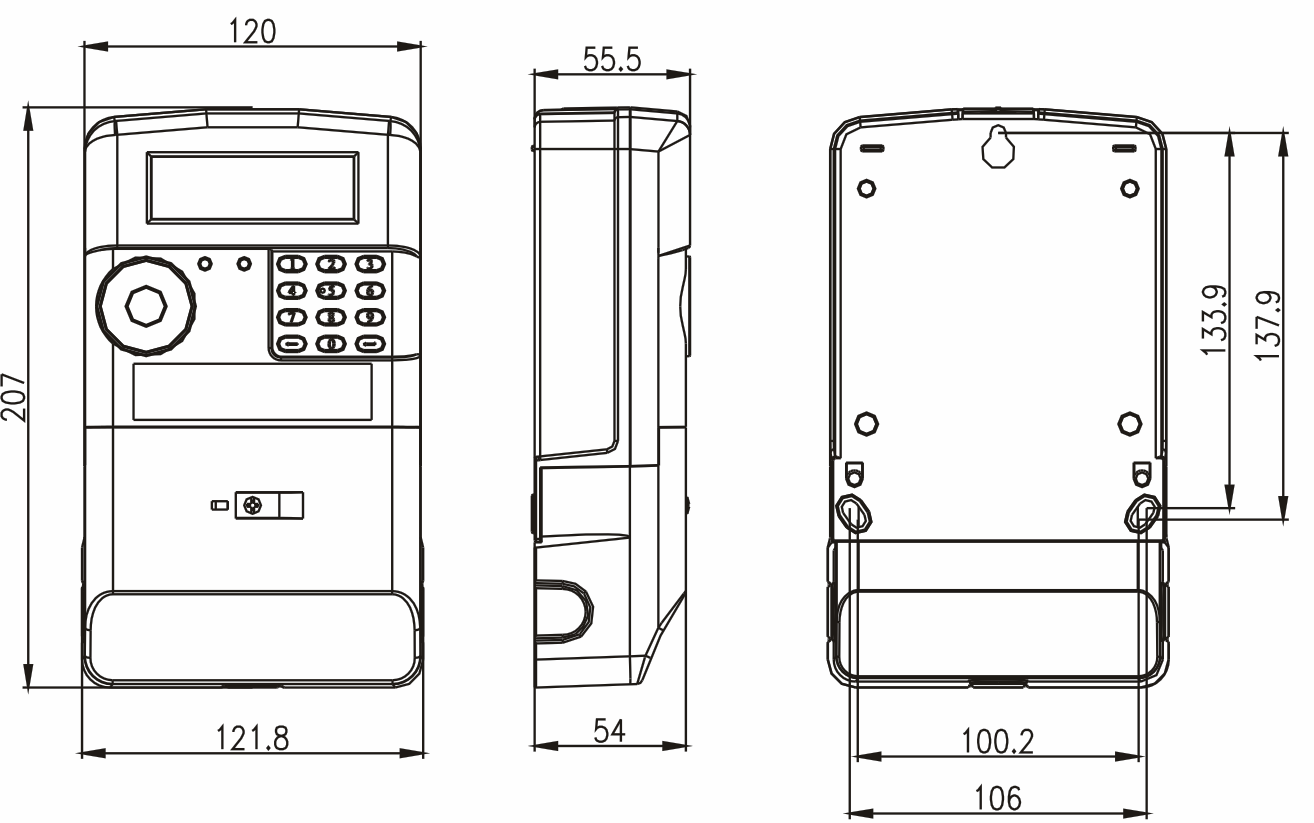

Dimension
Height: 207mm
Width: 121.8mm
Depth: 55.5mm
.png?imageView2/2/format/jp2)
-
A Credit status
B Constant
C Seal
D LCD display
Material
Case: PC
-
https://hqcdn.hqsmartcloud.com/ytl-e/2022/11/01/d123073单相两线多功能wifineirlcd表规格书.pdf
-1.jpg?imageView2/2/w/500/h/500/format/png/q/100)
.jpg?imageView2/2/w/500/h/500/format/png/q/100)
.jpg?imageView2/2/w/500/h/500/format/png/q/100)
.jpg?imageView2/2/w/500/h/500/format/png/q/100)
