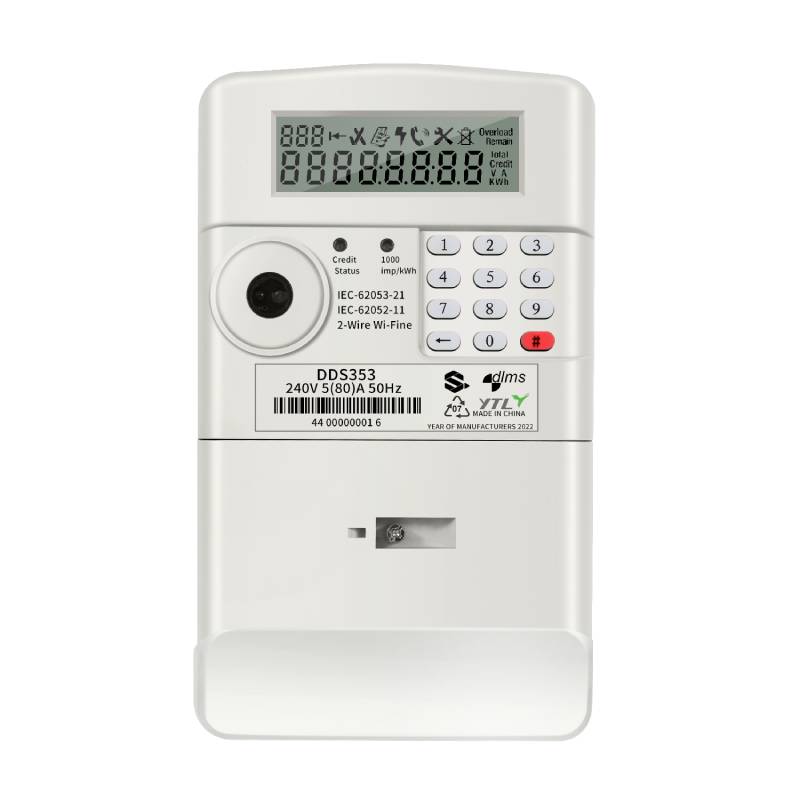

This is an anti-tamper meter with wireless communication Wi-Fine 433MHz and Bluebooth . communication. It has various of events alerting functions including kWh remote reading, electricity using remote management and tampering, provides customers a convenient remote reading method. This meter is favored by customers with the features of high accuracy, wide measuring range, various anti-tampering functions and competitive cost performance.
Keypad STS Popular In Africa Single Phase Prepaid IEC electricity meter Company
Home / Products / multi-function energy meter / Keypad STS Popular In Africa Single Phase Prepaid IEC electricity meter
D123092-Wifine
Contact Us
SPEC Download
Keypad STS Popular In Africa Single Phase Prepaid IEC electricity meter
- Features
- det6
-
Communication with IHD:
It can communicate with the X899001 handheld Bluetooth display to realize the matching and recharge function. The distance can be 50meters.
Anti-tampering
Support load ground connection, switch detection, influence of external magnetic field, abnormal voltage record.
Anti-tamper when Neutral missing:when Neutral missing, the meter still can work（battery support）
Tariff
Divide into weekday timetable and weekend timetable, with 8 time period and 8 tariffs. Every timetable has a backup table for remote updating of backup timetable and configure the switching time. Meter will automatically switch the tariff table at the switching time.
Communication
Meter support IR,RS485/LoRa, baud-rate: 9600/PLC, baud-rate: 4800.
Event
Open cover, magnetic field, load ground connection, reserve current, over-voltage, low-voltage, low-frequency, overload, power-fail, low remaining power, and token record.
Measurement
Meter measures voltage, current, active power, reactive power, frequency, power factor, MD in the current month, MD of last 1 month, MD of last 2 month, the absolute value of total active energy, the absolute value of total active tariff energy, total input energy of the current month, total input energy of last 5 month, total output energy of the current month, total output energy of last 5 month, and total reactive energy.
Mode
Meter has 3 operation modes: STS token mode, currency prepaid mode and post-paid (traditional) mode, which can be switched.
And the currency mode can be divided into tariff mode and step price mode. Modes can be configured through communication.
STS operation
Enter 20-digit token via keypad of meter or IHD, the meter display will be green Pic 1 if recharging is successful, will be red Pic 2 if is failed.
