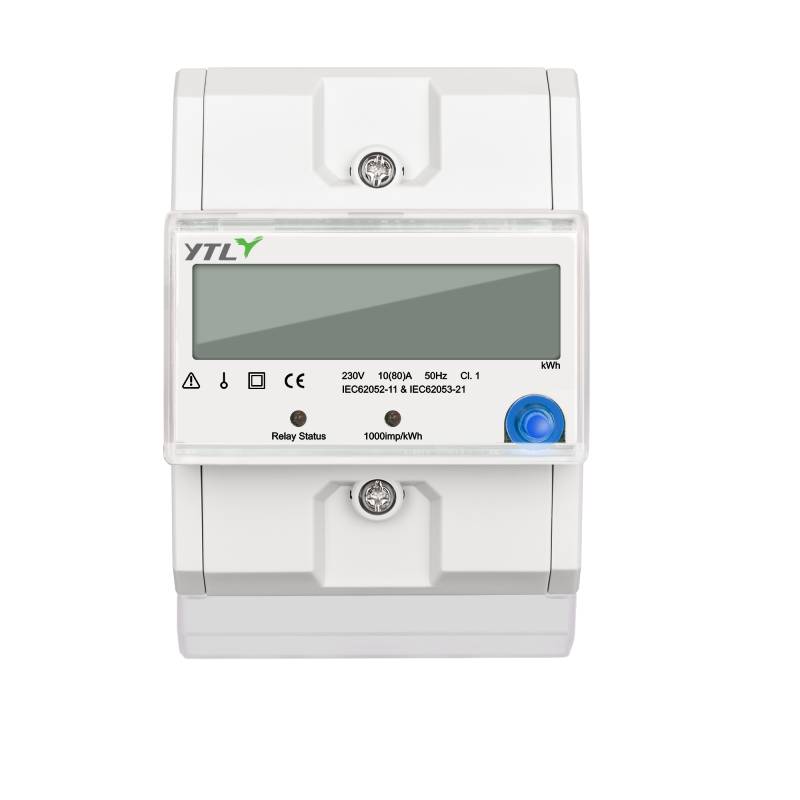

Single phase two wire smart energy meter,which has 4 sections din rail installation and with RS485 & RF two communication methods. Adopt DTL645 protocol， RF communication can be connected to IHD(in door display).This meter has built-in high-quality magnetic holding relay to realize overload protection function, and load power exceeds the threshold and automatically cuts off the load power.
YTL single phase with communication RS485 electricity meter Protocol for RS485 is DTL645 Suppliers
Home / Products / multi-function energy meter / YTL single phase with communication RS485 electricity meter Protocol for RS485 is DTL645
.png?imageView2/2/format/jp2)
D119019
Contact Us
SPEC Download
YTL single phase with communication RS485 electricity meter Protocol for RS485 is DTL645
- Technical Parameters
- Features

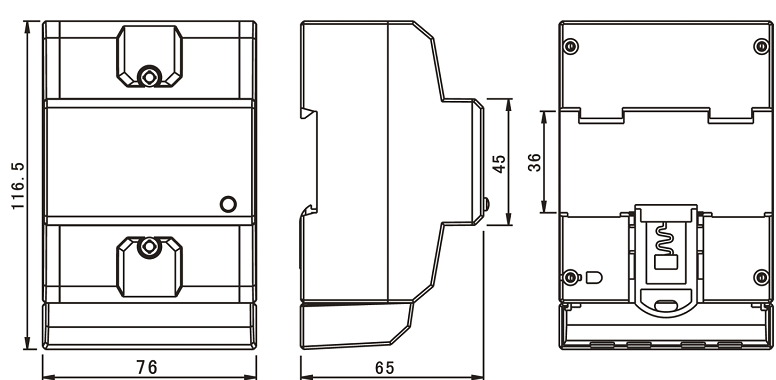

- Meter Dimensions

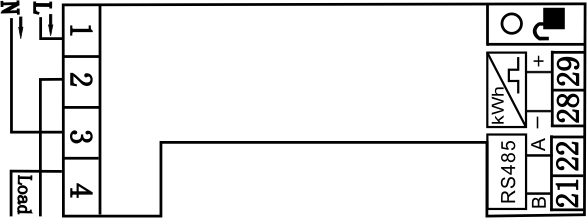

- Diagram for installation
- det6
-
Voltage 120V Current 10(80) A Impulse constant 1600imp/kWh Display LCD 6+2 Operating temperature -20—45℃ Storage temperature -25—70℃ relative humidity ≤75% Frequency 50Hz Accuracy class 1.0 s Starting current 0.4%Ib(1.0s) Power consumption Voltage circuit Un <2W / <10VA @ Un Current circuit In <2.5 VA @ (Ib) -
●LCD display show voltage, current, power, and kWh.
●Measuring total energy consumption, support both active and reactive energy measurement.
●Meter with inside relay 80A which support on and off function through communication program
●Meter support both RF and RS485 communication, protocol for RS485 is DTL645, protocol for RF is self defined.
RS485 communication: baud rate 9600 (fixed), eight data bits, even parity check, one stop bit
RF communication: baud rate 9600 (fixed), eight data bits, without parity check, one stop bit
●RF only used for communication with IHD (in home display)
●address for in home display and meter should corresponding and same
●It can received meter returned data when press ”SEND” on IHD
●IHD will ask meter every 1 minute for get data in case of with power supply
-
.png?imageView2/2/format/jp2)
-
.png?imageView2/2/format/jp2)
- https://hqcdn.hqsmartcloud.com/ytl-e/2022/10/31/d119019单相四节rs485和rf通讯模数表规格书.doc
