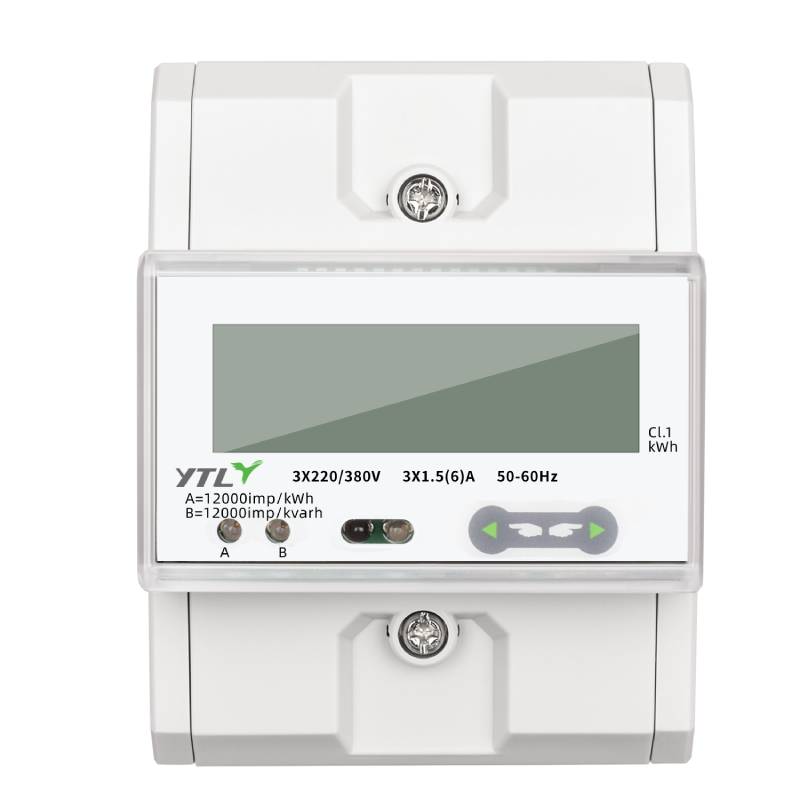

This is a Din rail installation three phase multi-function energy meter, using LCD display, designed with two touch buttons, through which the page can be turned to display all kinds of electricity data. The CT ratio can be set by RS485 communication or buttons, and the CT ratio can be set to a maximum of 7500:5
YTL Three Phase Energy Meter four Wire with CT ratio and RS485 for EV charging Suppliers
Home / Products / multi-function energy meter / YTL Three Phase Energy Meter four Wire with CT ratio and RS485 for EV charging
D519025
Contact Us
SPEC Download
YTL Three Phase Energy Meter four Wire with CT ratio and RS485 for EV charging
- Technical Parameters
- Features

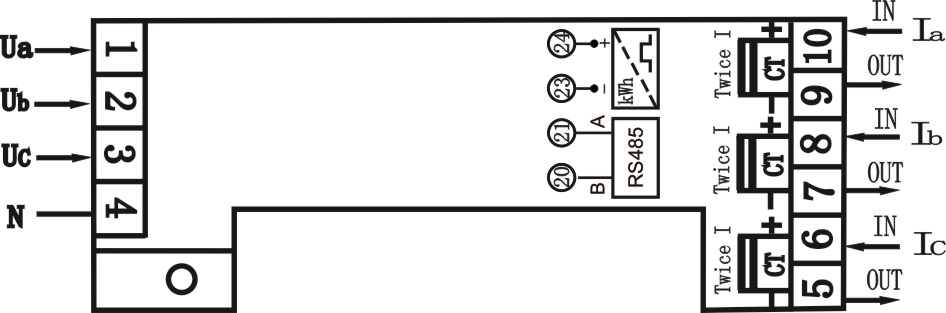

- Connection Diagram
- det6
-
Voltage 3*230/400V Current 1.5(6)A Accuracy class Class B / Active 1.0 Standard IEC62052-11, IEC62053-21 Frequency 50-60Hz Impulse constant 12000imp/kWh Display LCD 5+3(changed by CT ratio) Starting current 0.002Ib Temperature range -20～70℃ Average humidity value of year 85% -
Measurement function
● It has three phase active/reactive energy, positive and negative measurement, four tariffs.
● It can be set three measurement modes according to the synthesis code.
● CT setting: 5:5—7500:5 CT ratio.
● Maximum demand calculation.
● Touch button for scrolling pages.
● Holiday Tariff and Weekend Tariff Setting.
Communication
● It supports IR(near infrared) and RS485 communication. IR complies with IEC 62056 (IEC1107) protocol, and RS485 communication use the MODBUS protocol.
● It can display the total energy, tariff energy, three phase voltage, three phase current, total/three phase power, total/three phase apparent power, total/three phase power factor, frequency, CT ratio, pulse output, communication address, and so on(details please see the display instruction).
Button
●The meter has two buttons, it can be displayed all the contents by pressing the buttons. Meanwhile, by pressing the buttons, the meter can be set the CT ratio, LCD scroll display time.
●It can be set the automatic display contents through IR.
Pulse output
●Set 12000/1200/120/12, total four pulse output modes by communication.
-
.png?imageView2/2/format/jp2)
- https://hqcdn.hqsmartcloud.com/ytl-e/2022/10/31/d519025三相四节多功能互感式表规格书.pdf
