The single-phase two-wire prepayment meter meets the STS Association of South Africa's product standardsviews and recharges the data through communication with indoor display.
YTL prepaid meter 240V Split Type 1 Phase 2 module quadruple tariffs Smart keypad prepaid
240V STS prepayment Smart Meter with PLC IHD Suppliers
Home / Products / electronic energy meter / Single phase electronic energy meter / 240V STS prepayment Smart Meter with PLC IHD

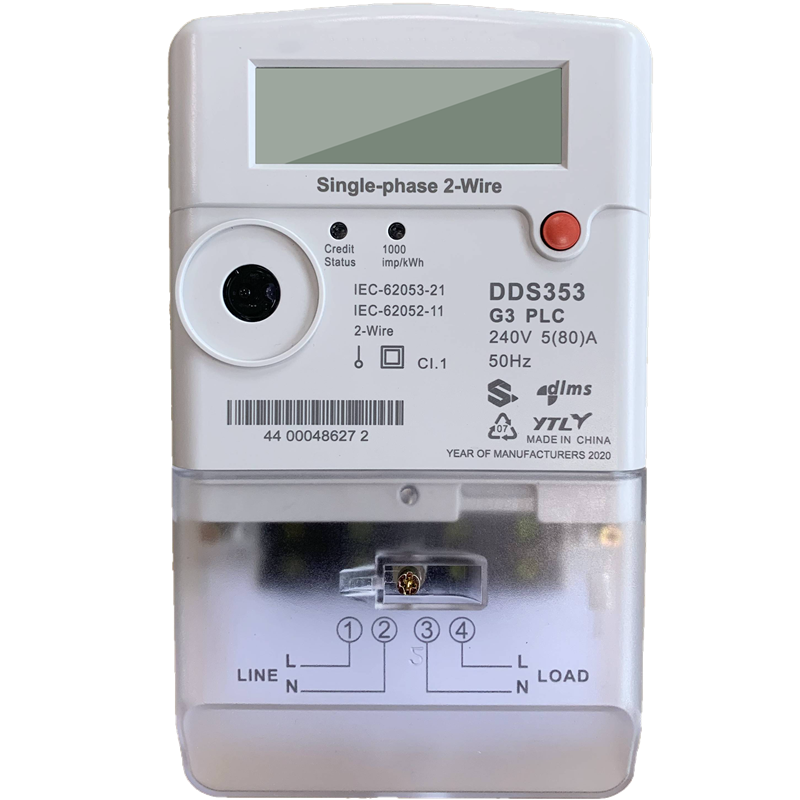

240V STS prepayment Smart Meter with PLC IHD
- Features
- Technical Parameters
- Meter Dimensions
- det6
-
Anti-tampering
Support load ground connection, switch detection, influence of external magnetic field, abnormal
voltage record.
Tariff
Divide into weekday timetable and weekend timetable, with 8 time period and 8 tariffs. Every
timetable has a backup table for remote updating of backup timetable and configure the switching
time. Meter will automatically switch the tariff table at the switching time.
Communication
Meter support IR,RS485/LoRa, baud-rate: 9600/PLC, baud-rate: 4800.
Event
Open cover, magnetic field, load ground connection, reserve current, over-voltage, low-voltage,
low-frequency, overload, power-fail, low remaining power, and token record.
Measurement
Meter measures voltage, current, active power, reactive power, frequency, power factor, MD in the
current month, MD of last 1 month, MD of last 2 month, the absolute value of total active energy,
the absolute value of total active tariff energy, total input energy of the current month, total input
energy of last 5 month, total output energy of the current month, total output energy of last 5
month, and total reactive energy.2
Mode
Meter has 3 operation modes: STS token mode, currency prepaid mode and post-paid (traditional)
mode, which can be switched.
And the currency mode can be divided into tariff mode and step price mode. Modes can be
configured through communication.
STS operation

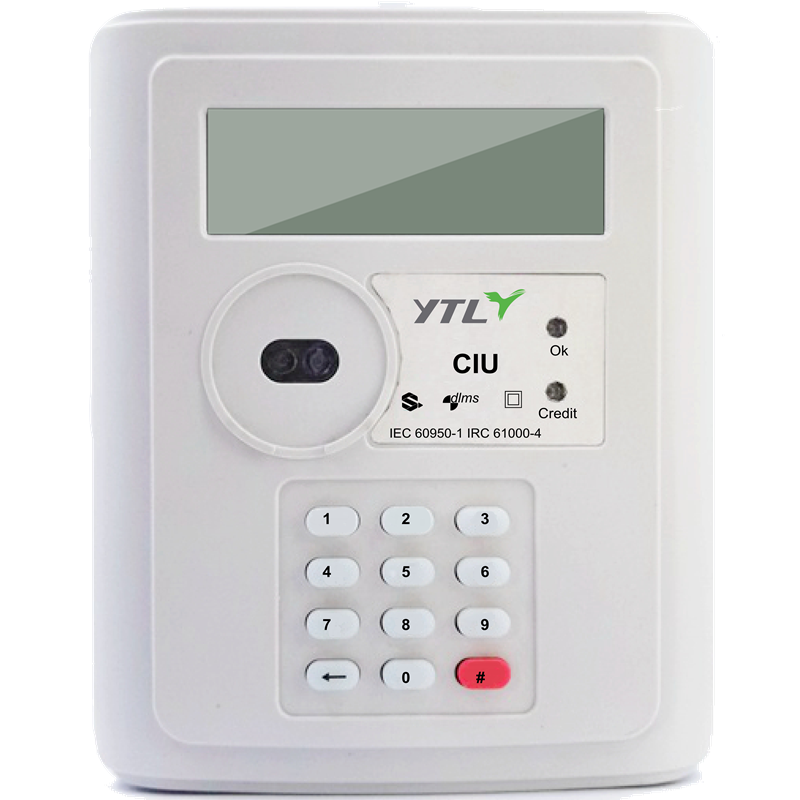

Enter 20-digit token via keypad of meter or IHD, the meter display will be green Pic 1 if recharging
is successful, will be red Pic 2 if is failed.
-
Voltage:240V
Current:5(80) A
Accuracy class:1.0
Standard:IEC62052-11 2003, IEC62053-21 2003
Communication protocol:DLMS/COSEM(IEC62056)
Frequency:50Hz
Impulse constant:1000imp/kWh
Display:LCD 6+2 = 999999.99kW
Power consumption:<10VA/2W
Starting current:40mA
Working temperature:-20℃~70℃
Limit working temperature:-30℃~80℃
Working humidity:<95%
-
Material
Case: PC
Dimension
Height: 207mm
Width: 121.8mm
Depth: 55.5mm
-
https://hqcdn.hqsmartcloud.com/ytl-e/2022/07/06/d123073单相两线多功能lcd表规格书.pdf
.jpg?imageView2/2/w/500/h/500/format/png/q/100)
