YTL Prepaid Meter 50Hz Smart DIN Rail 1P 2 model Multifunction kWh Meter Suppliers
Home / Products / Applications / STS prepaid meter / YTL Prepaid Meter 50Hz Smart DIN Rail 1P 2 model Multifunction kWh Meter
K212-03-PLC
Prepaid electric energy meter is also called quantitative energy meter, in addition to the measurement function of ordinary electric energy meter, especially the user first buy electricity, buy electricity before using electricity, if the user does not continue to buy electricity after using electricity, it will automatically cut off the power supply to stop the power supply, effectively solving the problem of charging difficulty.
Contact Us
SPEC Download

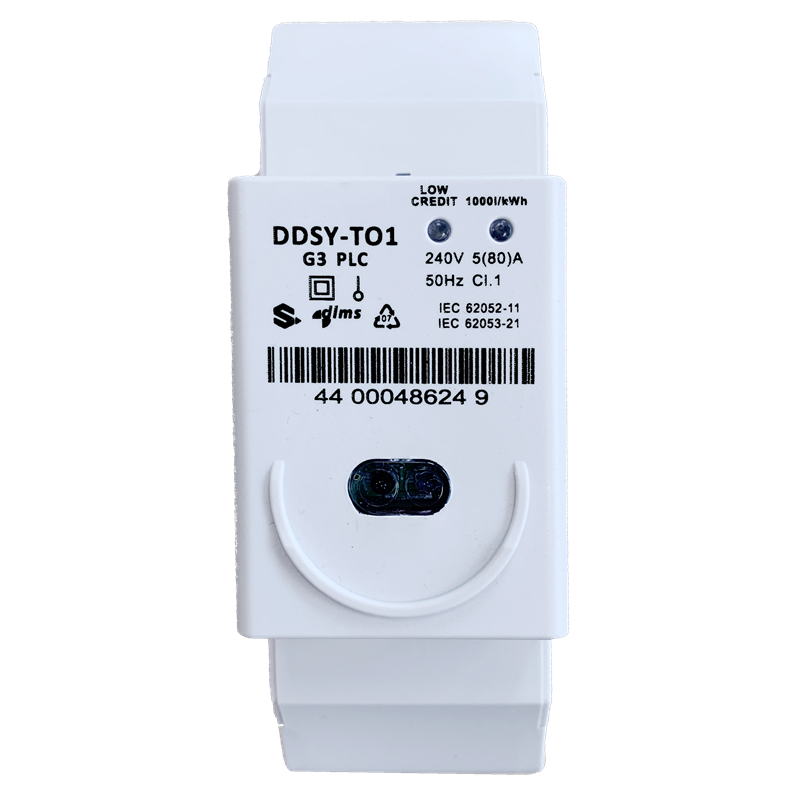

YTL Prepaid Meter 50Hz Smart DIN Rail 1P 2 model Multifunction kWh Meter
Prepaid electric energy meter is also called quantitative energy meter, in addition to the measurement function of ordinary electric energy meter, especially the user first buy electricity, buy electricity before using electricity, if the user does not continue to buy electricity after using electricity, it will automatically cut off the power supply to stop the power supply, effectively solving the problem of charging difficulty.
- Type
- Features
- Technical Parameters
- Material
- Meter Dimensions
- det6
-
Type Communication CIU Communication Function
K212-01-PLC PLC / Active , Reactive measurement K212-02-PLC PLC / Build in Relay, Shunt sampling K212-03-PLC PLC / Build in Relay, Shunt sampling，
Neutral measurementK212-04-PLC PLC / Build in Relay, Shunt sampling,
Neutral measurement,Tariff,Event alarmK212-05-PLC PLC PLC/Bluetooth Build in Relay, Shunt sampling,
Neutral measurement,Tariff,Event alarmK212-06-RS485 RS485 / Active , Reactive measurement K212-07-RS485 RS485 / Build in Relay, Shunt sampling,
Neutral measurement,Tariff,Event alarmK212-08-Wifine Wifine Twisted Pair wire/RS485/RF Different measurements way,
Neutral measurement,Event alarmK212-09-Wifine Wifine Bluetooth Different measurements way,
Neutral measurement,Event alarmK212-10-Wifine Wifine Wifine/Bluetooth Different measurements way,
Neutral measurement,Event alarmK212-11-Wifine Wifine Bluetooth Build in Relay, Event alarm -
Features
- With with G3 PLC communication
- Maximum current isup to 80A.
- with buzzer inside, it will beep when low credit for 5 seconds, and you could press any key to turn it off. Also you could configure to enable or disable this buzzer function by IR communication.
- Support load ground connection, switch detection, influence of external magnetic field, abnormal voltage record.
- Divide into weekday timetable and weekend timetable, with 8 time period and 4tariffs. Every timetable has a backup table for remote updating of backup timetable and configure the switching time. Meter will automatically switch the tariff table at the switching time.
- Meter measures voltage, current, active power, reactive power, frequency, power factor, MD in the current month, MD of last 1 month, MD of last 2 month, the absolute value of total active energy, the absolute value of total active tariff energy, total input energy of the current month, total input energy of last 5 month, total output energy of the current month, total output energy of last 5 month, and total reactive energy.
- Degree of Protection: IP51 (indoor meter).
-
Voltage: 230V
Current: 5(80) A
Accuracy class: 1.0
Standard: IEC62052-11, IEC62053-21, IEC62055-41
Frequency: 50Hz
Impulse constant: 1000imp/kWh
Display: Without LCD
Power consumption: <10VA/2W
Starting current: 0.004Ib
Temperature range: -20～70℃
Flashing red: Impulse indication, width=80ms±20ms
Average humidity value of year: 75%
Maximal value: 95%
-
Cover: PBT+15%GF
Base: PBT+15%GF
Terminal cover: PBT+15%GF
Hook: ABS -
Height 141.6mm
Width 49mm
Depth 87mm
- https://hqcdn.hqsmartcloud.com/ytl-e/2022/07/06/d114046&x829001sinlgephasekeypadsplitmeter20200813.pdf
