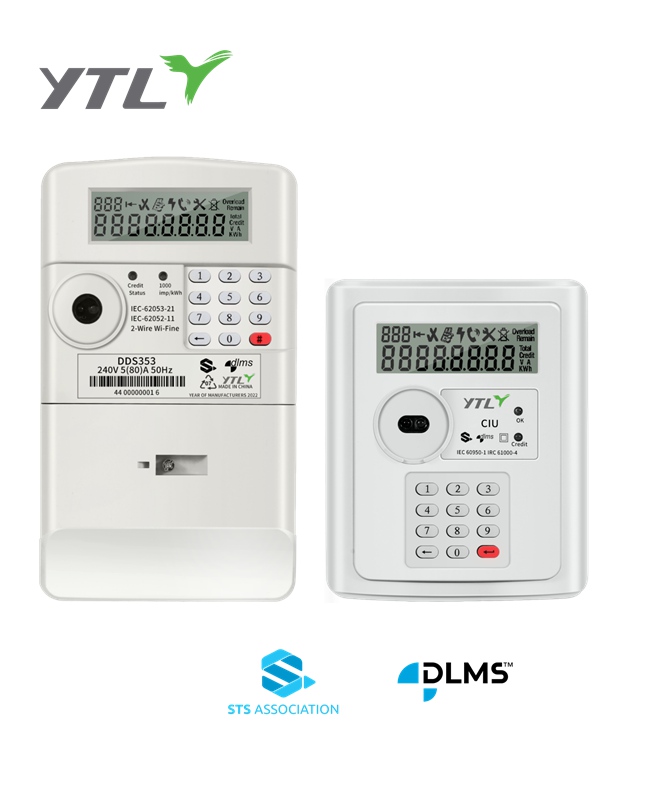

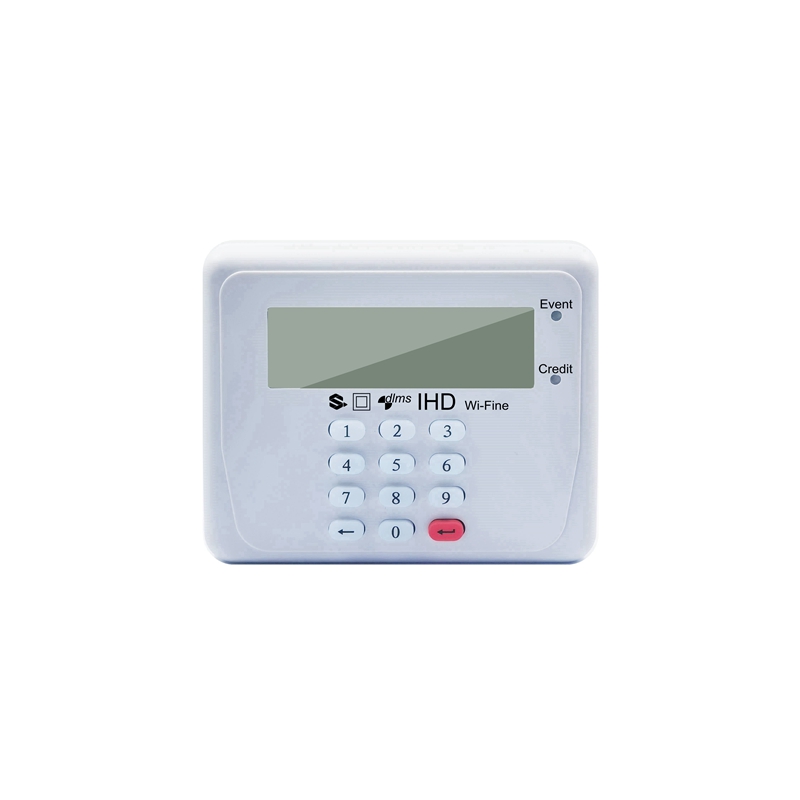

The single-phase STS prepaid suspended energy meter is equipped with an indoor display.and the meter is connected to the indoor display through M-Bus communication.so that users can check the electricity consumption data or buy electricity and recharge at home at any time,with strong real-time data. In addition the meter can be installed in a safer place to prevent electricity tamper.
YTL Prepaid Meter Split Type 1P 2W Smart AMI Power Meter Suppliers
Home / Products / Applications / STS prepaid meter / YTL Prepaid Meter Split Type 1P 2W Smart AMI Power Meter
- Type
- Features
- Technical Parameters
- Description of Functions
- Meter Dimensions
- det6
-
Type Communication CIU Communication Function
K019-01-IR IR / Build in Rely,Shunt sampling,
1 Tariff,Event alarmK019-02-PLC PLC / Remote upgrades K019-03-PLC PLC / Absolute measurement K019-04-PLC PLC / Different measurements way,
Absolute measurementK019-05-PLC PLC / Build in Rely,Absolute measurement,
self diagnosis,Open cover detectionK019-06-RS485 RS485/Twisted Pair wire / Active , Reactive measurement K019-07-RS485 RS485/Twisted Pair wire / Build in Rely,Absolute measurement,
self diagnosis,Event alarmK019-08-Wifine Wifine / Different measurements way,Neutral
measurement,Absolute measurement,
Event record,Anti-tamper,Build in Rely,
4 TariffK019-09-Wifine Wifine Wifine Different measurements way,Neutral
measurement,Absolute measurement,
Event record,Anti-tamper,Build in Rely,
8 Tariff,Load profileK019-10-Wifine Wifine Wifine/ Bluetooth Different measurements way,Neutral
measurement,Absolute measurement,
Event record,Anti-tamper,Build in Rely,
8 Tariff,Load profile -
- Remote reading by RS485communication;
- User can manage meter efficiently by IR communication;
- Various anti-tampering methods;
-
Rated voltage: 230V
Rated current: 5(80) A
Constant: 1000imp/kWh
Display: LCD 6+2
Relative humidity: ≤85%
Rated frequency: 50Hz
Accuracy degree: Class B / Active 1.0
Power consumption: 0.96W/2.524VA
Standard:
Functional test: IEC62052-11:2003
Impulse output: IEC62053-21:2003
Protection degree: IP51
Communication protocol: DLMS
-
Tampering Protection Function:
1 bypass power detection, record events and LED alarm.
2 open terminal cover detection, LCD alarm display and record the event.
3 record external magnetic field event.
4 record over voltage and low voltage event.
5 self-diagnostic: EEPROM check, battery alarm.
display details:
Total active energy power, voltage effective value, current effective value, average active energy on second, current date, current time.
communication:
- RS485 communication, used for remote reading, remote controlling and local reading.
- IR communication, used for local setting and reading.
- M-BUS communication, used for reading and controlling the water meter.
events details:
Over voltage, low voltage, bypass, current reverse, power off, open terminal cover.
measurement:
Single phase active energy measurement, keep records of power, average active energy on second, voltage effective value, current effective value, demand.
-
Material
Case: PC
Dimension
Height: 207mm
Width: 121.8mm
Depth: 55.5mm
