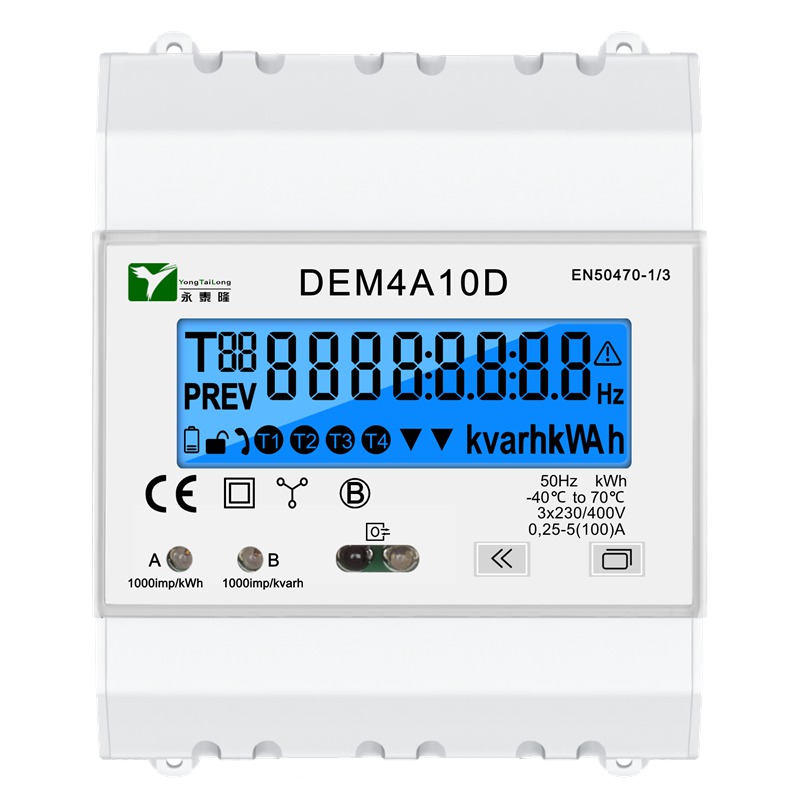

equipped with backlight to facilitate nighttime viewing of electricity consumption data.RS485 communication baud rate can be set up to 115200bps, communication protocol Mbus-RTU.
YTL DEM4A 0.5-100A DIN rail 3 Phase Four Wires Bi-directional Mbus Sub kWh meter Suppliers
Home / Products / smart meter / three phase smart meter / YTL DEM4A 0.5-100A DIN rail 3 Phase Four Wires Bi-directional Mbus Sub kWh meter

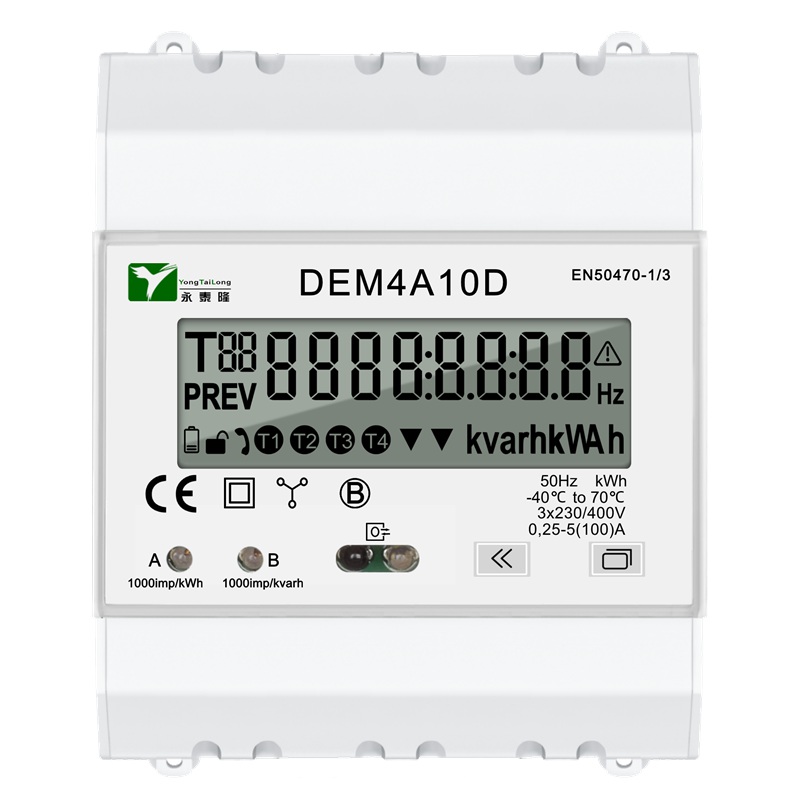

DEM4A10D
Contact Us
SPEC Download
YTL DEM4A 0.5-100A DIN rail 3 Phase Four Wires Bi-directional Mbus Sub kWh meter
- Technical Parameters
- Features
- Description
- det6
-
Content
Parameters
Standard:
IEC 62052-11:2020
IEC 62053-21:2020
Rated Voltage:
3*230(400)V±20%
Rated Current:
5(80)A
Impulse Constant:
1000imp/kWh(LED)
1000imp/kvarh(LED)
Frequency:
50Hz
Accuracy Class:
Active power 1.0
Reactive power 2.0
LCD Display:
LCD 6+2
Working Temperature:
-40～70℃
Storage Temperature:
-40~70℃
Power Consumption:
<1W / <10VA
Average Humidity:
≤75% (Non Condensing)
Maximum Humidity:
≤95%
Start Current:
0.4%Ib
Case Protection
IP51 indoor
-
DEM4A00D: IR + M-BUS +2 SO output (variable constant)with different measurements ,wiring from bottom to top
DEM4A10D: IR+ M-BUS+2 SO output (variable constant)+ Multi-tariff function,with different measurements
DEM4A20D: IR + M-BUS+1 SO output (variable constant)+1 Signal input port,with different measurements
DEM4A30D: IR+ M-BUS+1 SO output (variable constant)+1 Signal input port+ Multi-tariff function,with different measurements
-
l can measure a variety of instantaneous parameters: voltage, current, active power, reactive power, apparent power, frequency, power factor (pf), total demand and total demand of reactive power, total active reactive power demand maximum demand, total amount
l supports a variety of power parameter measurement: the total power, ABC three-phase power, reactive power four quadrant power, can reset the power, power combination code, etc.
l support active reactive power direction measurement.
l LCD backlight display, data scrolling display, you can manually turn the page through the button.
l support the M - BUS communication, able to read and setting up the instrument parameters.
l electric strap touch button, support page flip back and forth and long press to enter other level
- https://hqcdn.hqsmartcloud.com/ytl-e/2022/07/06/dem4aseries.pdf
