Prepaid Electricity Meter with functions, Prepaid,Active,Reactive measurement,multi anti-tamper,Load profile,Shunt,sampling,Event record,4 Tariff
The overall case is made of flame-retardant PC material, which has strong weather resistance. There are up and down page-turning buttons on the cover, which is convenient for viewing various power consumption data, and the backlight can be turned on for data viewing in the dark. RS485, G3 PLC, WiFine and other communications can be selected to connect to the indoor display and carry out remote data transmission.

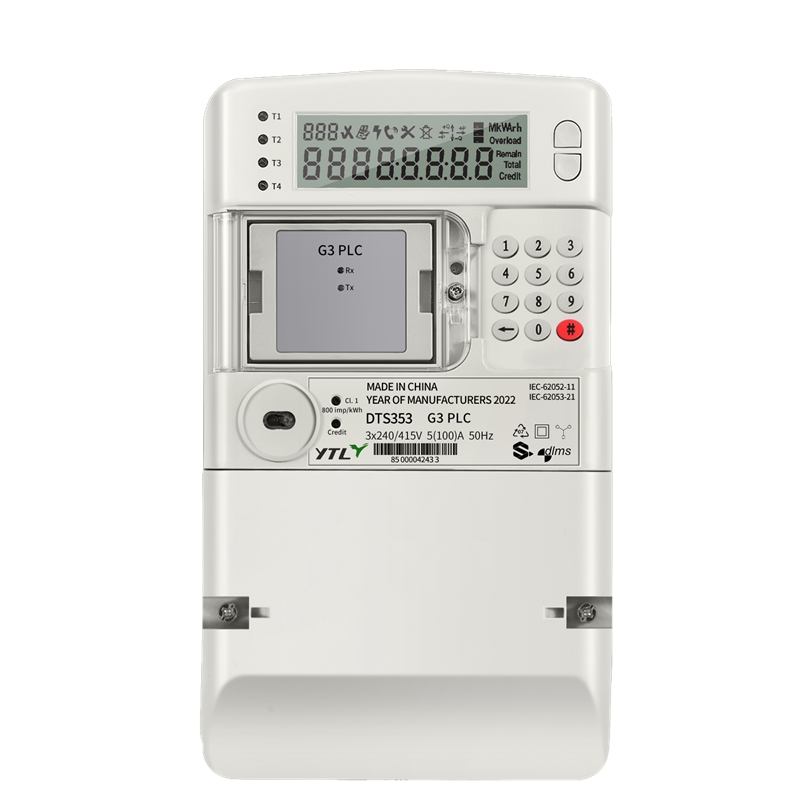

YTL Split Type 3P 4 Model Prepaid Electricity Meter with PLC Communication for CIU Suppliers
Home / Products / smart meter / three phase smart meter / YTL Split Type 3P 4 Model Prepaid Electricity Meter with PLC Communication for CIU
KA17-07-PLC
Contact Us
SPEC Download
YTL Split Type 3P 4 Model Prepaid Electricity Meter with PLC Communication for CIU
- Type
- Technical Parameters and Features
- det6
-
Type Communication CIU Communication Function
KA17-01-PLC
Direct typePLC / Prepayment,Remote upgrades KA17-02-PLC
Direct typePLC / Prepayment,Remote upgrades KA17-03-PLC
Direct typePLC / Prepayment,Remote upgrades KA17-04-PLC
Direct typePLC / Prepaid / Postpaid,Active,Reactive
measurement,Neutral measurement,
Load profile,Build in Relay,self diagnosis,
Shunt sampling,Open cover detection,
4 TariffKA17-05-PLC
Indirect typePLC / Prepaid / Postpaid,Active,Reactive
measurement,Neutral measurement,
Load profile,Build in Relay,self diagnosis,
Shunt sampling,Open cover detection,
4 TariffKA17-06-PLC
Direct typePLC PLC Prepaid,Neutral measurement,anti-tamper,
Shunt sampling,Event record,4 TariffKA17-07-PLC
Direct typePLC/RS485 RF/Bluetooth Prepaid,Active,Reactive measurement,
multi anti-tamper,Load profile,Shunt
sampling,Event record,4 TariffKA17-08-RS485
Direct typeRS485 RF Prepaid / Postpaid,Active,Reactive
measurement,Neutral measurement,
Load profile,Build in Relay,self diagnosis,
Shunt sampling,Open cover detection,
4 TariffKA17-09-RS485
Indirect typeRS485 RF Prepaid / Postpaid,Active,Reactive
measurement,Neutral measurement,
Load profile,Build in Relay,self diagnosis,
Shunt sampling,Open cover detection,
4 TariffKA17-10-LoRA
Direct typeLoRA RF Prepaid / Postpaid,Active,Reactive
measurement,Neutral measurement,
Load profile,Build in Relay,self diagnosis,
Shunt sampling,Open cover detection,
4 TariffKA17-11-LoRA
Indirect typeLoRA RF Prepaid / Postpaid,Active,Reactive
measurement,Neutral measurement,
Load profile,Build in Relay,self diagnosis,
Shunt sampling,Open cover detection,
4 TariffKA17-12-4G
Direct type4G/3G/2G / Prepaid / Postpaid,Active,Reactive
measurement,Neutral measurement,
Load profile,Build in Relay,self diagnosis,
Shunt sampling,Open cover detection,
4 TariffKA17-13-4G
Indirect type4G/3G/2G / Prepaid / Postpaid,Active,Reactive
measurement,Neutral measurement,
Load profile,Build in Relay,self diagnosis,
Shunt sampling,Open cover detection,
4 TariffKA17-14-Wifine
Direct typeWifine Prepaid,Different measurements way,
Neutral measurement,Build in Relay,
self diagnosis,Shunt sampling,Open
cover detection,4 Tariff -
Sr.
Parameter
Description
1
type
3-phase 4-wire:
Direct type
2
Accuracy class
1.0 (or better)-active energy
2.0-Reactive Energy
3
Voltage
3*240/415V
4
Frequency
50Hz
5
Ib/Imax
Direct type: 5/100A;
6
Min Starting Current
Class 1:40mA
Class 2: 50mA
7
Over-voltage rating
Withstand 420VAC for 48 hours
8
LCD
LCD with back light;
Display voltage of L1,L2L3;
Display phase current flow direction;
Active tariff indication;
Load-switch status;
Operational mode;
Tamper status;
Communications status to DCU;
Token acceptance status;
Overload;
Remaining credit;
Volts;
Amps;
kWh;
kVArh;
Cyclic display of data on LCD-configurable;
Manual scrolling data display using scroll keys;
9
Measurement
Each phase and neutral current measurement
Neutral line with CT.
10
Alarm
PF;
voltage dip/Low voltage;
Temperature near terminal block
11
Tamper inputs
Meter cover open;
Terminal cover open;
Comms module cover open;
Strong magnetic field tamper
12
Communications
RS485 (always present)
IR (always present)
Plug-in module:
PLC (G3)
GPRS
LoRa
Protocol: DLMS
13
Tariff
Multi tariff
14
Maximum demand
Configurable integration period-with auto reset on the 1st of every month.Manual reset must also be possible via secure short code method.MD to be part of scroll display.
15
Load management
Support second configurable load limit threshold that becomes active during configurable periods
16
Standards compliance
IEC62052-11
IEC62053-21
IEC62056-46
IEC62056-61
IEC62053-61
