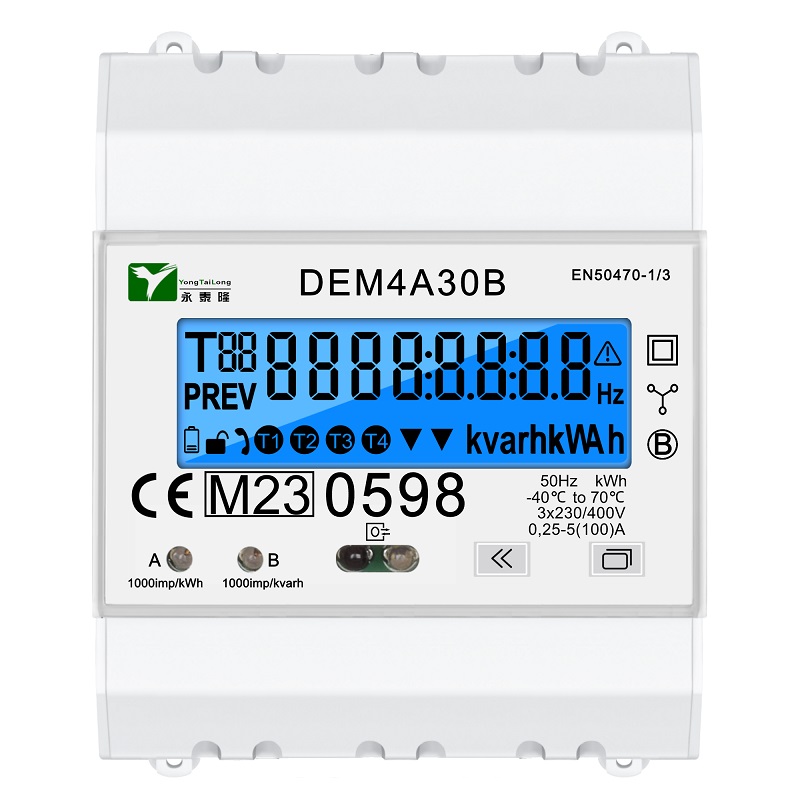

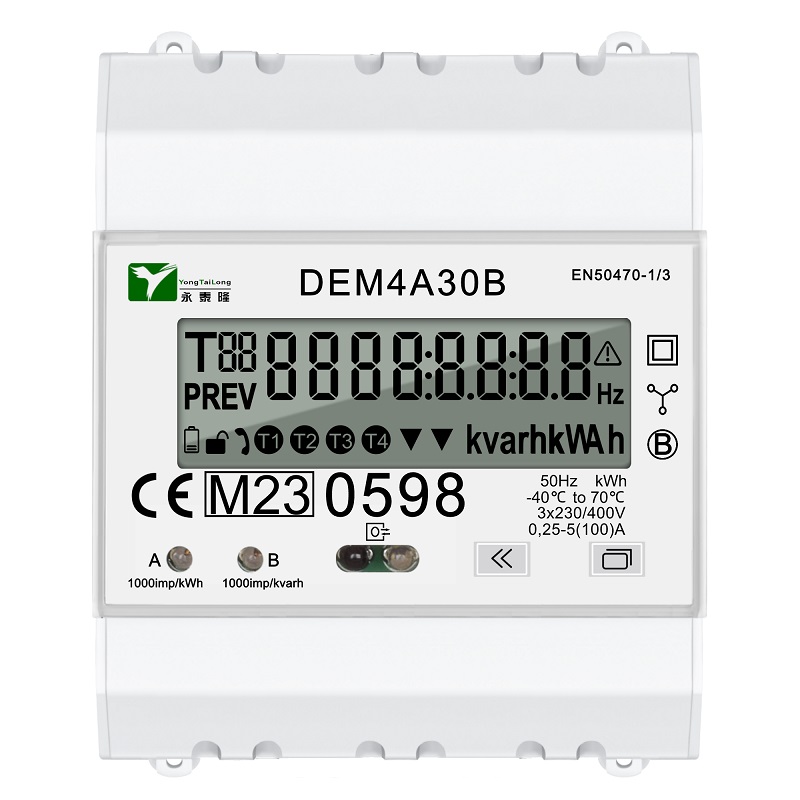

The DEM4A Series Three Phase Energy Meter Modbus protocol works directly
The DEM4A Series Three Phase Energy Meter Modbus protocol works directly
Type |
|||||
Software Version |
V301 |
V301 |
V301 |
V301 |
V301 |
CRC |
708A |
5B61 |
2B60 |
5B61 |
2B60 |
Impulse Constant |
1000imp/kWh |
||||
Communication |
IR |
IR,RS485 |
|||
Baud rate |
N/A |
9600\19200\38400\115200 |
|||
SO output |
SO1 is SO output for kWh(default) or Active/reactive forward kWh optional |
SO output for Active kWh
with variable constant |
|||
|
SO2 is SO output for kvarh (default) or Active/reactive reverse kWh optional |
External Signal input port |
|||
Pulse width |
Changeable pulse width according to current, the bigger the current the shorter the pulse width |
||||
Backlight |
Blue |
||||
Li-Battery |
N/A |
N/A |
YES |
N/A |
YES |
Multi-tariff |
N/A |
N/A |
YES |
N/A |
YES |
Measurement Mode |
1-total =forward 3-Total =forward +reverse (default) |
||||
Button |
Touch button |
||||
Button function |
Left:Page turning, |
||||
Default setting |
1000imp/kWh,100ms 1000imp/kvarh,100ms |
9600/NONE /8/1 |
|||
Measurement Mode setting |
Button |
RS485 or Button |
Content |
Parameters |
Standard: |
EN50470-1/3 |
Rated Voltage: |
3*230(400)V |
Rated Current: |
0,25-5(30)A,0,25-5(32)A,0,25-5(40)A,0,25-5(45)A, 0,25-5(50)A,0,25-5(60)A, 0,5-10(80)A,0,5-10(100)A |
Impulse Constant: |
1000imp/kWh(LED) 1000imp/kvarh(LED) |
Frequency: |
50Hz |
Accuracy Class: |
B |
LCD Display: |
LCD 6+2 |
Working Temperature: |
-40~70℃ |
Storage Temperature: |
-40~70℃ |
Power Consumption: |
<12VA <1W |
Average Humidity: |
≤75% (Non Condensing) |
Maximum Humidity: |
≤95% |
Start Current: |
0.004Ib |
Case Protection |
IP51 indoor |
