This meter is a new product with high accuracy, high reliability, high stability, low power consumption. It has LCD backlight display, running hours of equipments, kWh display,
instantaneous power, voltage, current display so on.
Mounted on the electronic device (For example, Air dryer, etc.) so that the meter can monitor the operational time and consumed kWh.
|
Voltage: |
240V |
|
Current: |
5(16) A |
|
Accuracy class: |
1.0 |
|
Standard: |
IEC62052-11, IEC62053-21 |
|
Frequency: |
50-60Hz |
|
Impulse constant: |
10000imp/kWh |
|
Display: |
LCD |
|
Temperature range: |
-10～70℃ |
|
Relative Humidity: |
≤85% |

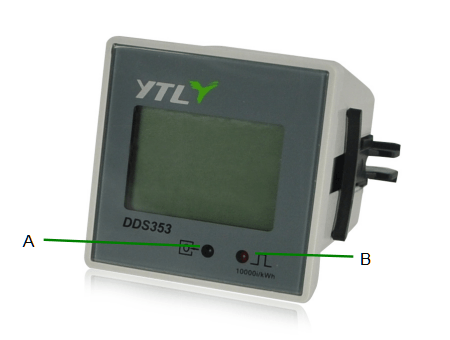

A Infrared receiver
B Impulse Indication
Material
Case Grey flame resistant ABS
Panel Grey flame resistant ABS
Base Bottom Grey flame resistant ABS

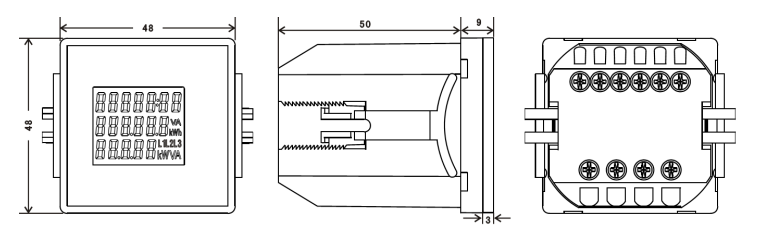

Height 48mm
Width 48mm
Depth 50mm
Weight 0.0834kg(Net)
