DEM1E302 Single Phase High Refresh MID Din Rail Meter Suppliers

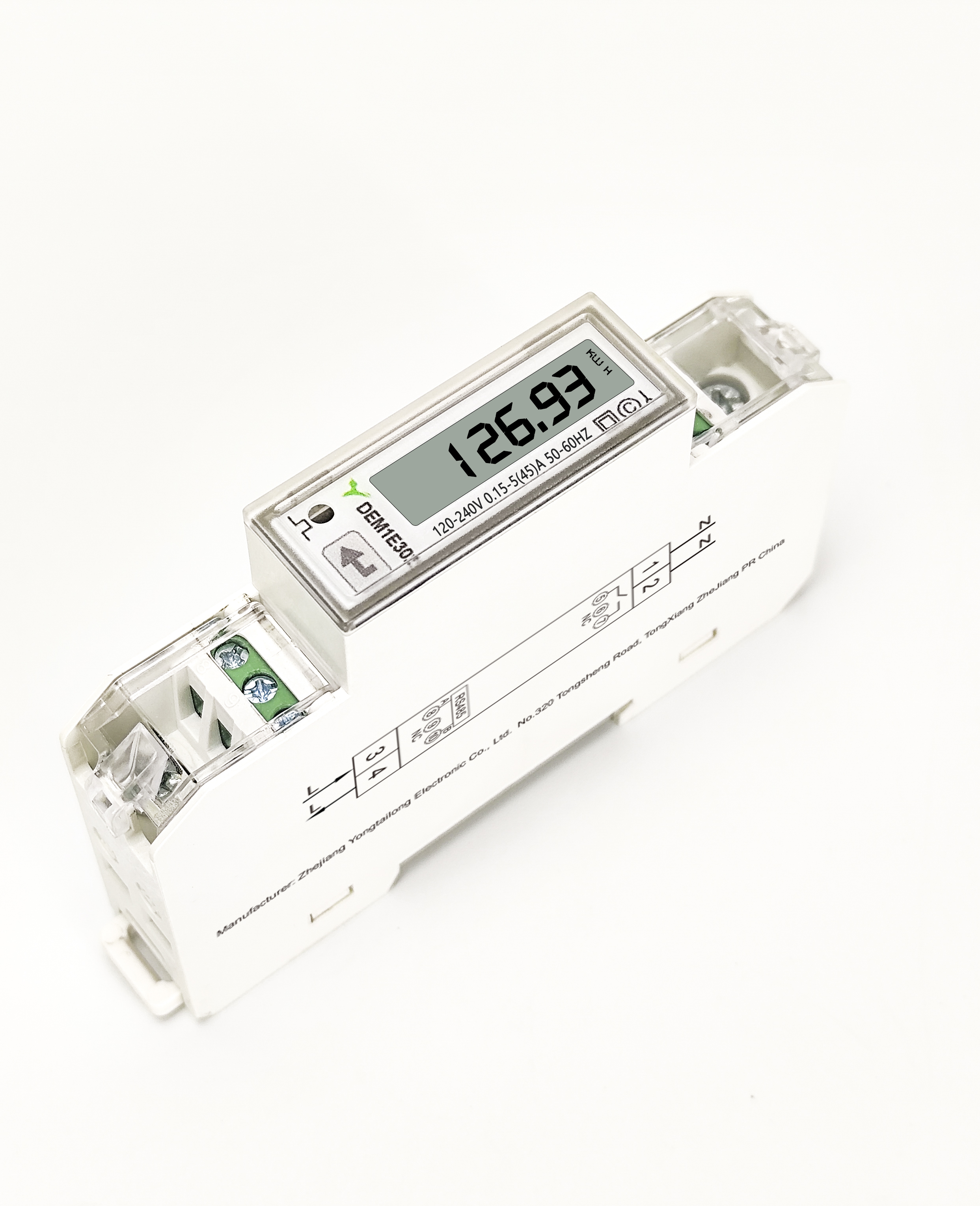

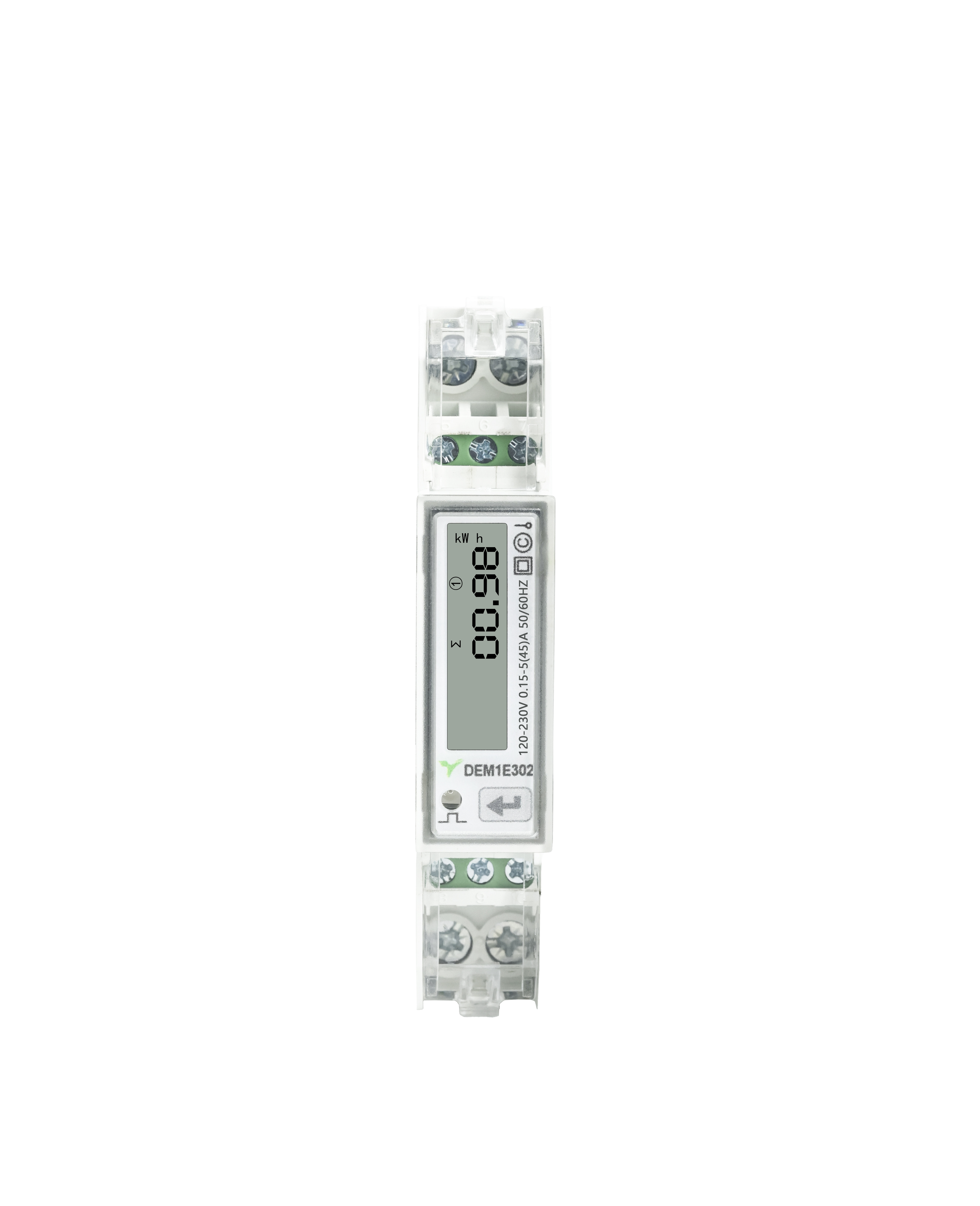

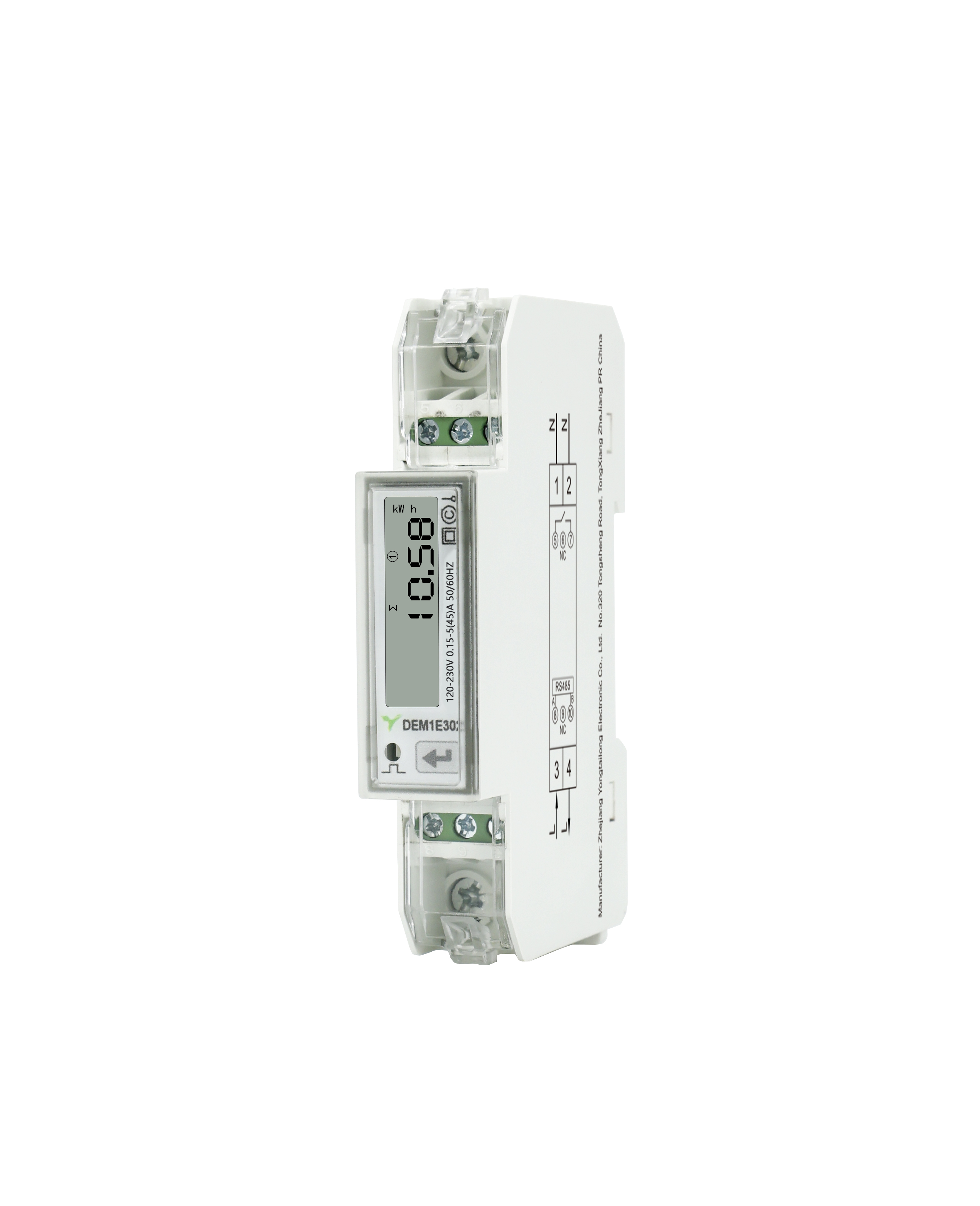

DEM1E302 Single Phase High Refresh MID Din Rail Meter
The DEMIE302 is a single-phase direct-type energy meter that employs a high-speed processing chip solution, specifically designed for high-speed metering scenarios such as photovoltaic systems, energy storage systems, and factory energy monitoring.
- Function features
- Voltage input
- Current input

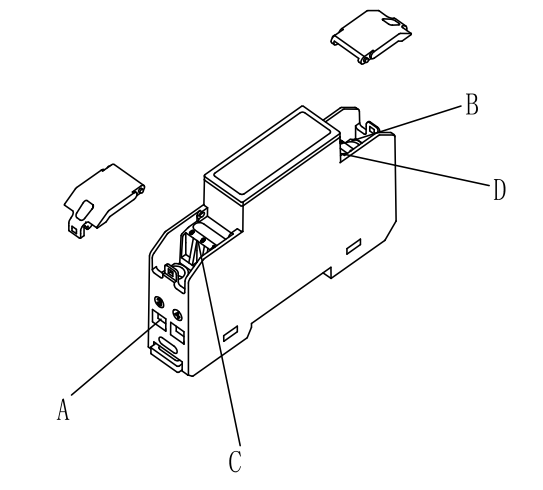

- Structure

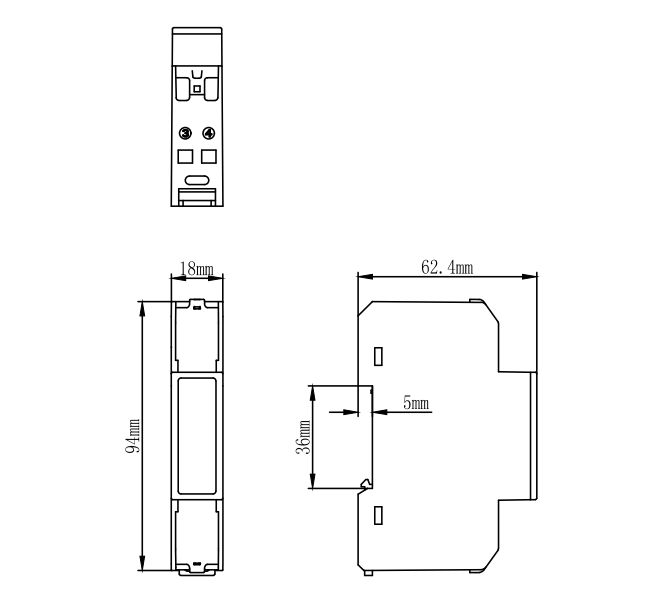

- Dimension
-
- Measurement：Bidirectional active/reactive energy
- Accuracy Class: 0.5
- 100ms high refresh communication
- Flexible communication methods: Supports RS485 communication, compatible with Modbus and DL/T645-2007 protocols.
- LCD backlight display: Shows voltage, current, energy, power, and other information; features automatic sequential display with a default interval of 5 seconds.
- Self-diagnosis, alarm, and security protection functions.
- MID certification
-
voltage connection
direct
rated voltage
120...230V
voltage tolerance
from 0.8 to 1.15 Un
frequency
50/60Hz
-
current connection
direct
basic current
（Ib）
5A
minimum current
（Im in）
0.15A
Maximum current
（Imax）
45A
-
-
