DEM2A302 Single-Phase Direct-Connected Fast-Refresh MID DIN-Rail Energy Meter Suppliers

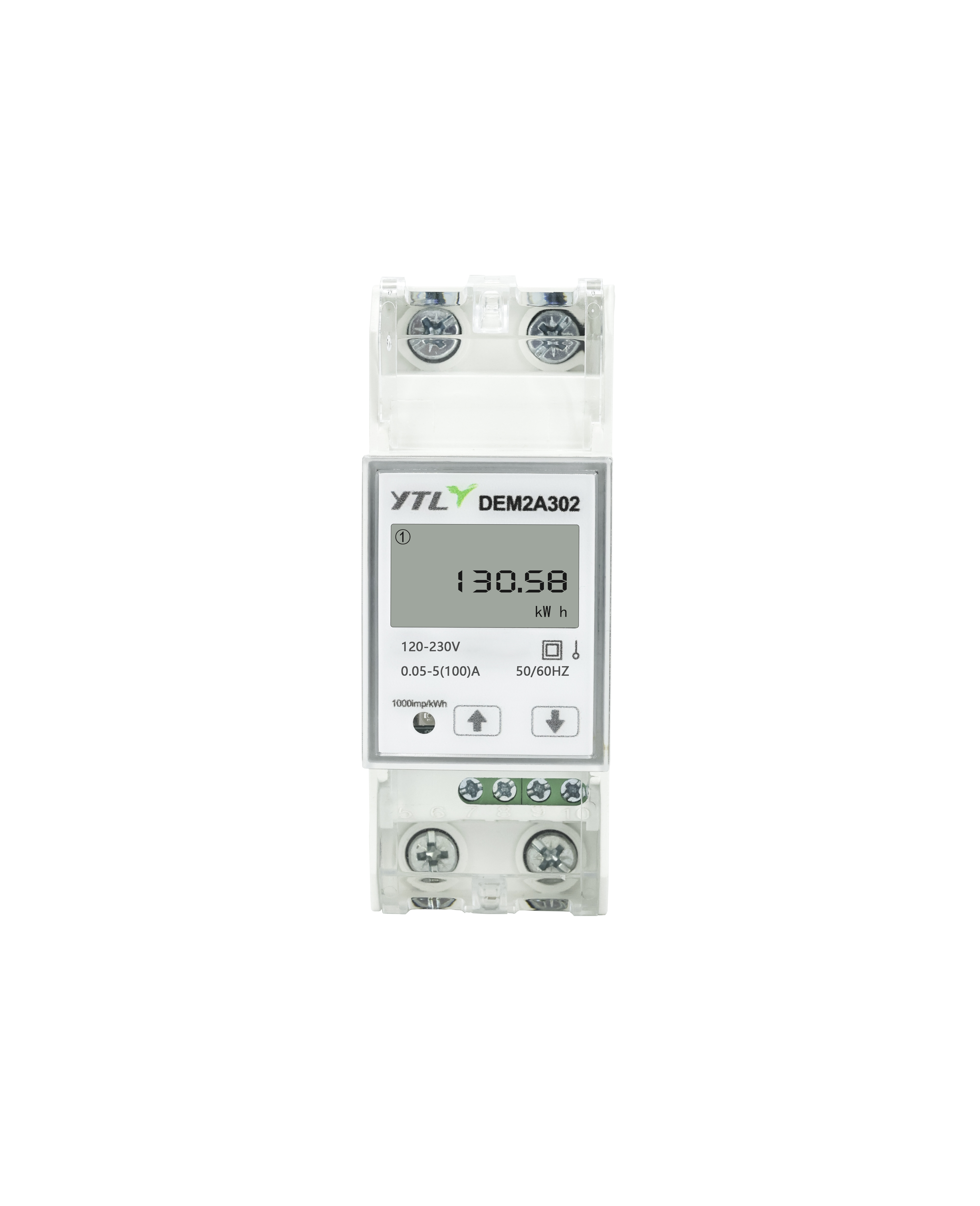

DEM2A302 Single-Phase Direct-Connected Fast-Refresh MID DIN-Rail Energy Meter
DEM2A302 is a single-phase direct-connected MID-certified DIN-rail energy meter for fast-refresh energy and power monitoring applications. It is commonly used in solar PV, BESS, EV charging, building energy management and industrial distribution systems where compact single-phase metering and RS485 communication are required. Selected variants support Modbus RTU and DL/T 645-2007. The fast-refresh value refers to communication response time, not LCD refresh time or waveform sampling frequency.
- Function features
- Voltage input
- Current input
- Function parameters
- General parameters

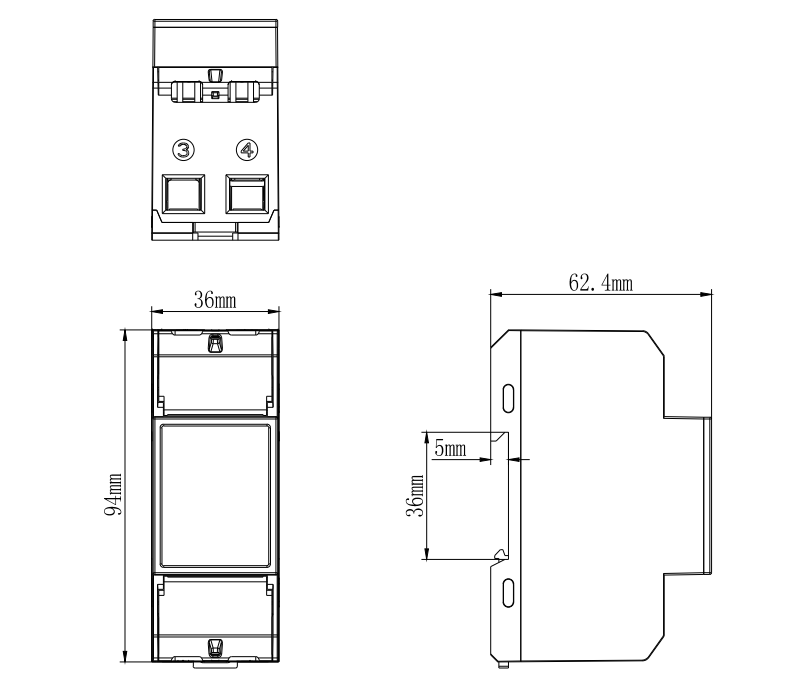

- Dimension
-
- Measurement：Bidirectional active/reactive energy
- Accuracy Class: 0.5
- 100ms high refresh communication
- Flexible communication methods: Supports RS485 communication, compatible with Modbus and DL/T645-2007 protocols.
- LCD backlight display: Shows voltage, current, energy, power, and other information; features automatic sequential display with a default interval of 5 seconds.
- Self-diagnosis, alarm, and security protection functions.
- MID certification
- Provide a optional version DEM2A202: without battery, without TOU.
-
voltage connection
direct
rated voltage
120...230V
voltage tolerance
from 0.8 to 1.15 Un
frequency
50/60Hz
-
current connection
direct
basic current
（Ib）
5A
minimum current
（Im in）
0.15A
Maximum current
（Imax）
100A
-
Measurement function
Monitor energy consumption, key electrical variables (including active and reactive power, power factor), and calculate current/voltage harmonic content and apparent energy
Measurement method
Forward + reverse (absolute measurement)
Forward-reverse (algebraic sum)
Forward measurement
Reverse measurement
Tariff
TOU tariff, 4 tariffs by default, 8 time periods.Switching tariff (2 tariffs by default)
Self-diagnosis
EEP Detection
Event alarm
Monitor variable alarms (kW, A, V L-N, V L-L, PF, Kvar, kVA), with adjustable activation thresholds and delays
Firmware upgrade
Local upgrade
Clock
temperature compensation
Other functions
Screen saver function, page filter, and runtime hour counter.
-
LCD display
6+2
LCD refresh time
1S
LED
Red impulse light
Button
Page turning, setting
IP degree
IP30
Protection class
Level Ⅱ
Rated pulse voltage
6kV
Installation
Din rail（2P）
-
