DEM3K302 Three-Phase CT-Operated MID DIN-Rail Energy Meter Suppliers

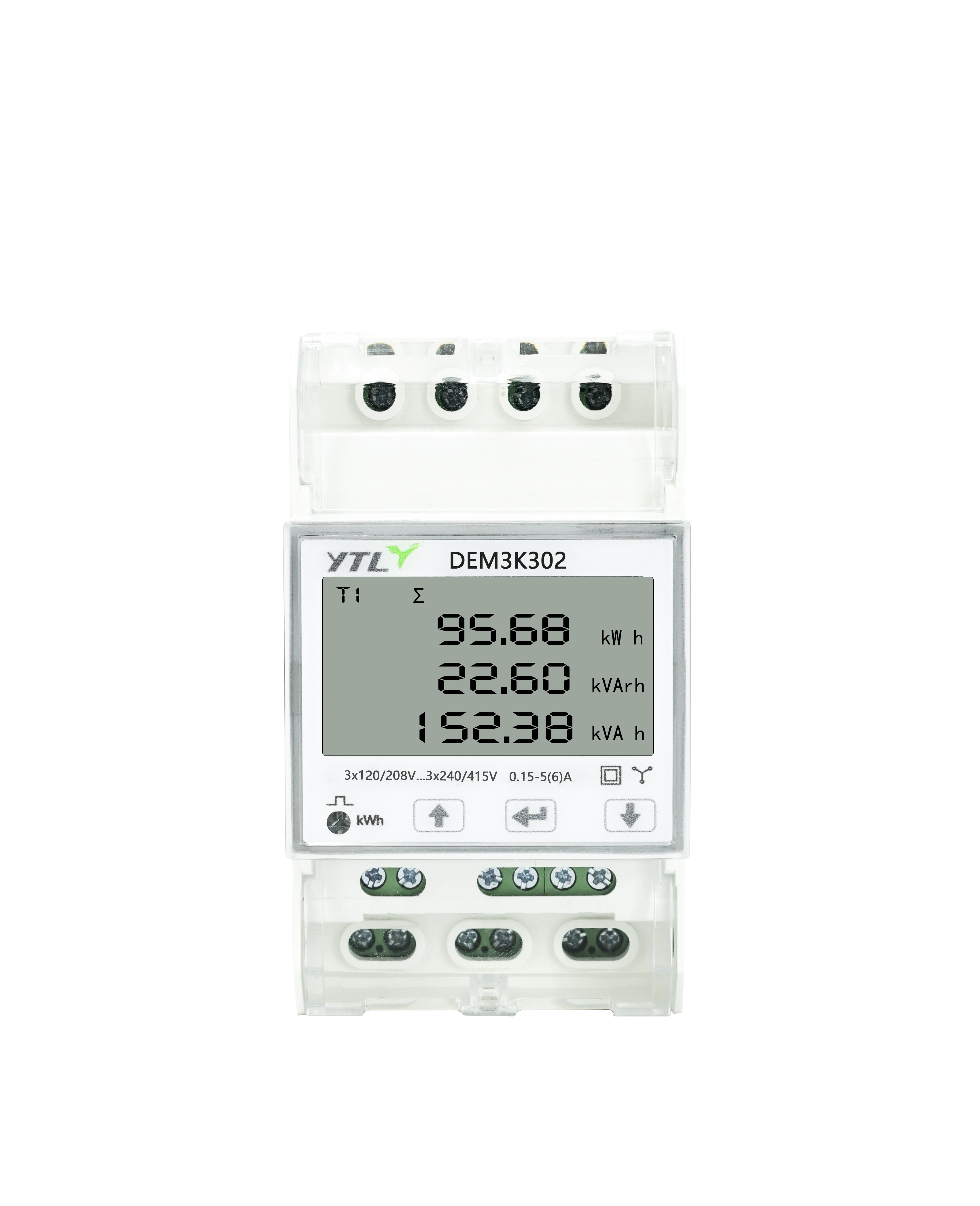

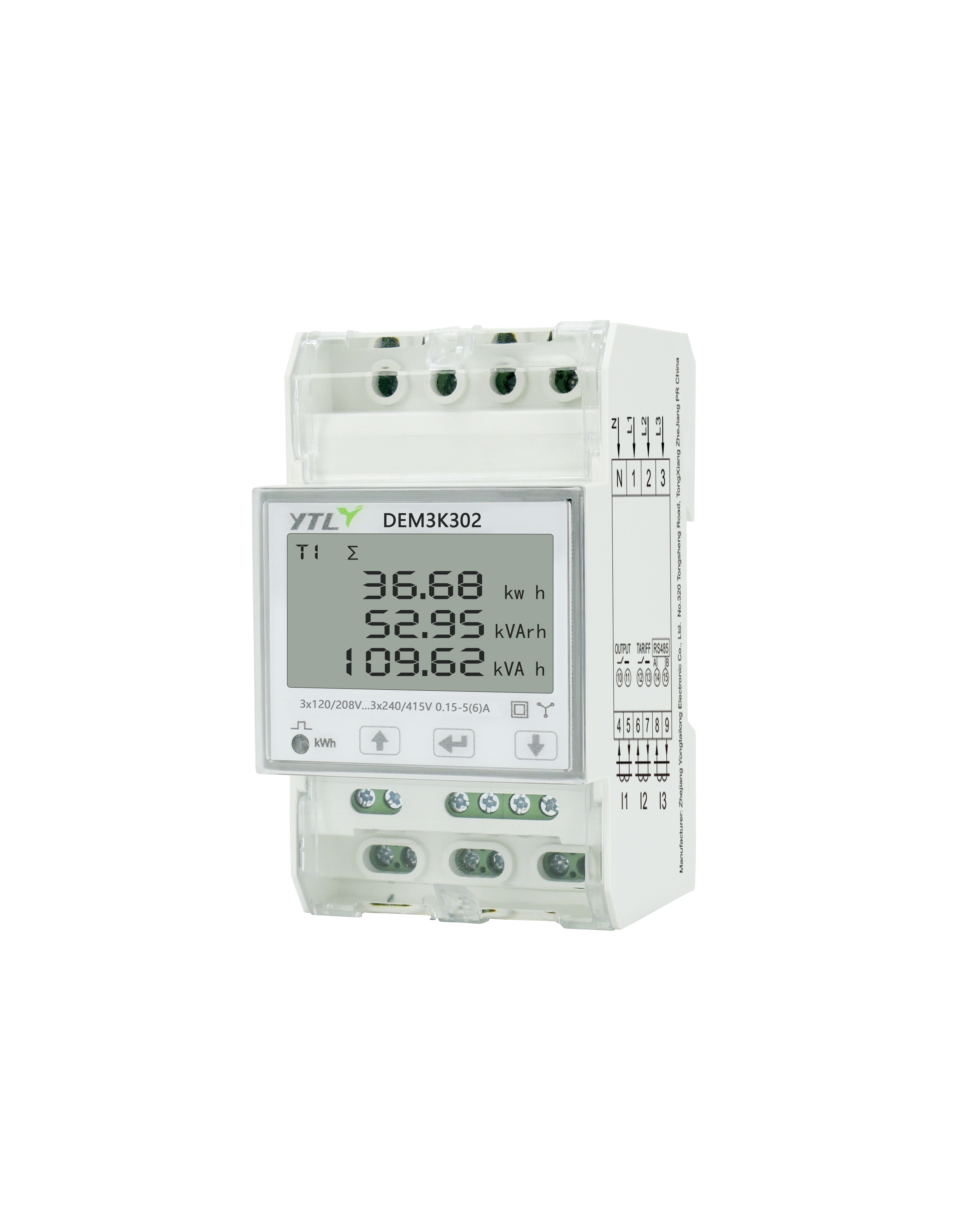

DEM3K302 Three-Phase CT-Operated MID DIN-Rail Energy Meter
Fast RS485 data updates for PV, BESS, EV charging and industrial energy monitoring projects.Confirm the CT ratio and communication configuration before selection.
Selected variants support Modbus RTU and DL/T 645-2007 communication.
The documented ≤75 ms value refers to RS485 communication response time only; it is not waveform sampling frequency or total system control-loop latency.
- Communication parameters
- Functional parameters
- Generic parameters

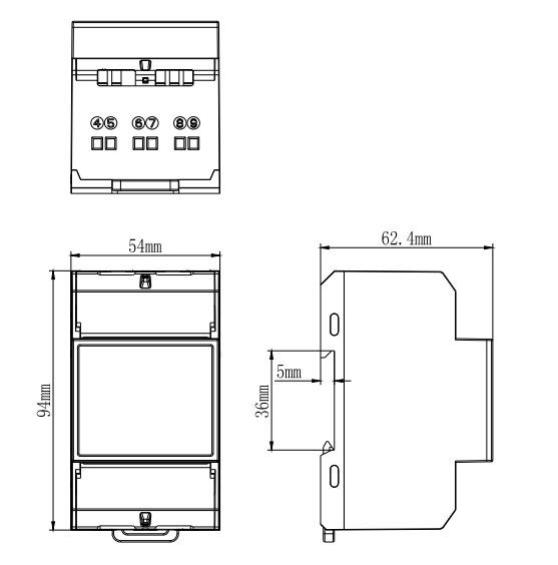

- Dimension drawings

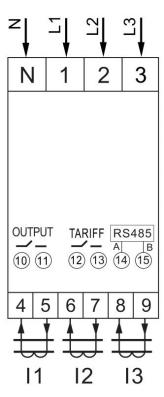

- wiring diagram
-
Mode of communication
RS485
Protocol
RS485 is compatible with Modbus RTU, DLT/645-2007
Type of communication
Two-way
RS485 connection type
RS485 configuration parameters
Modbus address (1 to 247)
Baudrate (9.6/19.2/38.4/57.6/76.8/115.2 KBPS) ）Parity (none/odd/even)
Refresh time
≤100ms
-
Measurement function
Monitor electrical energy consumption, major electrical variables (including active and reactive power, power factor) and calculate current/voltage harmonics including Depending on the amount of electricity
Measurement method
Forward and reverse measurement, net two-way, first remember single-phase and then calculate, and then respectively into kwh +-, absolute value measurement
Tariff
Default 4 tariffs, 8 time periods
Self-diagnosis
Store self-diagnosis
Event alarm
Over-current, high temperature, magnetic field detection, low battery power, etc.
Firmware upgrade
Local update
Clock
Automatic network time calibration, temperature compensation
Other functions
Wiring CHECK
Screen Saver function
Page filters
runtime hour counter -
LCD display
6+2
LCD refresh time
1S
LED
Red Pulse Light
Keys
Paging, setting
IP level
IP20
Level of protection
Class II protection
Rated pulse voltage
6kV
Installation method
Guide Rail Type (3P)
-
-
