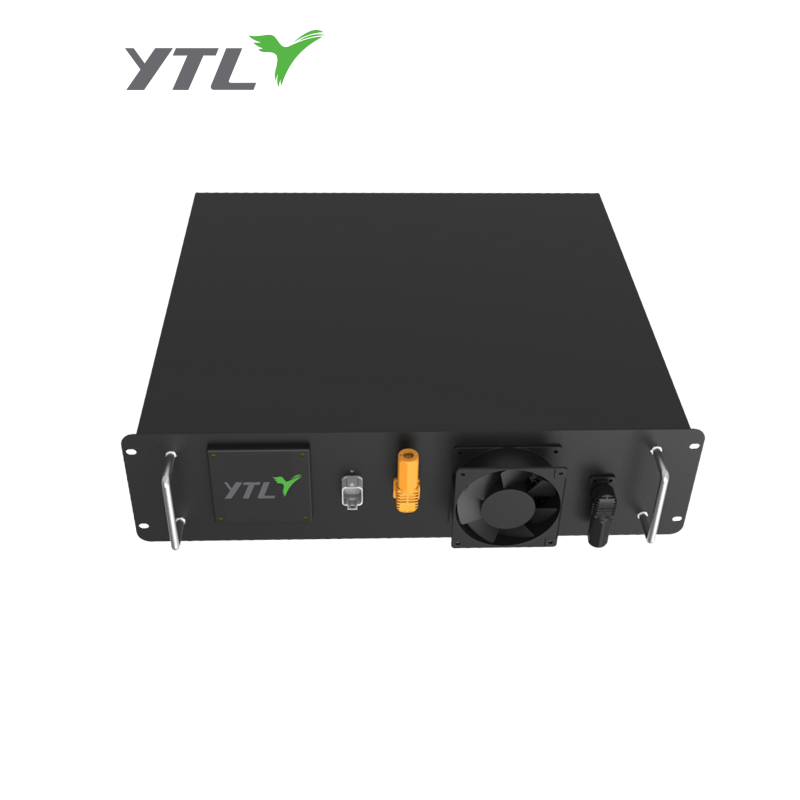

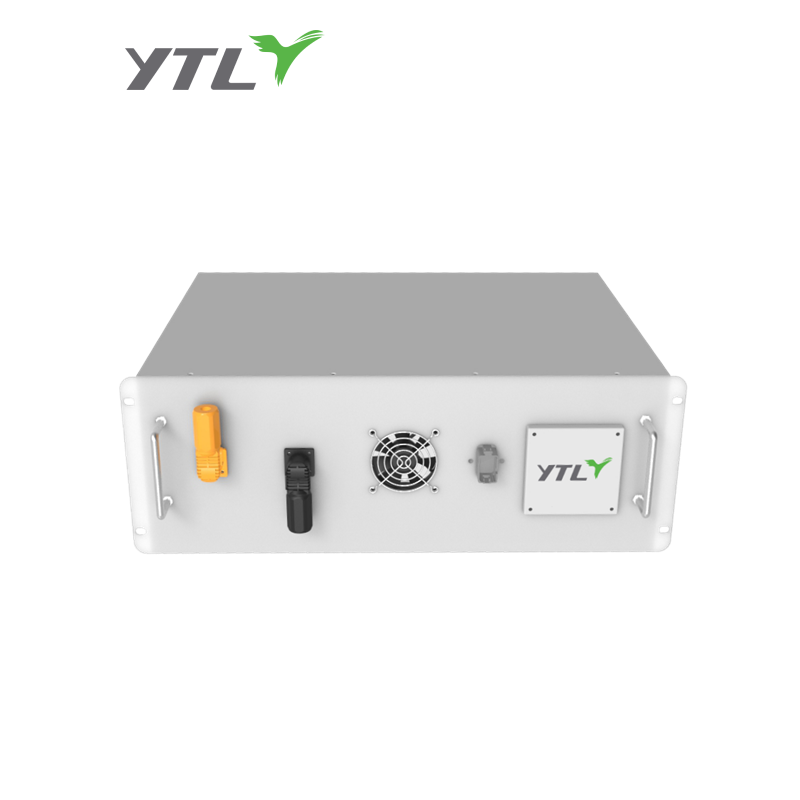

carry 100% unbalanced load Energy Storage Battery
Features
Modular structure,Modular structure, can flexibly form various voltage platforms and systems with various capacity levels within 1500V, easy to maintain
Using lithium iron phosphate battery, high safety performance, long cycle life, design life more than 15 years
BMS Core research and development capabilities
Power system integration capability
Accumulated different types of energy storage customers
PACK, BMS independent research and development and production, delivery time is controllable
Mature pre-sales and after-sales team and on-site support capabilities
|
 |
 |
|
| 38.4V 280AH | 38.64V 346AH | 28.8V 240AH | |
| Serial and parallel | 1P12S | 2P12S | 6P9S |
| Voltage range | 30〜43.8V | 30〜43.8V | 22.5〜32.85V |
| Recommended charging and discharging current | 140A | 173A | 240A |
| Max charge and discharge current | 280A | 346A | 480A |
| Max working temperature | -20°C〜+55°C | -20°C〜+55°C | -20°C〜+55°C |
| Design life | >10year | >10year | >10year |
| Cycles(0.5c) | 5000@25°C | 5000@25℃ | 5000@25℃ |
| Weight | 73kg | 87kg | 67kg |
| Protection level | IP20 | IP20 | IP20 |
| dimensions (mm) | 478×554×224 | 600×454×224 | 600×544×162 |
| Standard | UN38.3/UL1973 /UL9540A | UN38.3/UL1973 /UL9540A | UN38.3/UL1973 /UL9540A |
