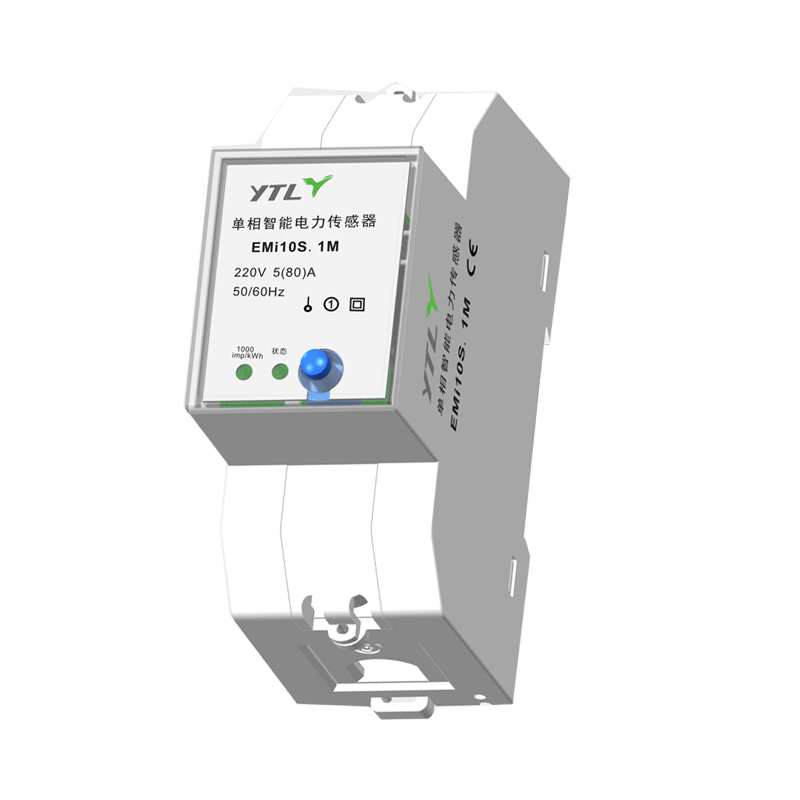

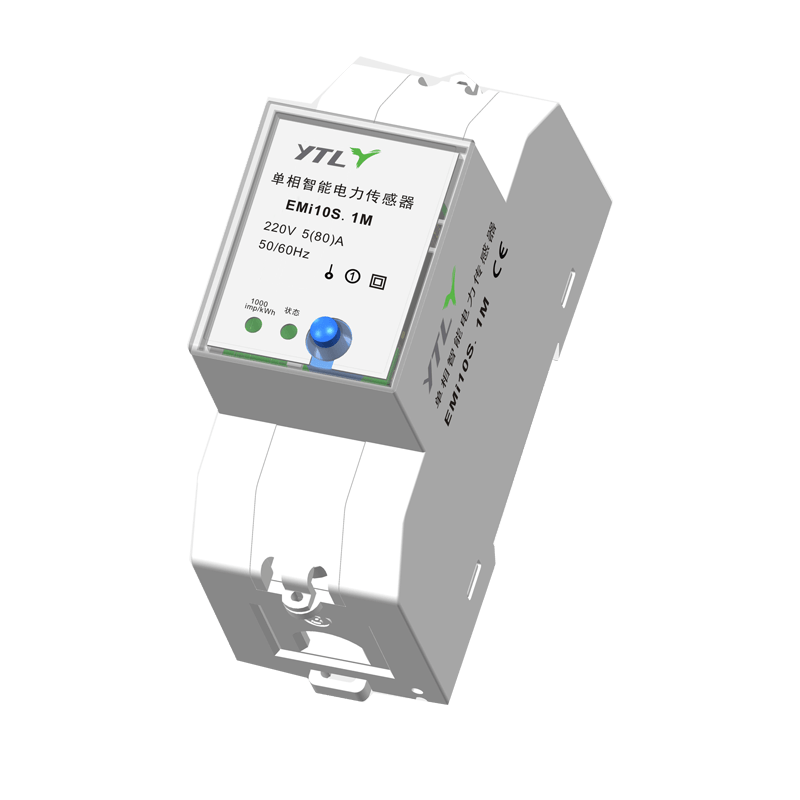

EMi10S.1G-W is an intelligent single phase multifunctional sensing device, which integrates the functions of electric power measurement, switch control, safety alarm, energy consumption monitoring, timing task and so on.
Rely on WIFI,RS485 communication, widely used in various electrical appliances, electronic mechanical equipment and effectively implementation of remote interconnection, safety prevention and control, fault prediction, preventive maintenance, energy saving and consumption reduction.
Battery Energy Storage System High Accuracy Watt Hour Meter Suppliers
D119040
Contact Us
SPEC Download
Battery Energy Storage System High Accuracy Watt Hour Meter
- Technical Parameters
- Description

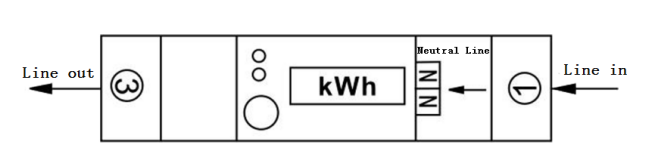

- Connectlon Diagram

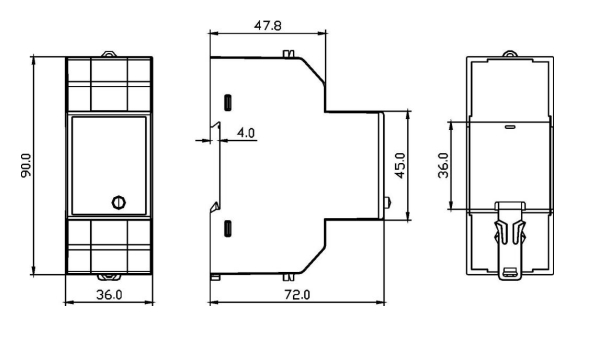

- Meter Dimensions
- Impulse Connection
- det6
-
Voltage: 220V±10V
Current: 5（80）A
Accuracy class: Active0.5，Reactive 1.0
Standard: EN50470-1/3
Frequency: 50-60Hz Impulse constant: 1600imp/kWh Display: LCD5+1
Power consumption: ≦10VA
Starting current: 0.002Ib
Temperature range: -10～45℃ Flashing red: Impulse indication，width=80ms Average humidity value of year: ≦75%
Communication:
WIFI, RS485
-

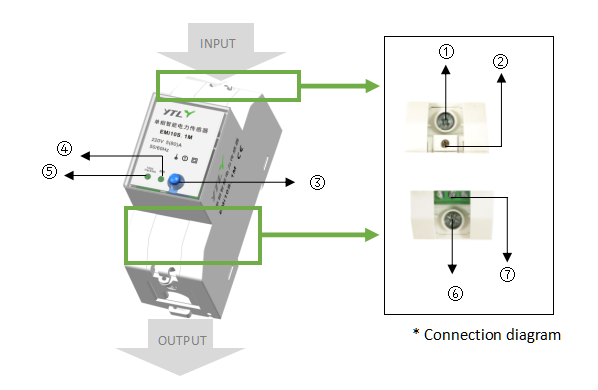

1,2:L-IN、N-IN
3:Switch button (manually turned ON/OFF)
4:POWER
5:Pulse indication
6:L-OUT
7:RS485 port
-
-
-
This product requires experienced electricians or professionals, and make sure you have reading this user manual;
During installation, if there is obvious damage to the shell caused by severe impact or drop, please do not install, power on, and promptly contact our company or distributors;
This product is qualified by inspection and with lead seal before leaving the factory, and can be installed and used directly.
This product should be installed in the indoor or outdoor energy meter box, fixed in the strong refractory wall, the air doesn’t have corrosive gas;
