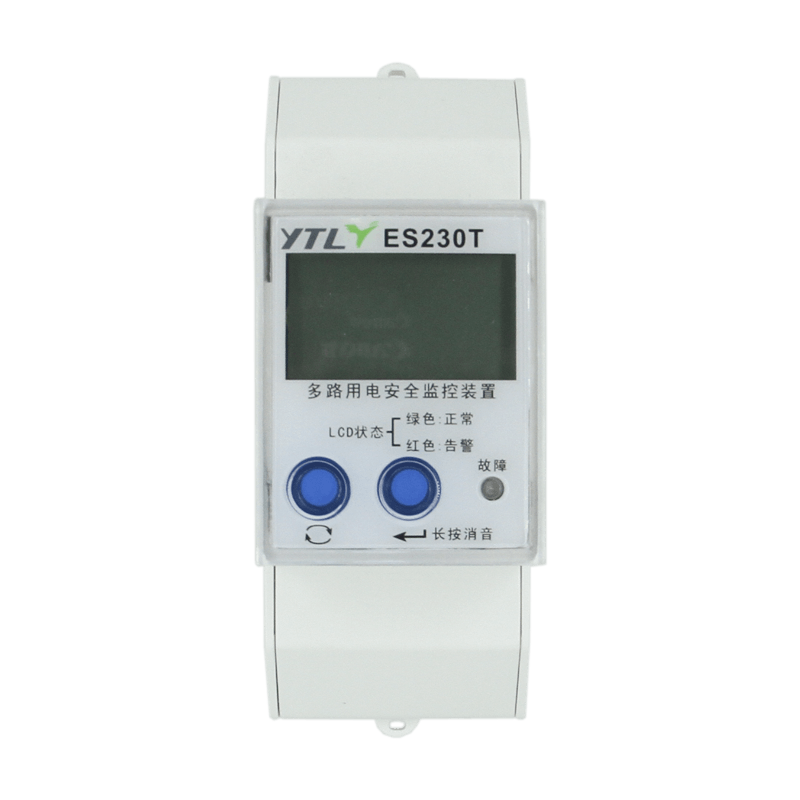

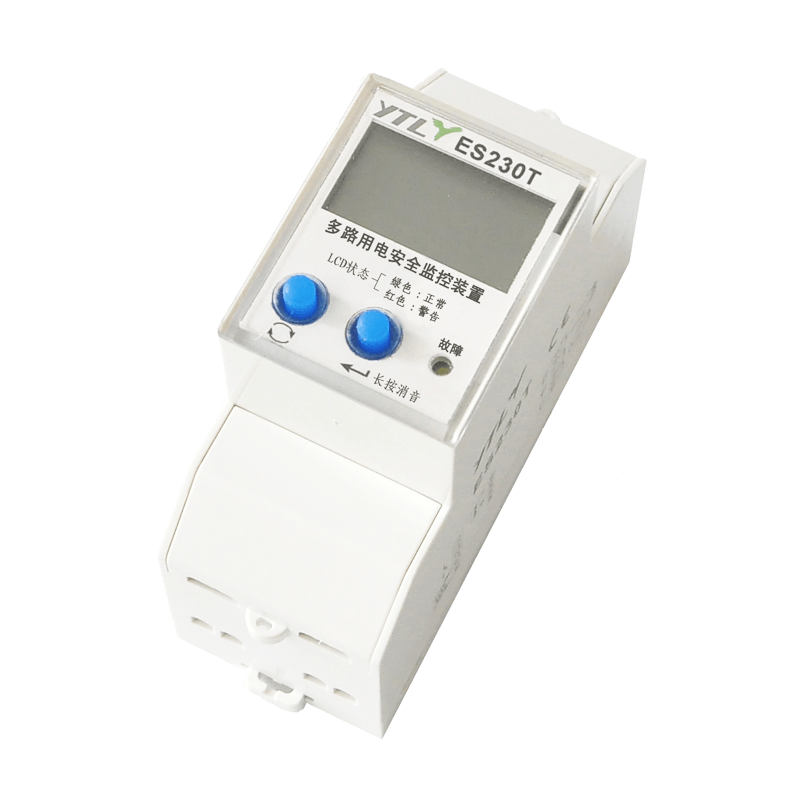

This is a multi-channel multi-functional smart power security monitoring device. It is able to monitor the real time wire temperature and current leakage. Data can be timed uploaded , and support real time monitoring of power consumption , abnormal conditions in a timely alarm manner. This can help the users better manage the regional electricity security.
Electricity Safty Muliti-Function Smart Watt Hour Meter Suppliers
- TechnicalParameters
- Description

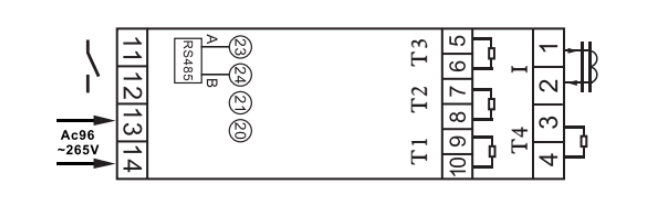

- ConnectlonDiagram
- MeterDimensions
- ImpulseConnection
- det6
-
Auxiliary power supply range:
96~265VAC Standard：
GB 14287.2 GB 14287.3 Frequency：
50Hz Power consumption：
≤8VA ≤0.4Wh Current leakage detection range：
20~1000mA Current leakage CT models ：
0~100A（2000:1）；0~400A（2000:1）
Display：
Temperature LCD3+1Current leakageLCD1+3
Working temperature range：
-20～70℃ Average relative humidity ：
75% Maximum humidity value： 95% -

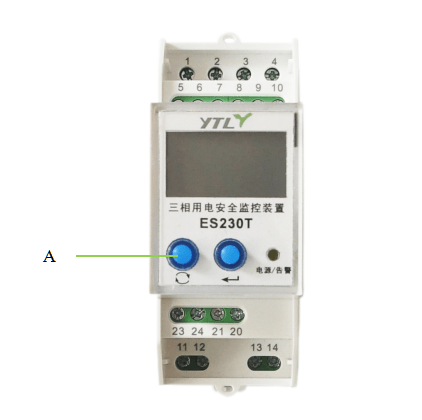

A Power supply indication/alarm
Material
Base PC+ABS
Cover PC+ABS
Terminal cover PC+ABS
Hook ABS
-
-

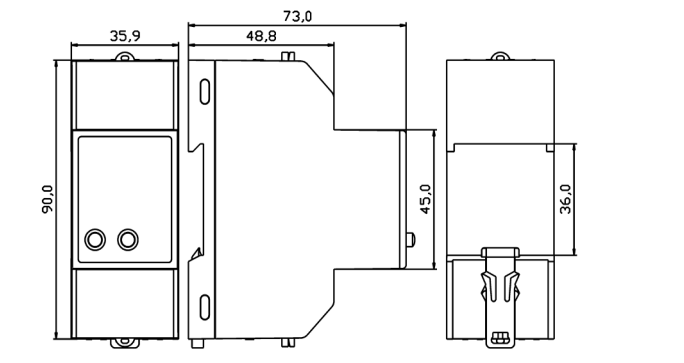

Height 90.0mm
Width 35.9mm
Depth 73mm
Weight 0.2kg（N.W.）
-
The energy meter shall not be subjected to severe shock in transportation and storage, and shall be transported and stored in accordance with the provisions of GB13384-2008 "general technical conditions for instrumentation packaging";
Energy meter should be stored in the original packaging, the temperature range of the local environment is 0-40℃, the relative humidity is not more than 85%, the air is free of corrosive gas; The energy meter is kept in the warehouse, should be placed on the bench, stacked height does not exceed 10 cartons, after unpacking, the single packaging of the energy meter stacking height does not exceed 5 layers.
- https://hqcdn.hqsmartcloud.com/ytl-e/2022/07/07/多路安全装置es230tl51e001中文规格书l190221.pdf
