The single light controller is connected to the LED driver directly, and receives and processes the control commands sent by the concentrator through the power line PLC, and can feedback the control results or the current state to the concentrator, to realize the monitoring and control of the street lamp. Each light controller has a uniqe physical address (UID) and a system-assigned logical address that can be matched with a geographic information system (GIS).
HPLC Smart Light Direct Connected To The Led Driver Light Controller Suppliers
Home / Products / smart lighting / HPLC Smart Light Direct Connected To The Led Driver Light Controller
.png?imageView2/2/format/jp2)
D129110
Contact Us
SPEC Download
HPLC Smart Light Direct Connected To The Led Driver Light Controller
- TechnicalParameters
- MeterDimensions
- ImpulseConnection
- det6
-
Items
Discription
Supply power
Single phase supply power
Supply voltage
220V±30%
Frequency
50Hz±10%
Power comsumpion
Static power consumption≤1W
Dynamic power comsumpion≤1.5W
Upgoing channel
HPLC
Control interface
0~10V
PWM
Max load
10A
Relay work life
100000
Work temperture
-40~85℃
Work humidity
10% ~ 100%
Electro magnetic compatibility
Electrostatic discharge 8kV
High frequency electromagnatic field 10V/m
Fast transient pulse train 4kV
Surge ≤1W
-

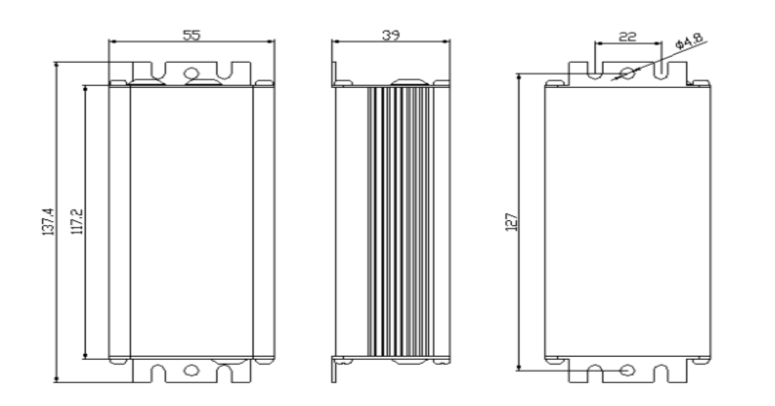

Longth 137.4mm
Wideth 55mm
Hight 39mm
-
Electric energy meters shall not be subjected to severe shock during transportation and storage, and shall be transported and stored in accordance with the provisions of gb13384-2008 general technical conditions of instrument packaging;
The energy meter should be stored in the original package, where the temperature range of the environment is 0-40c, the relative humidity should not exceed 85%, and there is no corrosive gas in the air.
Electricity meters shall be stored in the warehouse, and shall be placed on the platform. The stacked height shall not exceed 10 boxes. After unpacking, the stacked height of single packed electricity meters shall not exceed 5 layers.
