YTL DEM1E001 DIN Rail Singlephase 1W Submeter Wholesale Power Meter Supplier Suppliers

Home / Products / smart meter / YTL DEM1E001 DIN Rail Singlephase 1W Submeter Wholesale Power Meter Supplier

DEM1E001

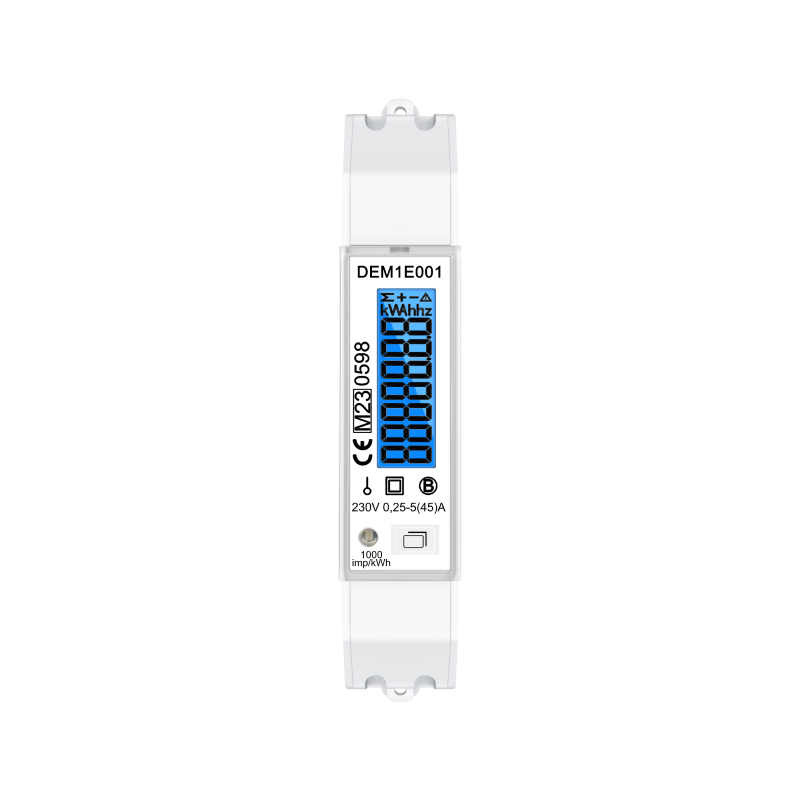

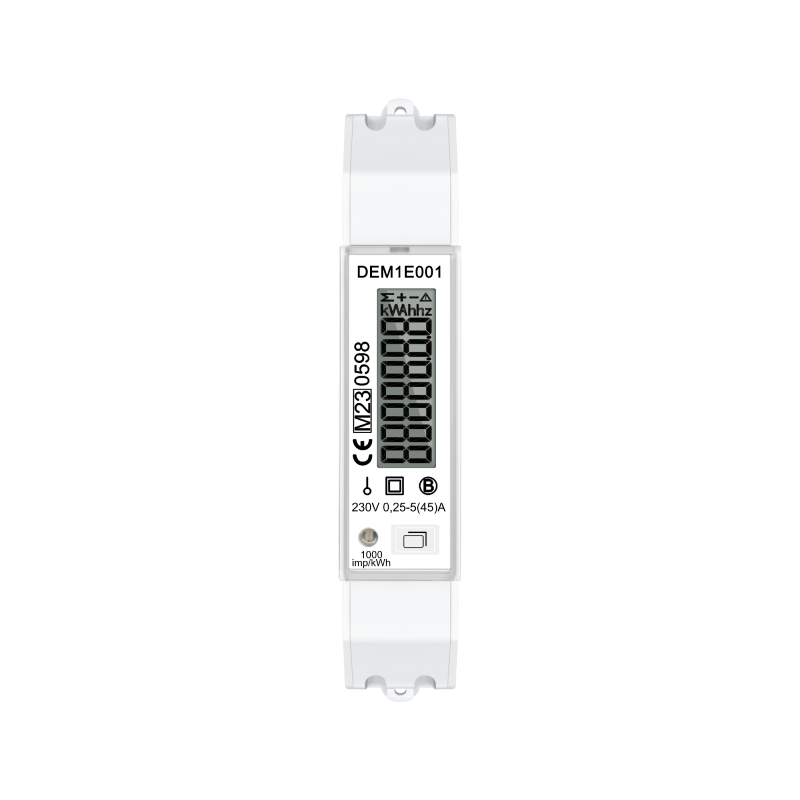

YTL DEM1E001 DIN Rail Singlephase 1W Submeter Wholesale Power Meter Supplier

This meter with CPA,EC MID compliant. Metering modes: absolute measurement, algebraic and metering, positive and reverse metering only, forward and reverse metering can be configured programmatically. If solar power generation is involved, it can be immediately set to algebraic and bidirectional metering modes.

Technical Parameters
Measurements
Meter Dimensions

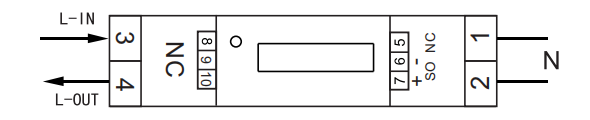

Diagram for installation
det6

https://hqcdn.hqsmartcloud.com/ytl-e/2022/11/02/单节lcdmid表（d118095d118092d116070).doc

Applications

View all applications

View all products

D111001

Household Wholesale Manufacture Simple Single Phase Electric Meter Electricity Meter
K212-01-PLC

Din Rail Multifuction Digital Single Phase Electric Smart Meter
D118080

YTL Single Phase Class B Energy Meter No communication
D119040

Battery Energy Storage System High Accuracy Watt Hour Meter
D124001-08

Scattered Residents Easy To Manage 1P Prepaid Meter Electricity Meter
D619001

RS485 Communication Multi-Function Smallest DC Watt Hour Meter
YTL APS System Used For Africa Three Phase Prepaid Meter
Digital Device Measure Electronic Panel Electricity Meter
J119009

Uploaded Data Measuring Device Regularly Concentrator with Ethernet Communication
D129086

NB-IoT Smart Street Light Convenience Single Light Controller
DDS353AI

DDS353AI Export kWh Meter Single Phase MID Electric Energy Din Rail meter
DDS353F+R+I

DDS353F+R+I Din Rail Energy Meter Digital Household 230V IoT Watt Hour Meter

Welcome To A National High-tech Enterprise

Established in 2000, Zhejiang Yongtailong Electronic Co., Ltd. is located in the center of Shanghai, Hangzhou and Suzhou cities. YTL is a professional China YTL DEM1E001 DIN Rail Singlephase 1W Submeter Wholesale Power Meter Supplier Suppliers and YTL DEM1E001 DIN Rail Singlephase 1W Submeter Wholesale Power Meter Supplier Company. With more than 20 years of energy metering experience, we devote ourselves to providing competitive projects and creating value for customers. YTL was one of the first companies in the domestic market with which had an internal R&D department as well as international sales business. Since our foundation in 2000 we have grown to a manufacturer which complies and meet to many specifications from our national and international partners. At present our export volume makes us a leading company for technology and product export to more than 50 countries throughout the world. With provincial high-tech enterprise R&D center, YTL is the Top 100-enterprise with most investment value in Zhejiang. And“Yongtailong”is the famous brand of Zhejiang. For any new products of customers, we will communicate with customers very professionally, listen to their opinions and give useful suggestions to ensure that excellent quality products are made.

2000

Established In
500+

Employees
60+

Export Country
500+

Design Right Patent

YTL Honor

MID
KEMA
DLMS
IEC
KEMA
SGS

YTL News

View All News

DC Energy Meter for DC EV charger

2024-05-16

A DC Energy Meter is a specialized metering device designed to measure the electrical energy consumption of a DC Electric Vehicle (EV) charger. Here are some k...
IEC standard of electricity meter

2024-05-15

The International Electrotechnical Commission (IEC) has developed several standards for electricity meters, which are widely adopted globally. Here are some of ...
Ensuring the Reliability of Wireless Communication Transmission

2024-05-16

The reliability of wireless communication transmission is crucial to ensure that information is transmitted accurately, completely, and stably during the sendin...
The Communication Methods of IoT Have Many Advantages and Application

2024-05-14

The Communication Methods of IoT Have Many Advantages and Application The communication methods of IoT (Internet of Things) are numerous, each with its uniqu...
How Secure Are Prepaid Meter Systems Against Fraud?

2024-05-11

In the realm of utility management, prepaid meter systems have emerged as a promising solution for both consumers and service providers. However, one pressing c...
Characteristics of LoRa and Wifine Communication

2024-05-09

LoRa and WiFine are both low-power wide area network (LPWAN) communication technologies designed specifically for Internet of Things (IoT) applications. With fe...

Content	Parameters
Standard:	EN50470-1/3
Rated Voltage:	230V
Rated Current:	0,25-5(30)A,0,25-5(32)A,0,25-5(40)A, 0,25-5(45)A
Impulse Constant:	1000 imp/kWh
Frequency:	50Hz
Accuracy Class:	Class B / Active 1.0
LCD Display:	LCD 5+2 = 99999.99kWh
Working Temperature:	-25～55℃
Storage Temperature:	-30~70℃
Power Consumption:	<10VA <1W
Average Humidity:	≤75% (Non Condensing)
Maximum Humidity:	≤95%
Start Current:	0.004Ib
LED flash:	Impulse indication, pulse width = 80 ms

Type	DEM1E001	DEM1E003	DEM1E103
Software Version	V101	V101	V101
CRC	5A8E	B6C9	6B8D
Impulse Constant	1000imp/kWh	1000imp/kWh	1000imp/kWh
Communication	N/A	RS485 Modbus/DLT645	RS485 Modbus/DLT645
Baud rate	N/A	9600\19200\38400\115200	9600\19200\38400\115200
SO output	Yes, with variable constant 100-2500imp/kWh Divisible by 10000 as default	Yes, with variable constant 100-2500imp/kWh Divisible by 10000 as default	Yes, with variable constant 100-2500imp/kWh Divisible by 10000 as default
Pulse width	SO:100-1000:100ms SO:1250-2500:30ms	SO:100-1000:100ms SO:1250-2500:30ms	SO:100-1000:100ms SO:1250-2500:30ms
Backlight	Blue	Blue	Blue
Li-Battery	N/A	N/A	YES
Multi-tariff	N/A	N/A	YES
Measurement Mode	1-total =forward 2-Total=reverse 3-Total =forward +reverse (default) 4-Total=Forward-Reverse	1-total =forward 2-Total=reverse 3-Total =forward +reverse (default) 4-Total=Forward-Reverse	1-total =forward 2-Total=reverse 3-Total =forward +reverse (default) 4-Total=Forward-Reverse
Button	Touch button	Touch button	Touch button
Button function	Page turning, setting, information display	Page turning, setting, information display	Page turning, setting, information display
Default setting	1000imp/kWh,100ms	1000imp/kWh,100ms 9600/NONE /8/1	1000imp/kWh,100ms 9600/NONE /8/1
Measurement Mode setting	Button	RS485 or Button	RS485 or Button
