The proliferation of EV and the full coverage of charging stations involve the measurement and charging of electric energy, which requires a large number of electric energy meters to measure electricity consumption. Aiming at the unique application scenarios of chargingstations, Yongtailong cooperated with chargingstation customers to plan and design a series of chargingstation meters. Single-phase AC din rail meter, three-phase AC din rail meter, DC din rail meter.
YTL DEM1E 230V Din-Rail 1P 1 module Dual Tariff MID B+D Certificate solar energy products Suppliers
Home / Products / electronic energy meter / YTL DEM1E 230V Din-Rail 1P 1 module Dual Tariff MID B+D Certificate solar energy products
DEM1E103
Contact Us
SPEC Download
YTL DEM1E 230V Din-Rail 1P 1 module Dual Tariff MID B+D Certificate solar energy products
- TechnicalParameters
- Description
- ConnectlonDiagram
- MeterDimensions
- ImpulseConnection
- det6
-
Content
Parameters
Standard:
EN50470-1/3
Rated Voltage:
230V
Rated Current:
0,25-5(30)A,0,25-5(32)A,0,25-5(40)A,0,25-5(45)A,
Impulse Constant:
1000 imp/kWh
Frequency:
50Hz
Accuracy Class:
B
LCD Display:
LCD 5+2 = 99999.99kWh
Working Temperature:
-25～70℃
Storage Temperature:
-30~70℃
Power Consumption:
<12VA <1W
Average Humidity:
≤75% (Non Condensing)
Maximum Humidity:
≤95%
Start Current:
0.004Ib
Case Protection
IP51 indoor
-
Content
Parameters
Standard:
EN50470-1/3
Rated Voltage:
230V
Rated Current:
0,25-5(30)A,0,25-5(32)A,0,25-5(40)A,0,25-5(45)A,
Impulse Constant:
1000 imp/kWh
Frequency:
50Hz
Accuracy Class:
B
LCD Display:
LCD 5+2 = 99999.99kWh
Working Temperature:
-25～70℃
Storage Temperature:
-30~70℃
Power Consumption:
<12VA <1W
Average Humidity:
≤75% (Non Condensing)
Maximum Humidity:
≤95%
Start Current:
0.004Ib
Case Protection
IP51 indoor
-

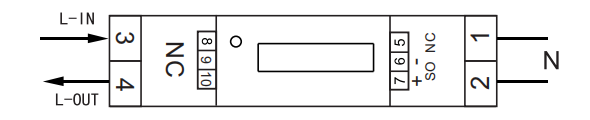

DEM1E001
DEM1E003/103
-
Height 90mm
Width 18mm
Depth 72mm
-
It requires an experienced electrician or professional to install energy meter, and the user guide shall be completely read;
During the installation process, if the meter case has obvious damage marks caused by a violent impact or fall, please do not install, or power up, and please promptly contact with us;
The energy meter is inspected before leaving the factory and can be installed and used directly; The meter should be installed in an indoor or outdoor meter box.The mounting base shall be fixed on a sturdy and refractory wall without corrosive gas in the air;
The mounting base shall be fixed on a sturdy and refractory wall with no corrosive gas in the air; The meter shall be wired according to the wiring diagram on terminal case, preferably by copper wire or copper wiring head.
