EMi10.1G-W is intelligent single phase multi-function sensor with WIFI&RS485, which includes electricity measurement,switch control,safety alarm,energy consumption monitor, timing functions and so on. The application is for various of electricity equipment, electro mechanical equipment.
Slow EV Charger Small Size Single Phase Fcatory Watt Hour Meter Biphasic RF Meter Suppliers
Home / Products / energy saving / Slow EV Charger Small Size Single Phase Fcatory Watt Hour Meter Biphasic RF Meter
D119033
Contact Us
SPEC Download

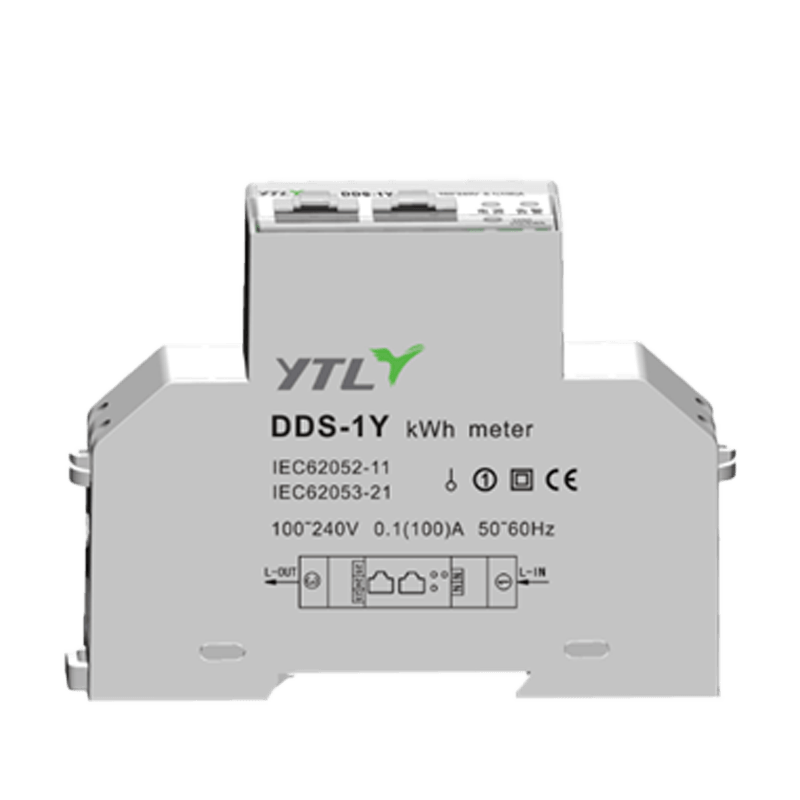

Slow EV Charger Small Size Single Phase Fcatory Watt Hour Meter Biphasic RF Meter
- Technical Parameters
- Description

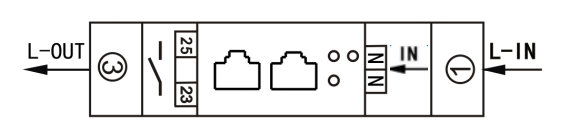

- Connectlon Diagram
- Meter Dimensions
- Impulse Connection
- det6
-
Voltage: 220V±10V
Current: 5（100）A
Accuracy class: Active0.5，Reactive 1.0
Standard: IEC62052-11、IEC62053-21
Frequency: 50Hz Impulse constant: 1000imp/kWh
Display: LCD5+1
Power consumption: ≤8VA ≤0.4W
Starting current: 0.004Ib
Temperature range: -25～70℃ Flashing red: Impulse indication，width=80ms Average humidity value of year: 75% Maximal humidity value: 95% -

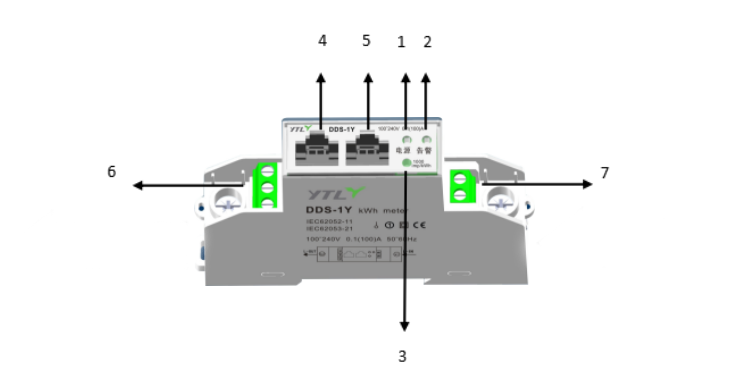

1:Power/alarm indicator2:Communication indicator
3:Impulse indicator
4,5:485 port
6:Switching value single outpu7:Neutral line connection terminal
8:In/out terminal
-
-
Height 900 mm
Width 18 mm
Depth 72 mm -
The sensor installation requires experienced electricians or professionals, and be sure to read this user guide;
In the process of installation, if the shell is obviously damaged by severe impact or fall, please do not install, power on, and contact our company in time;
The sensor passes the outgoing inspection and is sealed with lead, which can be installed and used directly.
- https://hqcdn.hqsmartcloud.com/ytl-e/2022/07/07/单相智能电力传感器zd119033产品说明书20180213.pdf
