This is a multi-functional smart power security monitoring device. It is able to monitor the real time cable temperature and leakage. Data can be uploaded on time, and real time monitoring of power consumption, abnormal conditions in a timely alarm manner. This can help the users better to manage the regional electricity security.
Single Phase Leakage Current Detection Collecting sample Company
- Technical Parameters
- Description

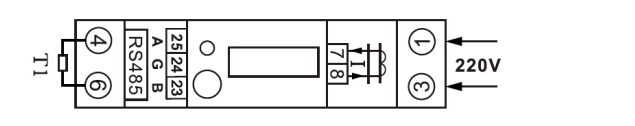

- Connectlon Diagram

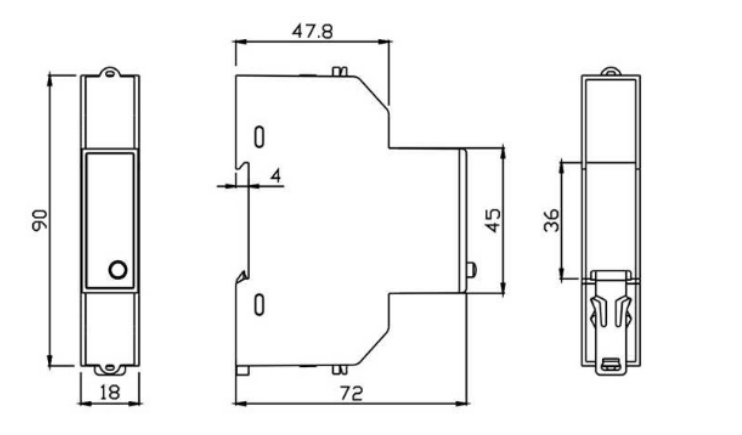

- Meter Dimensions
- Impulse Connection
-
Auxiliary power supply range：
175~265VAC Standard：
GB 14287.2 GB 14287.3 Frequency：
50Hz Power consumption：
≤8VA ≤0.4Wh Temperature detection range：
-50~150℃ Current leakage detection range：
20~1000mA Current leakage CT models：
0~100A（2000:1） Display：
temperature LCD3+1current leakage LCD1+3
Device working temperature range：
-20～70℃ Average relative humidity：
75% Maximum humidity value：
95% -
A multi-functional button
Material
Base PC+ABS
Cover PC+ABS
Terminal cover PC+ABS
Hook ABS
-
-
Height 90.0mm
Width 18mm
Depth 72mm
Weight 0.12kg（net weight）
-
The energy meter shall not be subjected to severe shock in transportation and storage, and shall be transported and stored in accordance with the provisions of GB13384-2008 "general technical conditions for instrumentation packaging";
Energy meter should be stored in the original packaging, the temperature range of the local environment is 0-40℃, the relative humidity is not more than 85%, the air is free of corrosive gas; The energy meter is kept in the warehouse, should be placed on the bench, stacked height does not exceed 10 cartons, after unpacking, the single packaging of the energy meter stacking height does not exceed 5 layers.
-
