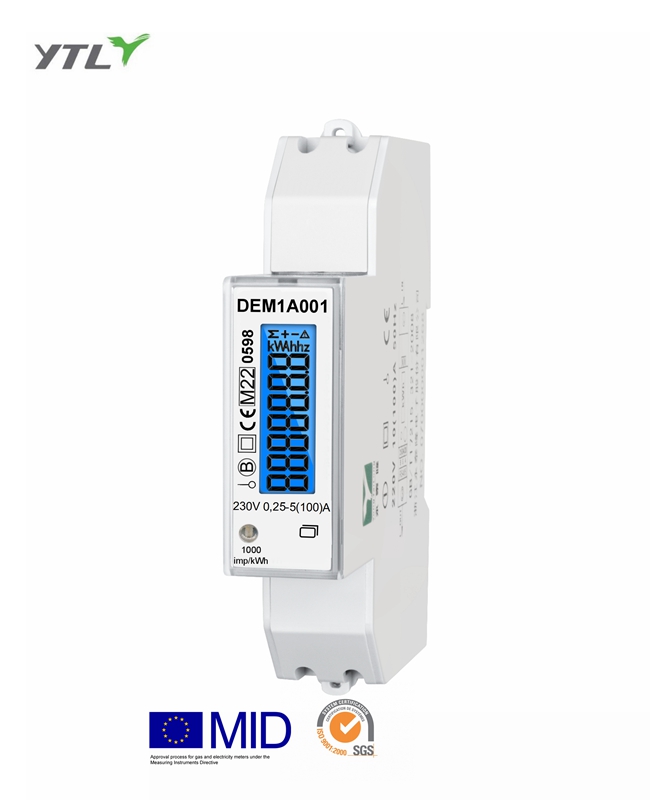

RS485 Modbus Protocl Active Single Phase AC Grid Electricity Meter

This is a rail-mounted single-phase two-wire electronic active energy metering device with RS485 communication, in line with the MODBUS-RTU protocol.

Its performance standard conforms to IEC 62052-11, IEC 62053-21 international standards of the class 1 single-phase active energy meter related technical requirements, can directly and

accurately measure the rated frequency of 50Hz-60Hz single-phase AC grid in the load of active energy consumption.

It is characterized by good reliability, small size, light weight, beautiful appearance and easy installation.

TechnicalParameters
Description
ConnectlonDiagram
MeterDimensions
ImpulseConnection
det6

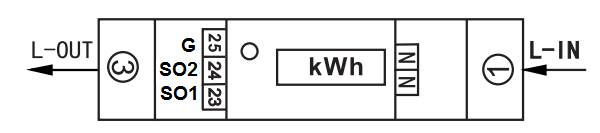

Powering up the metering device by properly connecting it to a computer or a communicable device according to the

wiring diagram.

Initial address of the metering device to 1.

Broadcast address of 0.

Software Please use the debugging software provided by our company.

When writing operation, you must first press and hold the SET (set) button. (SET button is 9 in the wiring diagram above, press and hold it with a hard object when setting the meter address and power level.)

Translated with www.DeepL.com/Translator (free version)
