Established in 2000, Zhejiang Yongtailong Electronic Co., Ltd. is located in the center of Shanghai, Hangzhou and Suzhou cities. YTL is a professional China YTL Two Phase Three Wire Big counter Electricity Meter Suppliers and YTL Two Phase Three Wire Big counter Electricity Meter Company. With more than 20 years of energy metering experience, we devote ourselves to providing competitive projects and creating value for customers. YTL was one of the first companies in the domestic market with which had an internal R&D department as well as international sales business. Since our foundation in 2000 we have grown to a manufacturer which complies and meet to many specifications from our national and international partners. At present our export volume makes us a leading company for technology and product export to more than 50 countries throughout the world. With provincial high-tech enterprise R&D center, YTL is the Top 100-enterprise with most investment value in Zhejiang. And“Yongtailong”is the famous brand of Zhejiang. For any new products of customers, we will communicate with customers very professionally, listen to their opinions and give useful suggestions to ensure that excellent quality products are made.
YTL Two Phase Three Wire Big counter Electricity Meter Suppliers
.png)

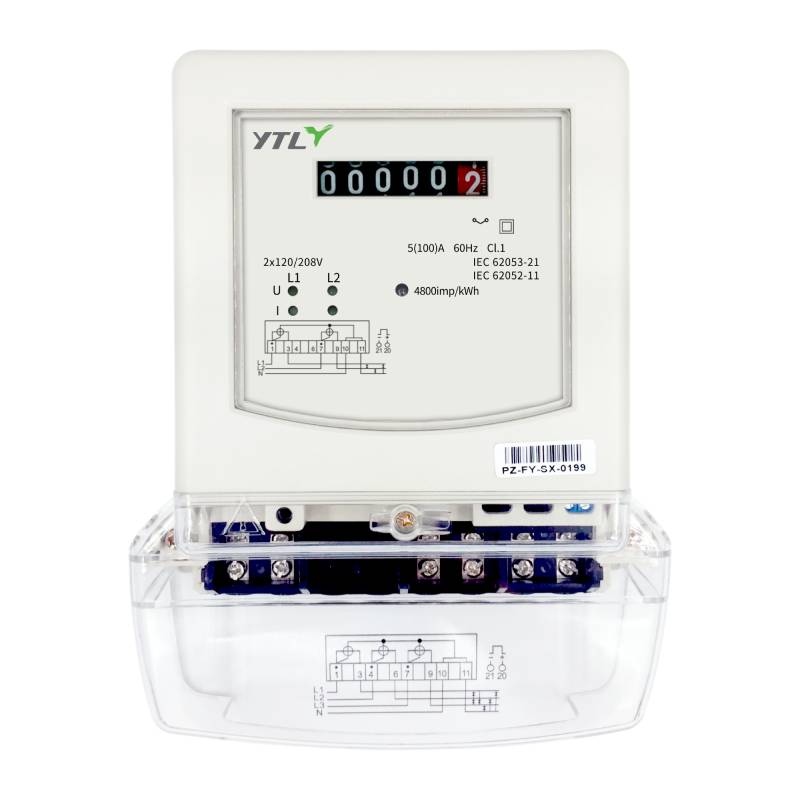

YTL Two Phase Three Wire Big counter Electricity Meter
This meters can be mounted in two ways: wall mounted and Din-Rail installation. It can measure active and reactive energy as well as monitoring grid parameter two phase three wires network. It adopts new technology of shunt sampling.The power consumption value is displayed in the form of a counter, and the counter uses a non-reverse technology to prevent the counter from reversing.
- Technical Parameters
- Meter Dimensions
- Diagram for installation
- det6
-
Voltage 3*120V/208V Current 5(100)A Accuracy class 1.0 for active Frequency 60HZ Impulse constant 4800imp/kWh Display counter 5+1 Power consumption ≤10VA Starting current 0.4%Ib Operating temperature -20—70℃ Storing temperature -25—85℃ Relative humidity ≤75% Standard IEC 62052-11:2003 IEC 62053-23:2003 IEC 65053-21:2003 Impulse output IEC 62053-31 1998 Protection degree IP54(indoor) -
-
