This is a three-phase, four-wire rail-mounted metering device with infrared and RS485 communication (MODBUS protocol and 645 protocol optional), with built-in 90A relay, which can
directly and accurately measure the active power consumption of loads in the three-phase AC grid with rated frequency of 50Hz. With good reliability, extremely small size, light weight,
beautiful appearance, easy installation, etc.
Modbus Protocol And 645 Protocol Built-In 90A Relay Three Phase Mounted Metering Device Company
Home / Products / multi-function energy meter / Modbus Protocol And 645 Protocol Built-In 90A Relay Three Phase Mounted Metering Device
D518010-01
Contact Us
SPEC Download
Modbus Protocol And 645 Protocol Built-In 90A Relay Three Phase Mounted Metering Device
- TechnicalParameters
- Description

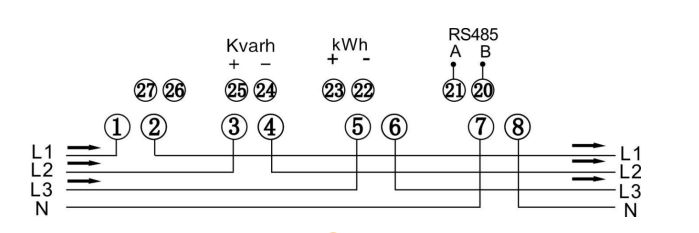

- ConnectlonDiagram
- MeterDimensions
- ImpulseConnection
-
Voltage:
3*220/380V
Current:
10（80）A， 10（60）A
Accuracy class:
6400imp/kWh
Standard:
IEC62052-11, IEC62053-21 Frequency:
50Hz Impulse constant:
10000imp/kWh Display:
LCD5+3 （LCD6+2，LCD7+1，LCD8+0)
Temperature range:
-20～70℃ Relative Humidity:
75%
-
Material
1.base: Gray flame retardant ABS
2.cover: Gray flame retardant ABS
3.terminal:Gray flame retardant ABS
4.hook: Gray flame retardant ABS -
-
-1.jpg?imageView2/2/format/jp2)
Height 115mm
Width 122.5mm
Depth 65mm
-
Measuring devices should not be subjected to severe shocks during transportation and storage, and should be transported and stored in accordance with the provisions of GB13384-2008 "General Technical Conditions for Instrument Packaging".
Preservation of measuring devices should be in the original packaging, preserved in a local environment with a temperature range of -40-80C, relative humidity of not more than 85%, and no corrosive gases in the air.
Metering devices are kept in the warehouse, should be placed on a pedestal, stacked at a height of no more than 10 boxes, after unpacking, a single package of measuring devices stacked at a height of no more than 5 layers.
