The rail STS smart meter, using STS standard transmission protocol, uplink communication using IDIS communication protocol, is the leading mainstream product in the market. From ordinary STS meters, anti-tamper STS meters, STS communication meters to the current STS smart meters, Yongtailong has carried out iterative research and development and formed multiple product
YTL Prepaid Energy Meter Split Type 1P 2 Module Smart Watt Hour Meter Module Suppliers
Home / Products / Applications / STS prepaid meter / YTL Prepaid Energy Meter Split Type 1P 2 Module Smart Watt Hour Meter Module
K019-07-RS485
Contact Us
SPEC Download

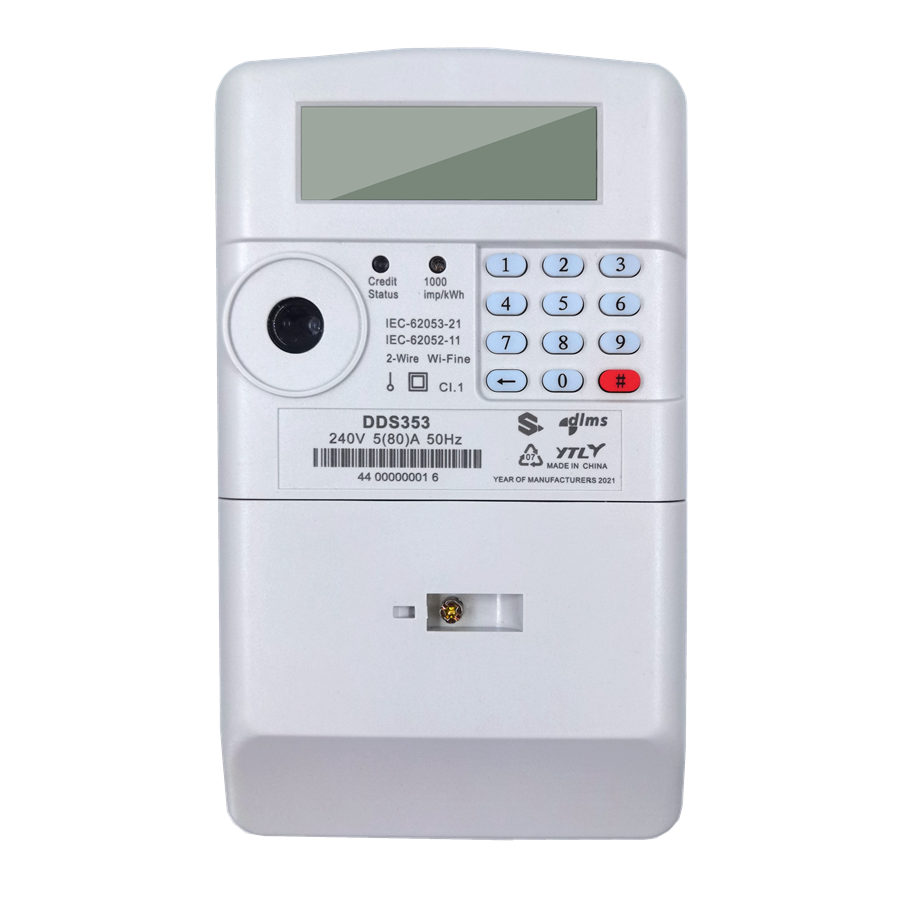

YTL Prepaid Energy Meter Split Type 1P 2 Module Smart Watt Hour Meter Module
- Type
- Features
- Technical Parameters
- Description of Functions
- Meter Dimensions
- det6
-
Type Communication CIU Communication Function
K019-01-IR IR / Build in Rely,Shunt sampling,
1 Tariff,Event alarmK019-02-PLC PLC / Remote upgrades K019-03-PLC PLC / Absolute measurement K019-04-PLC PLC / Different measurements way,
Absolute measurementK019-05-PLC PLC / Build in Rely,Absolute measurement,
self diagnosis,Open cover detectionK019-06-RS485 RS485/Twisted Pair wire / Active , Reactive measurement K019-07-RS485 RS485/Twisted Pair wire / Build in Rely,Absolute measurement,
self diagnosis,Event alarmK019-08-Wifine Wifine / Different measurements way,Neutral
measurement,Absolute measurement,
Event record,Anti-tamper,Build in Rely,
4 TariffK019-09-Wifine Wifine Wifine Different measurements way,Neutral
measurement,Absolute measurement,
Event record,Anti-tamper,Build in Rely,
8 Tariff,Load profileK019-10-Wifine Wifine Wifine/ Bluetooth Different measurements way,Neutral
measurement,Absolute measurement,
Event record,Anti-tamper,Build in Rely,
8 Tariff,Load profile -
- Remote reading by RS485communication;
- User can manage meter efficiently by IR communication;
- Various anti-tampering methods;
-
Rated voltage: 230V
Rated current: 5(80) A
Constant: 1000imp/kWh
Display: LCD 6+2
Relative humidity: ≤85%
Rated frequency: 50Hz
Accuracy degree: 1.0
Power consumption: 0.96W/2.524VA
Standard:
Functional test: IEC62052-11:2003
Impulse output: IEC62053-21:2003
Protection degree: IP51
Communication protocol: DLMS
-
Tampering Protection Function:
1 bypass power detection, record events and LED alarm.
2 open terminal cover detection, LCD alarm display and record the event.
3 record external magnetic field event.
4 record over voltage and low voltage event.
5 self-diagnostic: EEPROM check, battery alarm.
display details:
Total active energy power, voltage effective value, current effective value, average active energy on second, current date, current time.
communication:
- RS485 communication, used for remote reading, remote controlling and local reading.
- IR communication, used for local setting and reading.
- M-BUS communication, used for reading and controlling the water meter.
events details:
Over voltage, low voltage, bypass, current reverse, power off, open terminal cover.
measurement:
Single phase active energy measurement, keep records of power, average active energy on second, voltage effective value, current effective value, demand.
-
Material
Case: PC

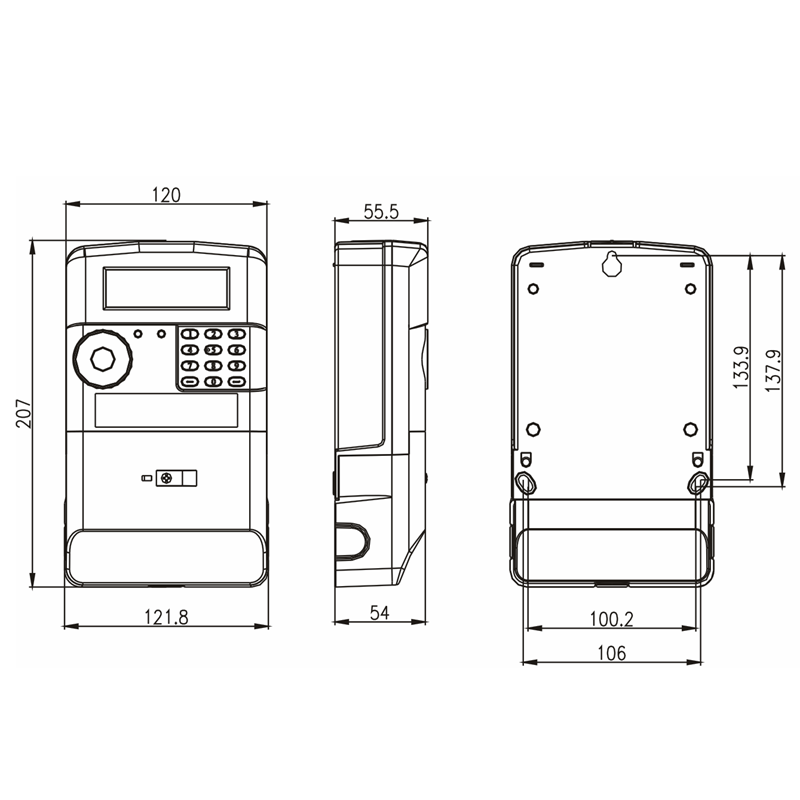

Dimension
Height: 207mm
Width: 121.8mm
Depth: 55.5mm
