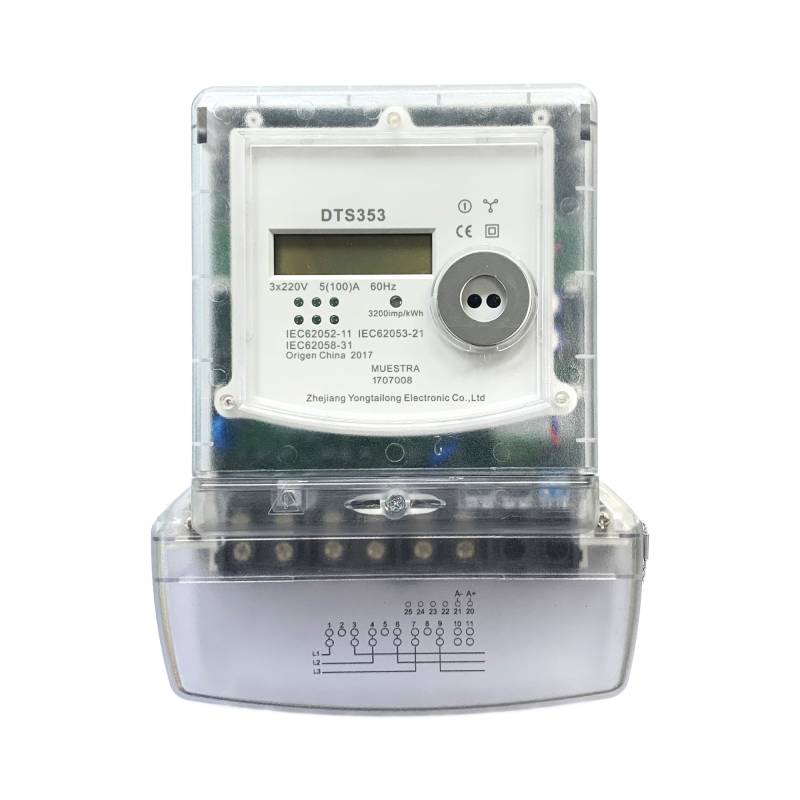

Three phase wall mounted electric meter, adopt LCD diplay. The energy meter is designed in comply IEC 62052-11 and IEC 65053-21, with IR communication which can be used for local parameter setting and data reading.
Three phase wall mounted electric meter, adopt LCD diplay. The energy meter is designed in comply IEC 62052-11 and IEC 65053-21, with IR communication which can be used for local parameter setting and data reading.
Voltage of D521033: 3*120/208V AC±20%
Voltage of D521034: 3*220/380V AC±20%
Current: 3*5(100) A
Accuracy class: 1.0
Standard: IEC62052-11,IEC62053-21
Frequency of D521033: 60Hz
Frequency of D521034: 50Hz
Impulse constant: 800imp/kWh
Display: LCD 6+1
Power consumption: ≤8VA ≤1Wh
Starting current: 0.004Ib
Temperature range: -20~70℃
Average humidity value of year: 75%
Maximal value: 95%
*kWh measurement.
*Optical port according to IEC1107 mode A.
*Long life LCD
*Optional function: super capacitor
*Adopt three shunts solution
