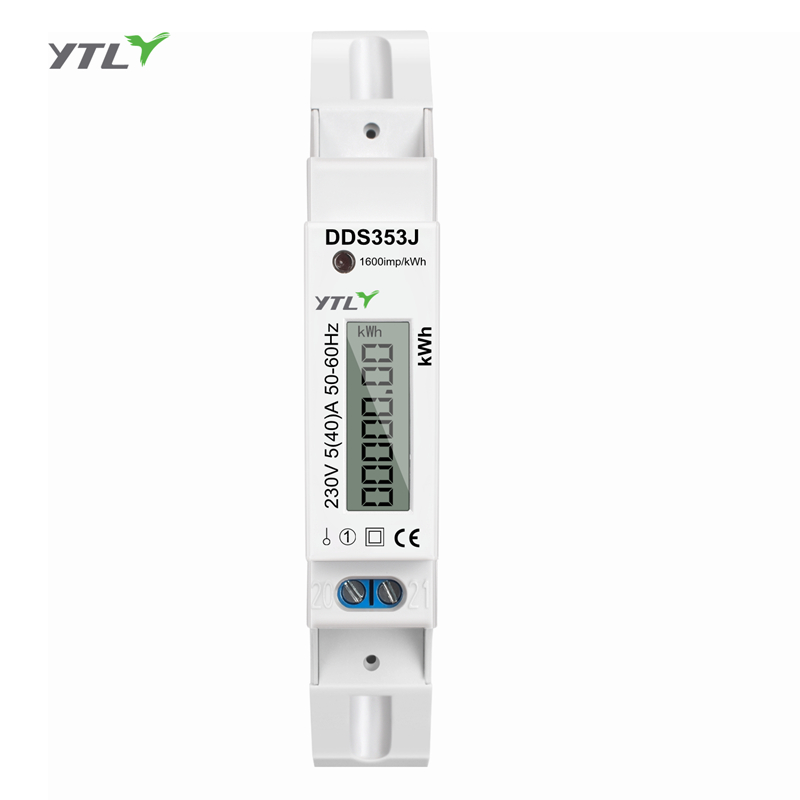

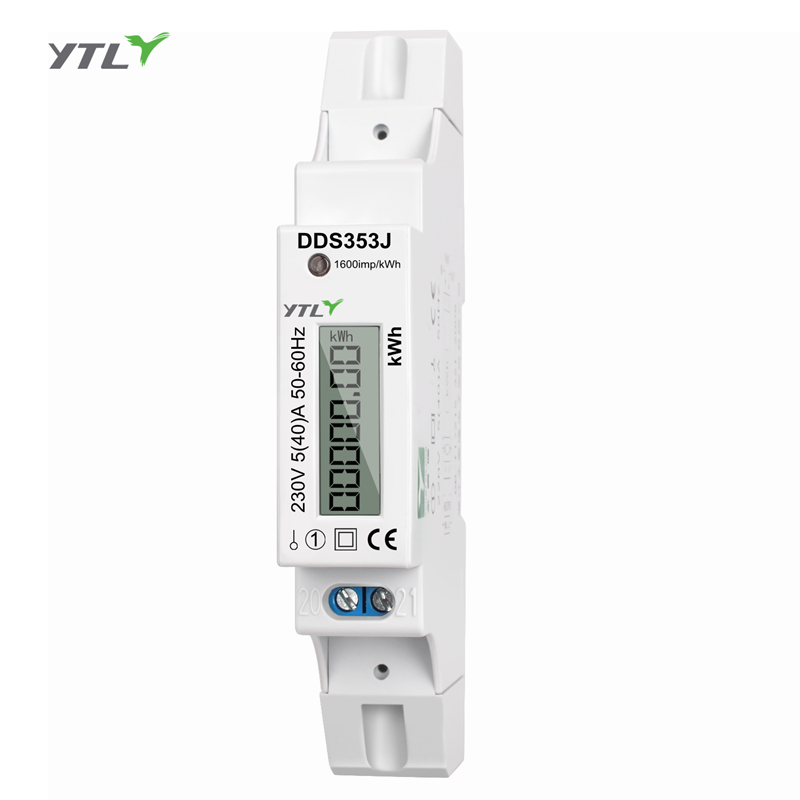

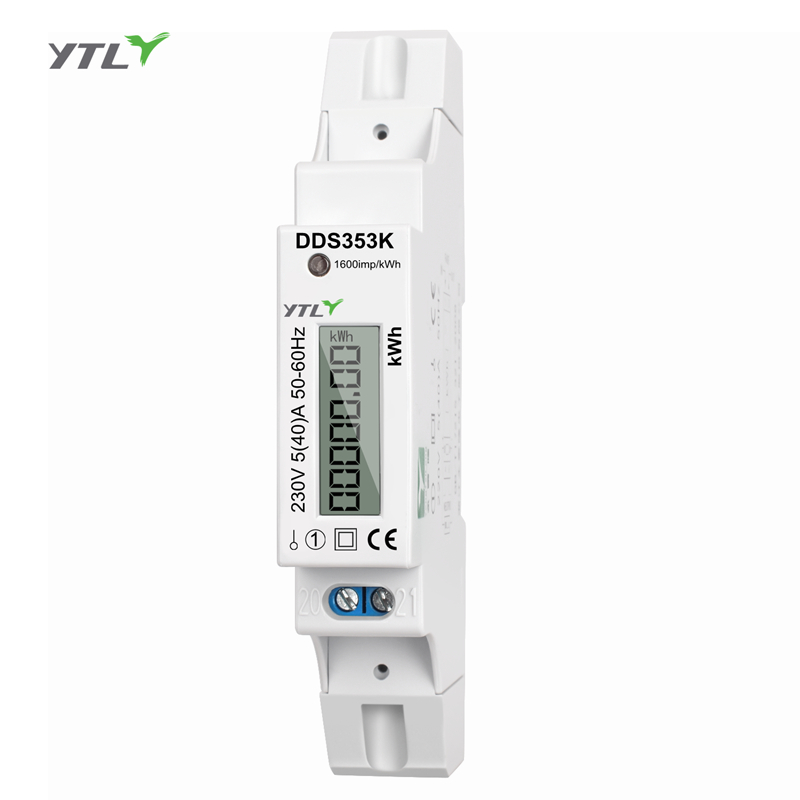

It is a simple single phase one module Din-Rail meter, which only have kWh measurement. It is widely used in Sub-metering system. This meter is very popular worldwide. Moreover, it is convenient to install only 0.0907kg and 18mm width.YTL 1000imp/kwh Din-Rail 1P 1 Wire Dual Tariffs MID B+D Certified Solar Energy Charge
Household Wholesale Manufacture Simple Single Phase Electric Meter Electricity Meter Suppliers
Home / Products / electronic energy meter / Household Wholesale Manufacture Simple Single Phase Electric Meter Electricity Meter
D111001
Contact Us
SPEC Download
Household Wholesale Manufacture Simple Single Phase Electric Meter Electricity Meter
- TechnicalParameters
- ConnectlonDiagram
- Description
- MeterDimensions
- ImpulseConnection
- det6
-
Voltage: 230V Current: 5(50)A Accuracy class: 1.0 Standard: IEC62052-11, IEC62053-21 Frequency: 50-60Hz Impulse constant: 1000imp/kWh Display: Counter 5+1 = 99999.9kWh Power consumption: 8VA 0.4W Starting current: 0.004Ib Temperature range: -20～65℃ Average humidity value of year: 75% Maximal humidity value: 95% -

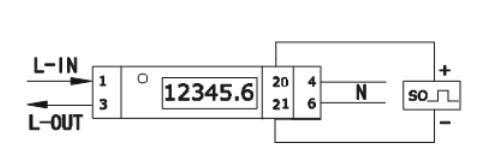

Note: 20 and 21 are for impulse output, used for calibrating accuracy.
-

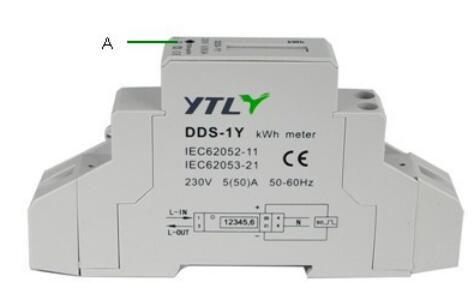

A Impulse OutputMaterialCase PC+ABSTerminal Cover PC+ABSBase Bottom PC+ABS -

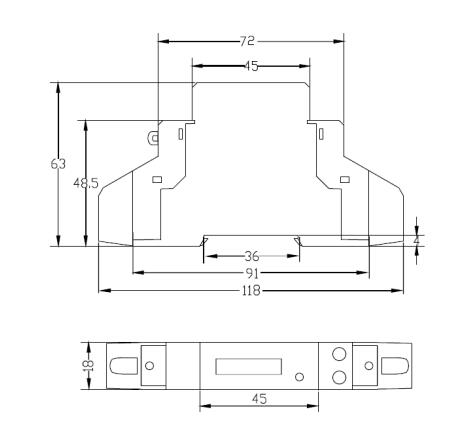

Height 118mm
Width 18mm
Depth 63mm
Weight 0.0907kg(Net)
-
Voltage 12~27V, current≤27mA, max length of lead:20m
Impulse width=90ms, connect to terminal 20&21
Limits of values: max 60VDC, max 50mA
- https://hqcdn.hqsmartcloud.com/ytl-e/2022/07/06/dds353.pdf
