Established in 2000, Zhejiang Yongtailong Electronic Co., Ltd. is located in the center of Shanghai, Hangzhou and Suzhou cities. YTL is a professional China NB-IoT Smart Street Light Single Light Controller Suppliers and NB-IoT Smart Street Light Single Light Controller Company. With more than 20 years of energy metering experience, we devote ourselves to providing competitive projects and creating value for customers. YTL was one of the first companies in the domestic market with which had an internal R&D department as well as international sales business. Since our foundation in 2000 we have grown to a manufacturer which complies and meet to many specifications from our national and international partners. At present our export volume makes us a leading company for technology and product export to more than 50 countries throughout the world. With provincial high-tech enterprise R&D center, YTL is the Top 100-enterprise with most investment value in Zhejiang. And“Yongtailong”is the famous brand of Zhejiang. For any new products of customers, we will communicate with customers very professionally, listen to their opinions and give useful suggestions to ensure that excellent quality products are made.
NB-IoT Smart Street Light Single Light Controller Suppliers

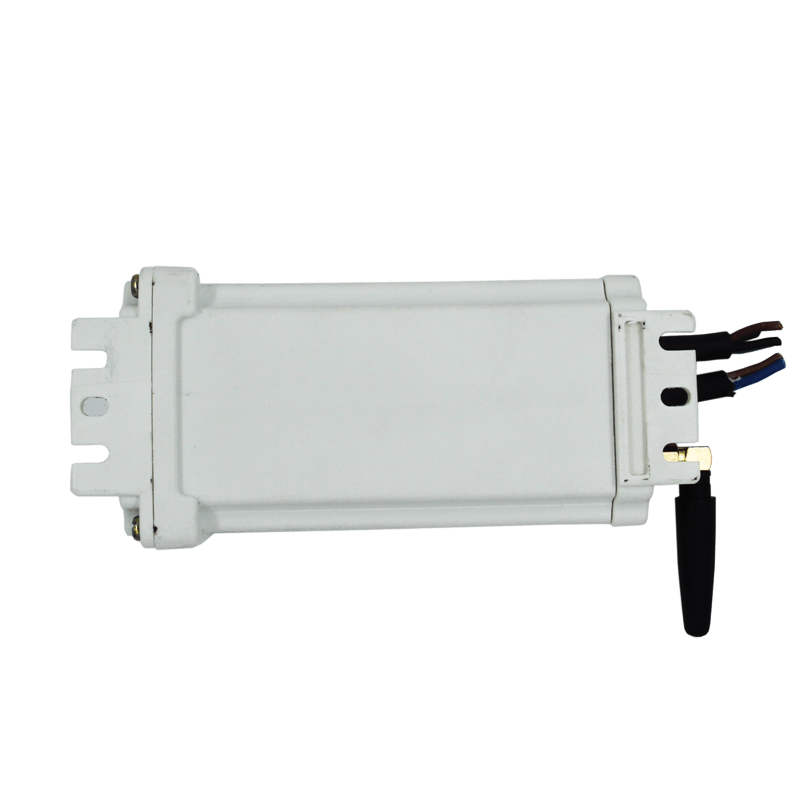

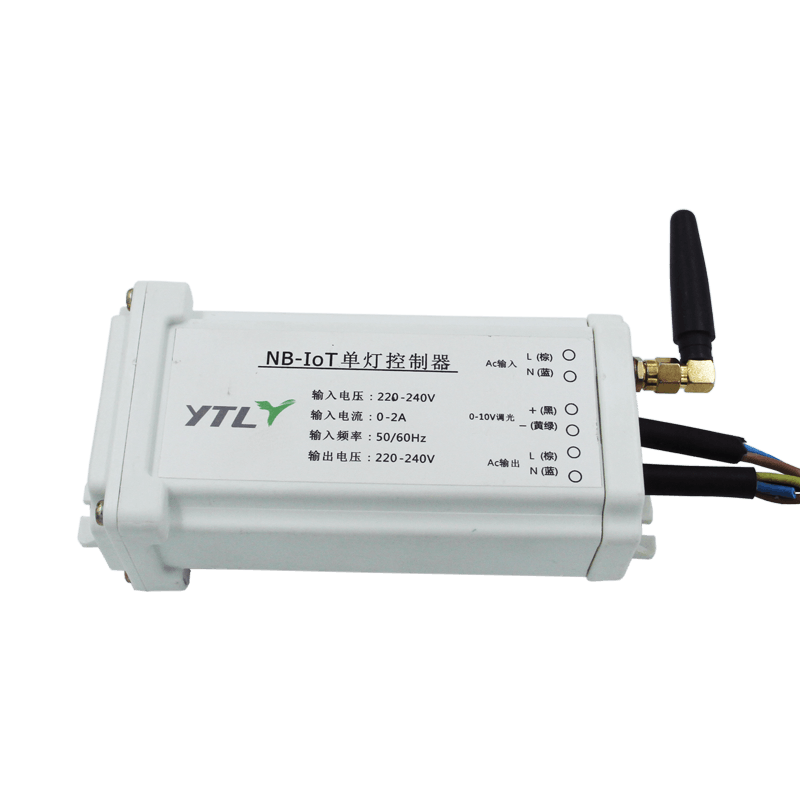

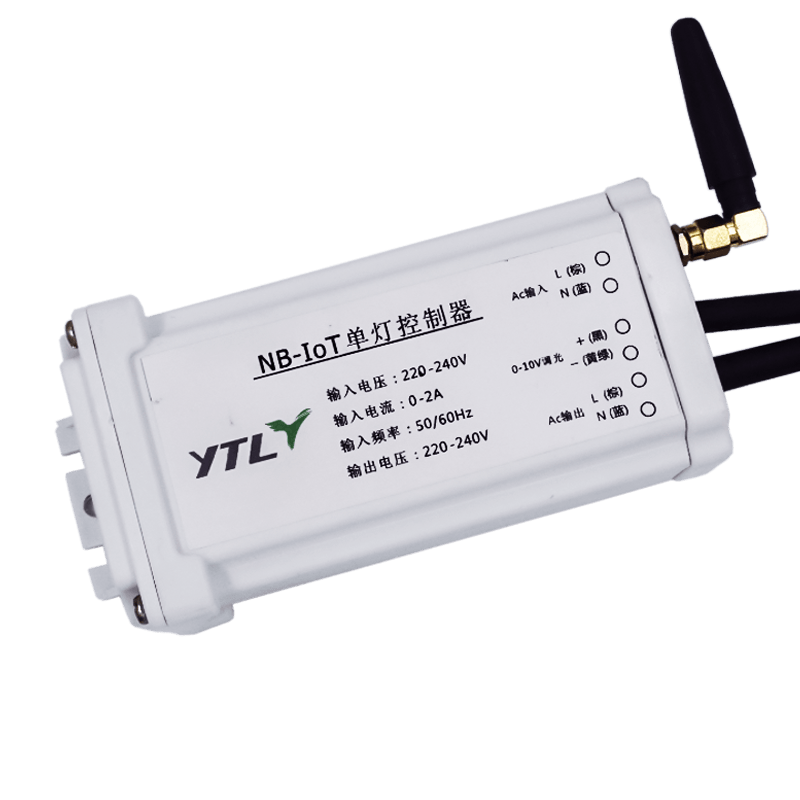

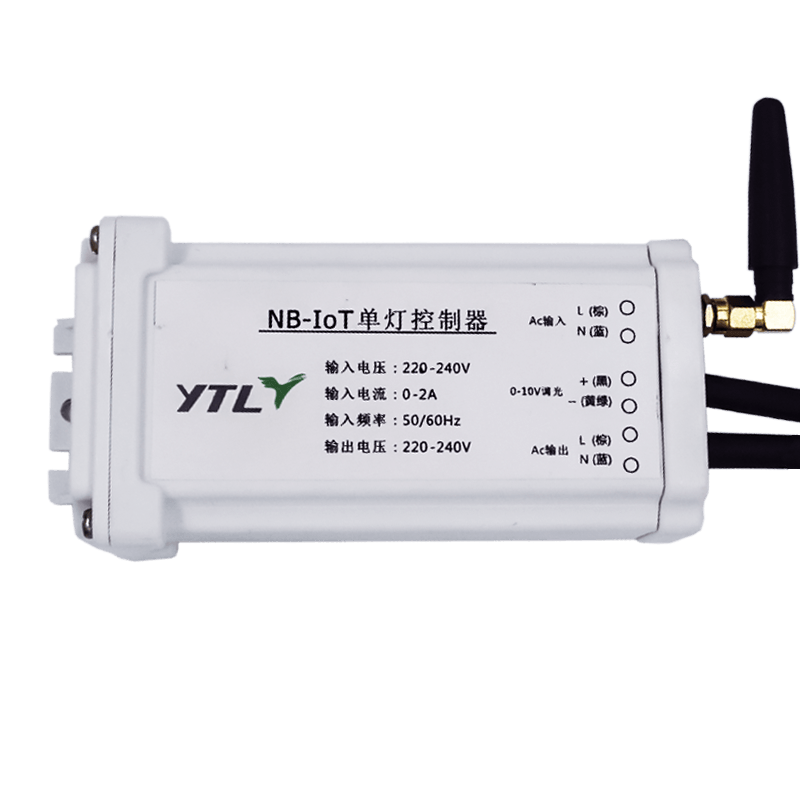

NB-IoT Smart Street Light Single Light Controller
NB-IOT single lamp controller is used for smart street lamp management. Street lighting is an requisite public facility in people's daily life, and traditional LED energy saving can no longer meet the needs of large-scale power saving; Manual control and street lamp inspection are also a task that requires a lot of manpower and material resources. More efficient management tools and energy-saving programs have become the focus of management's attention.
- TechnicalParameters

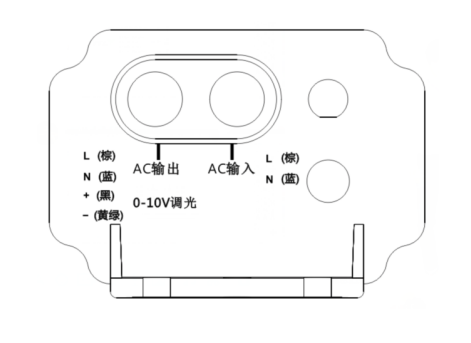

- ConnectlonDiagram
- MeterDimensions
- ImpulseConnection
- det6
-
items
discription
supply power
single phase supply power
supply voltage
220V±30%
frequency
50Hz±10%
power comsumpion
static power consumption≤1W
dynamic power comsumpion≤1.5W
upgoing channel
Lora
Downward communication
RS485(Optional）
control interface
0~10V
PWM
max load
10A
relay work life
10万次
work temperture
-40~85℃
work humidity
10% ~ 100%
electro magnetic compatibility
electrostatic discharge 8kV
high frequency electromagnatic field 10V/m
fast transient pulse train 4kV
surge ≤1W
-
-

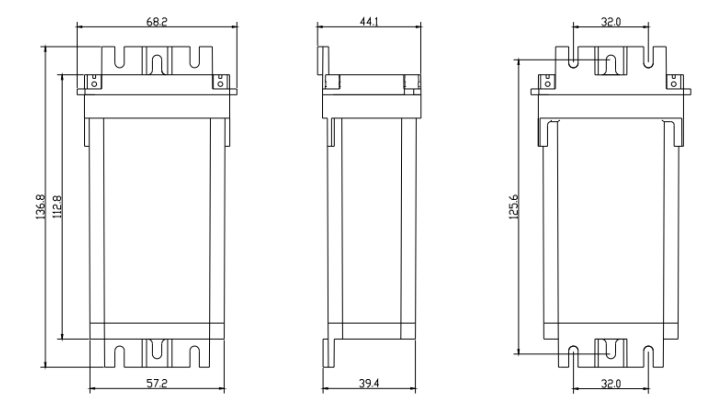

Longth 136.8mm
Wideth 68.2mm
Hight 44.1mm
-
Electric energy meters shall not be subjected to severe shock during transportation and storage, and shall be transported and stored in accordance with the provisions of gb13384-2008 general technical conditions of instrument packaging;
The energy meter should be stored in the original package, where the temperature range of the environment is 0-40c, the relative humidity should not exceed 85%, and there is no corrosive gas in the air.
Electricity meters shall be stored in the warehouse, and shall be placed on the platform. The stacked height shall not exceed 10 boxes. After unpacking, the stacked height of single packed electricity meters shall not exceed 5 layers.
-
