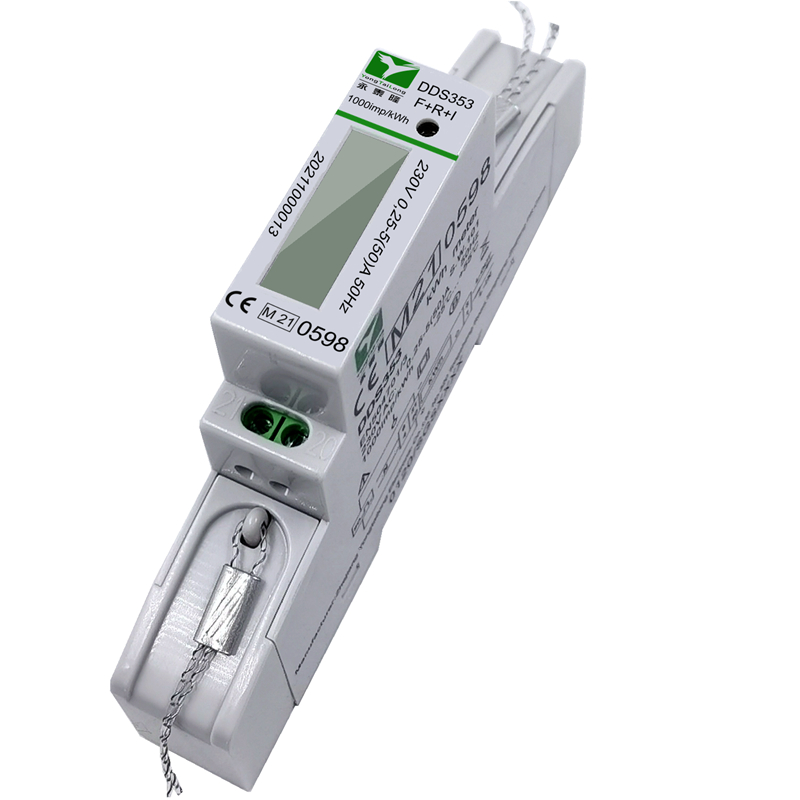

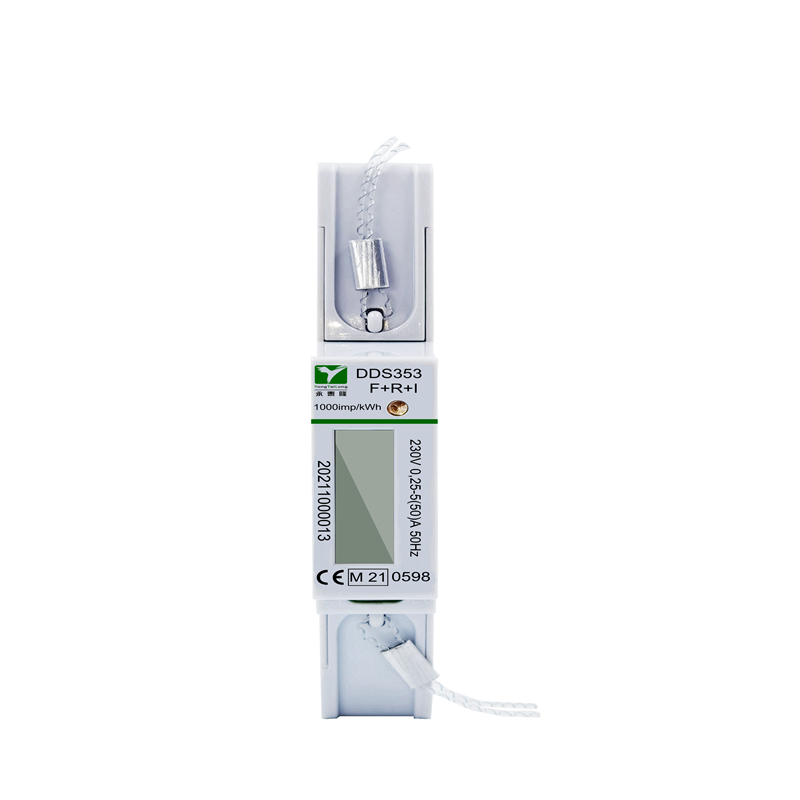

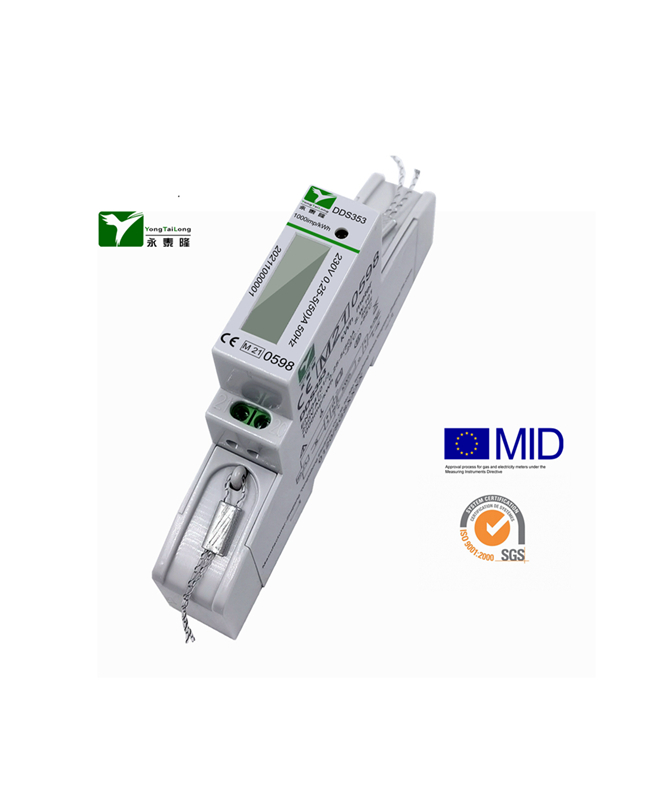

YTL DDS353 5(50)A DIN Rail 1P 1W kWh Meter Module

D112005

YTL DDS353 5(50)A DIN Rail 1P 1W kWh Meter Module

The cover is flame retardant ABS material to ensure safe use, protection class is IP51. The meter is designed with a pulse indicator on the panel, and the user can easily judge the size of the power load by flashing the pulse indicator.

Technical Parameters
Measurements

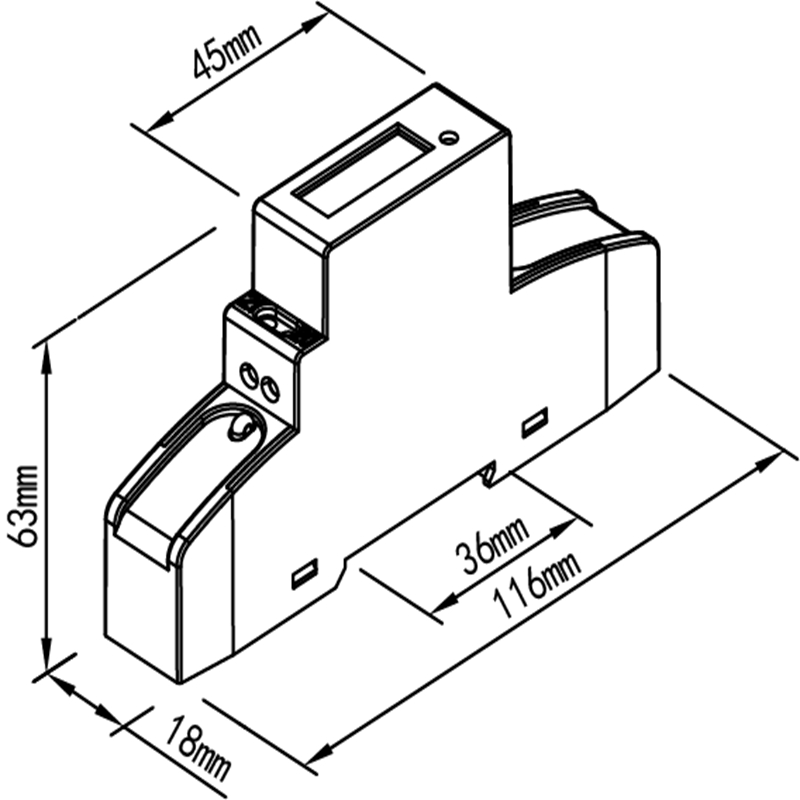

Meter Dimensions

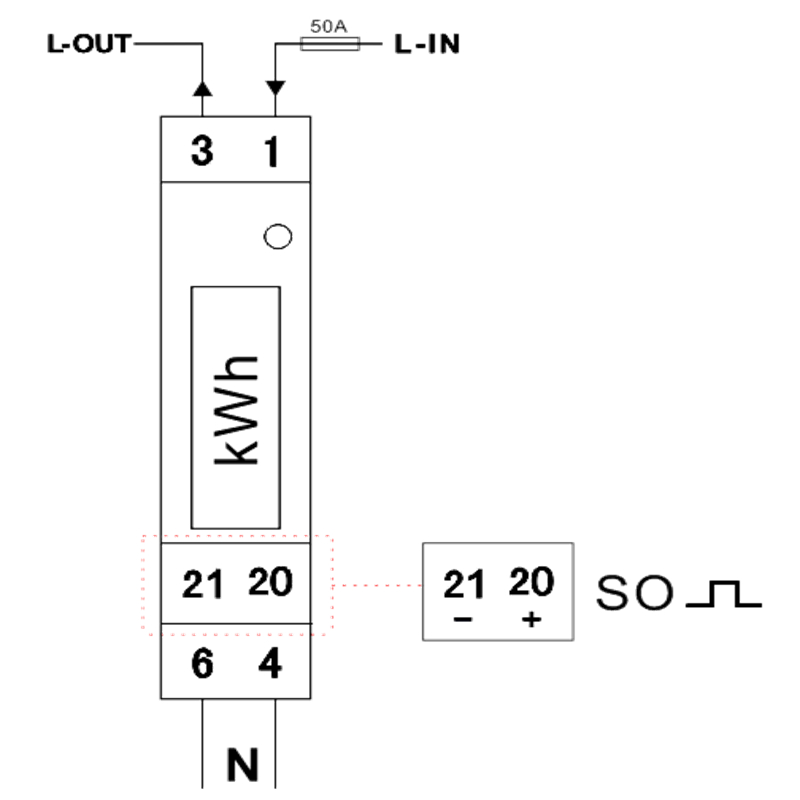

Diagram for installation
det6

https://hqcdn.hqsmartcloud.com/ytl-e/2022/07/06/dds353.pdf

Applications

View all applications

View all products

D118025-01

YTL Factory Smart Home Common Two Wire Electricity Meter
D118081

Pass-Through 230 Volts 100A Din Rail kWh Energy Smart Meter
D118080

YTL Single Phase Class B Energy Meter No communication
DEM1A series

RS485 Modbus Protocl Active Single Phase AC Grid Electricity Meter
DTS353F

Micro Grid Good Reliability Three Phase Power Meter
D119033

Slow EV Charger Small Size Single Phase Fcatory Watt Hour Meter Biphasic RF Meter
D119040

Battery Energy Storage System High Accuracy Watt Hour Meter
D149001

Panel Energy Meter Electronic Device Monitor Consumed kWh
DTS353F-2

Wholesale Supplier Quick EV Charger Safe Multifunction Three Phase Electricity Meter
J119008

Control Intelligent Street Light Real Time Concentrator with RS485 Communication
AMI Metering Prepaid Three Phase Suspension Energy Meter
STS Prepaid Single Phase Suspension Energy Meter

Welcome To A National High-tech Enterprise

Established in 2000, Zhejiang Yongtailong Electronic Co., Ltd. is located in the center of Shanghai, Hangzhou and Suzhou cities. YTL is a professional China YTL DDS353 5(50)A DIN Rail 1P 1W kWh Meter Module Suppliers and YTL DDS353 5(50)A DIN Rail 1P 1W kWh Meter Module Company. With more than 20 years of energy metering experience, we devote ourselves to providing competitive projects and creating value for customers. YTL was one of the first companies in the domestic market with which had an internal R&D department as well as international sales business. Since our foundation in 2000 we have grown to a manufacturer which complies and meet to many specifications from our national and international partners. At present our export volume makes us a leading company for technology and product export to more than 50 countries throughout the world. With provincial high-tech enterprise R&D center, YTL is the Top 100-enterprise with most investment value in Zhejiang. And“Yongtailong”is the famous brand of Zhejiang. For any new products of customers, we will communicate with customers very professionally, listen to their opinions and give useful suggestions to ensure that excellent quality products are made.

2000

Established In
500+

Employees
60+

Export Country
500+

Design Right Patent

YTL Honor

MID
KEMA
DLMS
IEC
KEMA
SGS

YTL News

View All News

How Can Multi-Function Energy Meters Optimize Energy Consumption?

2024-04-19

In an era where energy efficiency and sustainability are paramount concerns, the role of multi-function energy meters in optimizing energy consumption cannot be...
How smart meters achieve differentiated electricity billing

2024-04-18

The implementation of differentiated electricity billing by smart meters relies mainly on their advanced capabilities in measurement, communication, and data p...
The Accuracy Issue of Household Electric Meters

2024-04-16

IntroductionElectricity is an essential part of our daily lives, and the accurate measurement of electricity consumption is crucial for both consumers and utili...
How to Ensure Compliance with Industry Standards When Choosing a Smart Meter?

2024-04-12

Smart meters play a crucial role in accurately measuring and monitoring energy consumption, enabling utilities and consumers alike to make informed decisions ab...
Why does the modern agricultural sector need to use smart switches

2024-04-11

With the rapid development of technology, smart technology has gradually penetrated into various areas of our lives, and the modern agricultural sector is no ex...
Enlit Africa 2024-South Africa 21-23 ,May

2024-04-10

https://wearevuka.com/sponsor/zhejiang-yongtailong-electronic-co-ltd/Zhejiang Yongtailong Electronic Co., Ltd. as an Exhibitor at Enlit Africa 2024! Welcome to ...

Content	Parameters
Standard:	EN50470-1/3
Rated Voltage:	230V
Rated Current:	0,25-5(30)A,0,25-5(32)A,0,25-5(40)A, 0,25-5(45)A,0,25-5(50)A
Impulse Constant:	1000 imp/kWh
Frequency:	50Hz/60Hz
Accuracy Class:	B
LCD Display:	LCD 5+2 = 99999.99kWh
Working Temperature:	-25～55℃
Storage Temperature:	-30~70℃
Power Consumption:	<10VA <1W
Average Humidity:	≤75% (Non Condensing)
Maximum Humidity:	≤95%
Start Current:	0.004Ib
LED flash:	Impulse indication, pulse width = 80 ms

Meter Type	Measurement
DDS353	kWh Total =Forward energy+Reverse energy
DDS353AF	KWh Total=Forward energy only
DDS353F+R	1 = kWh total ( forward + reverse) 2 = kWh (forward energy [import]) 3 = kWh (reverse energy [export])
DDS353F-R	1 = kWh total (calculated by forward - reverse) 2 = V (Voltage) 3 = A (Ampere - current load) 4 = W (Watt - current active power) 5 = Hz (Frequency) 6 = PF (power factor)
DDS353AI	1 = kWh total ( forward + reverse) 2 = V (Voltage) 3 = A (Ampere - current load) 4 = W (Watt - current active power) 5 = Hz (Frequency) 6 = PF (power factor)
DDS353FI	1=Forward energy only 2= V (Voltage) 3= A (Ampere - current load) 4= W (Watt - current active power) 5= Hz (Frequency) 6 = PF (power factor)
DDS353F+R+I	1 = kWh total ( forward +reverse) 2 = kWh (forward energy [import]) 3 = kWh (reverse energy [export]) 4 = V (Voltage) 5 = A (Ampere - current load) 6 = W (Watt - current active power) 7 = Hz (Frequency) 8 = PF (power factor)
DDS353F-R-I	1 = Total Kwh（Forward - Reverse) 2 = Forwarder energy display 3 = reverse energy display 4 = V (Voltage) 5 = A (Ampere - current load) 6 = W (Watt - current active power) 7 = Hz (Frequency) 8 = PF (power factor)
