Smart Water Meter Reading and Billing solution- Zhejiang Yongtailong Electronic Co., Ltd

A. Pain points analysis:

1. Manual water meter reading and calculating water fees take huge workload and administrative costs.

2. Hard to call for water unpaid fees, water bills aren’t able to be paid remotely.

3. Difficulty in statistical reporting of water usage and reconciling finances.

4. Lack of remote monitoring methods and unable to recognize abnormal users.

B. System structure introduction:

‘Zhidian Micro-grids solution’ use IoT, Cloud computing, Big Data Analysis and other technical methods, remotely monitoring&analyzing and managing water resources in whole process. Making high efficiency in water usage, reduce loss and realize sustainable development. The system mainly includes metrological control layer, application acquisition layer and application management layer these three parts, realizing remote automatically water meter reading, mobile client prepayment, data records and paperless managements. It cooperates management software realizing the water meter system management, to improve water utilities power consumption better management level.

C. Functions introduction

‘‘Zhidian Micro-grids solution’ equips with the functions below:

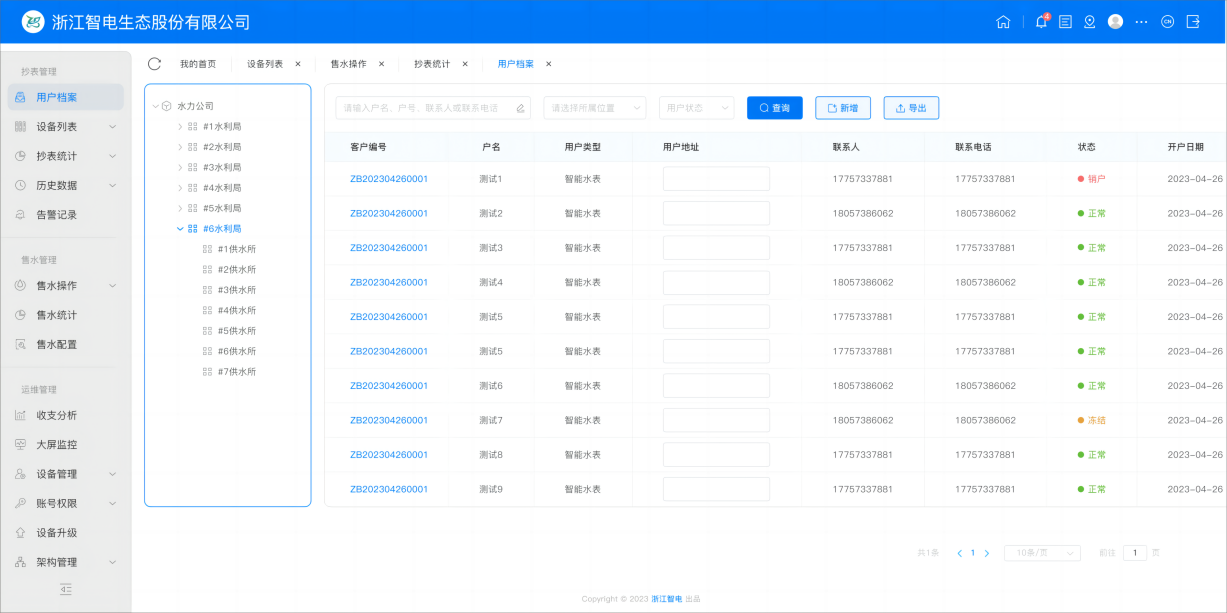

1. User documents management, supporting multiple people online simultaneously. It can set operating customized account, managing range and operating authorization.

2. Daily regulated time meter data reading and forming water consumption sheets. According the data form sheets automatically calculating each user’s fee, it’ll also the corresponding expenses are deducted from the user's balance.

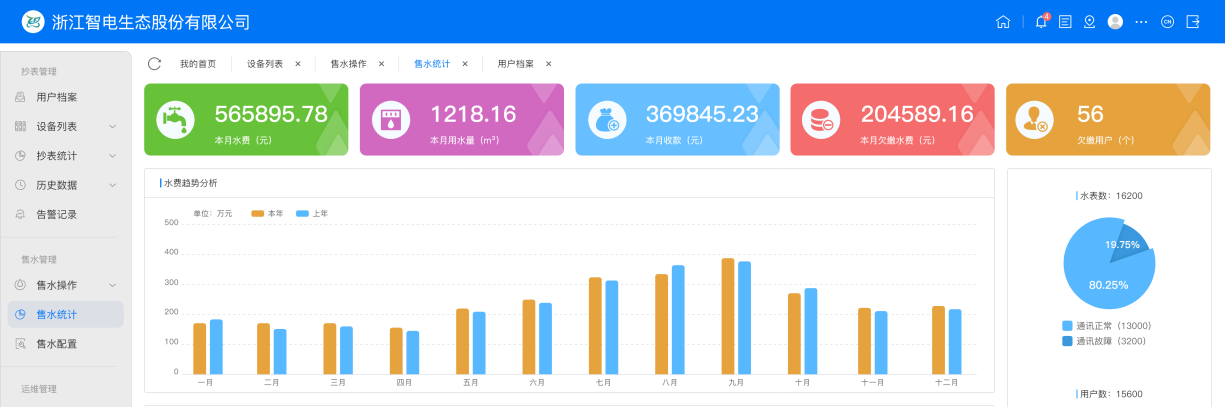

3. Water consumption trends can be seen on platform, predicting the trends and scheduling reasonably. You can also view the monthly water consumption, receivables, arrears and other statistical data, and generate corresponding reports to facilitate financial reconciliation

4. Real-time monitoring equipment running status. When comes to device exceptions, goes offline or balance runs out, it will alarm by sending message or by reminders from APP, avoiding affecting normal usage for users.

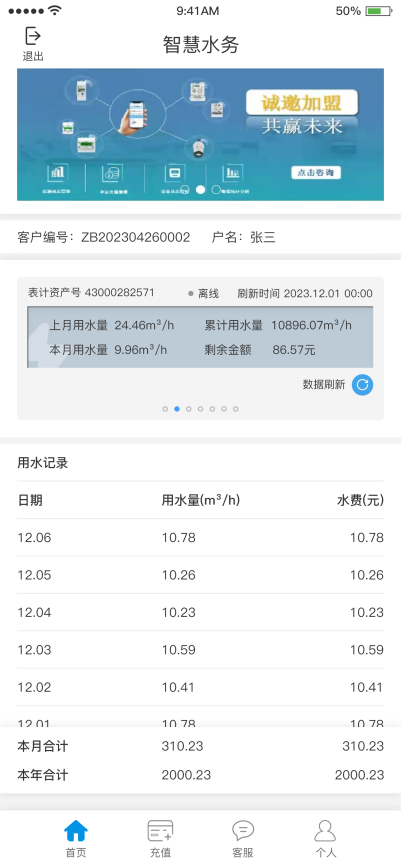

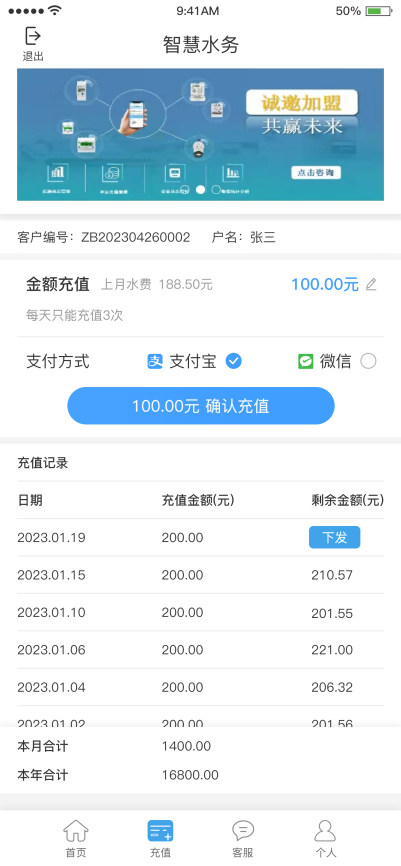

5. Users can check historical water consumption records on mobile client, if third-party payment is supported online recharge is also available.

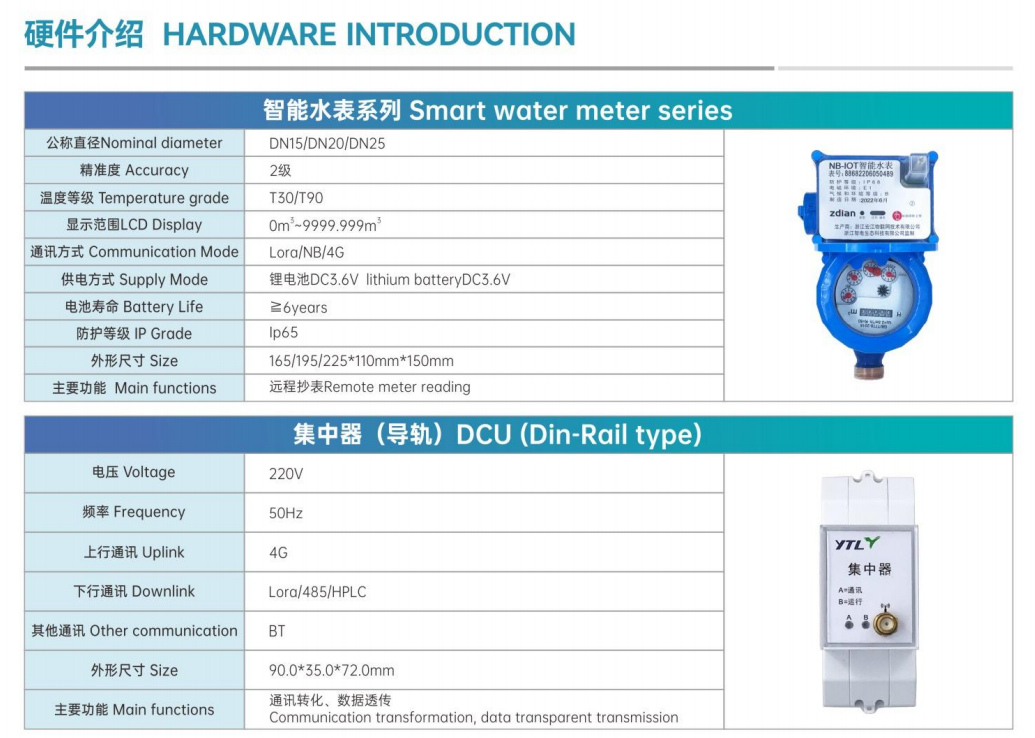

D. Devices Introduction

E. Applied Scenarios


综合商场Shopping mall	学校宿舍Dormitory

写字楼Office buildings	工业园区Industry Zone

农贸市场Agricultural markets	住宅小区Residential district
