Smart Meter Reading Solutions (Water Meter,Electricity meters)- Zhejiang Yongtailong Electronic Co., Ltd

ØPain points analysis

1. Large workload on manual reading on Water meter or Electricity meter and high costs on managements

2. Challenges in collecting unpaid water/electricity bills and can’t be paid or recharge remotely.

3. Difficulties in generating water/electricity usage statistics and in financial reconciliations.

4. Lack of remote supervision methods and difficulty in recognizing unusual clients

ØIntroduction on System Structure

’Zhidian Micro-Grid’——a set of ‘internet+new meter reading’ manage system, consisting of central administration PC(main station), intelligent prepaid equpment and smart phone Level 3 network. It has user managing, payment managing, maintenance and etc, realizing remote TOKEN dispatching and remote monitoring&maintenance. Solving series managing problems like meter reading ad unpaid bills, improving the data accuracy, minimizing labour costs, maximizing managing efficiency bring the advantages to our Micro-Grid.

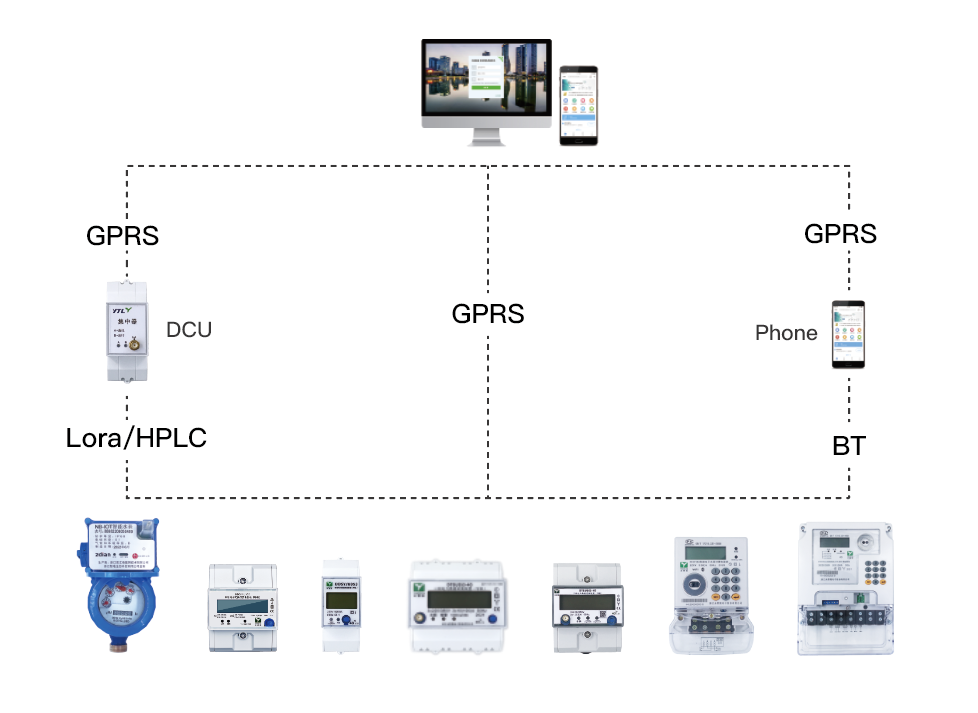

’Zhidian Micro-Grid’ intelligent meter reading system combined multiple communications and realized remote meter reading function, including GPRS equipment meter reading directly connecting with server. When LoRa devices upload to the concentrator, the concentrator reads the meter with connection between GPRS and server. When internet problems come up, the meter also supports Bluetooth communication, uploading the data with phone or meter-reader; When comes to the device with keypad, it also can realize payment by manual input the Token.

Ø Introduction of functions

‘Zhidian Micro-Grid’ realize the functions below:

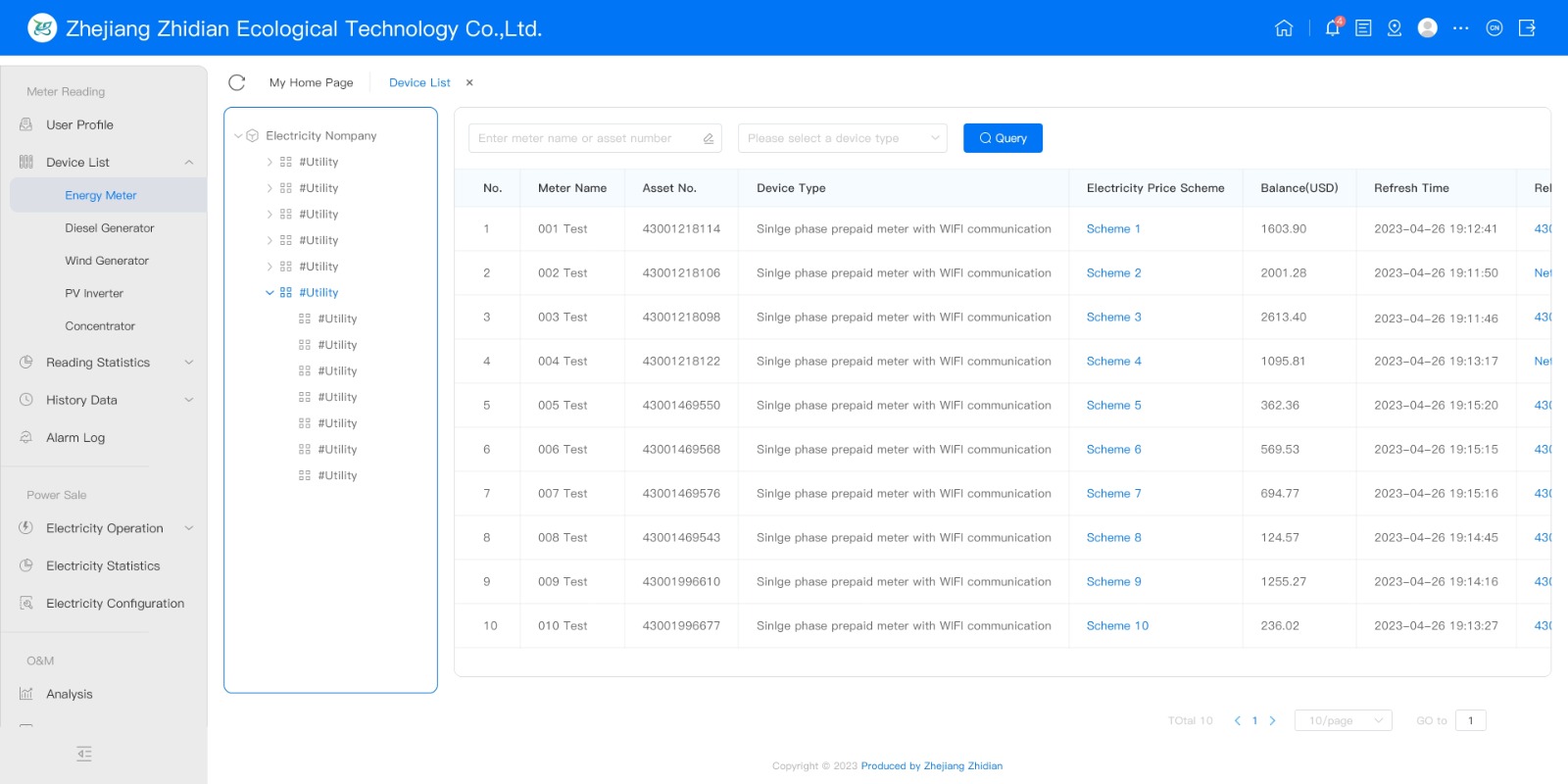

1. The management of user profile, support allows multiple users to operate online, customize operator account such as setting the management range and operation limits.

2. Daily and regularly meter reading, generate the records of water/electricity consumption, charging fees to user’s balance credit by automatically calculating each user consumption records’ data.

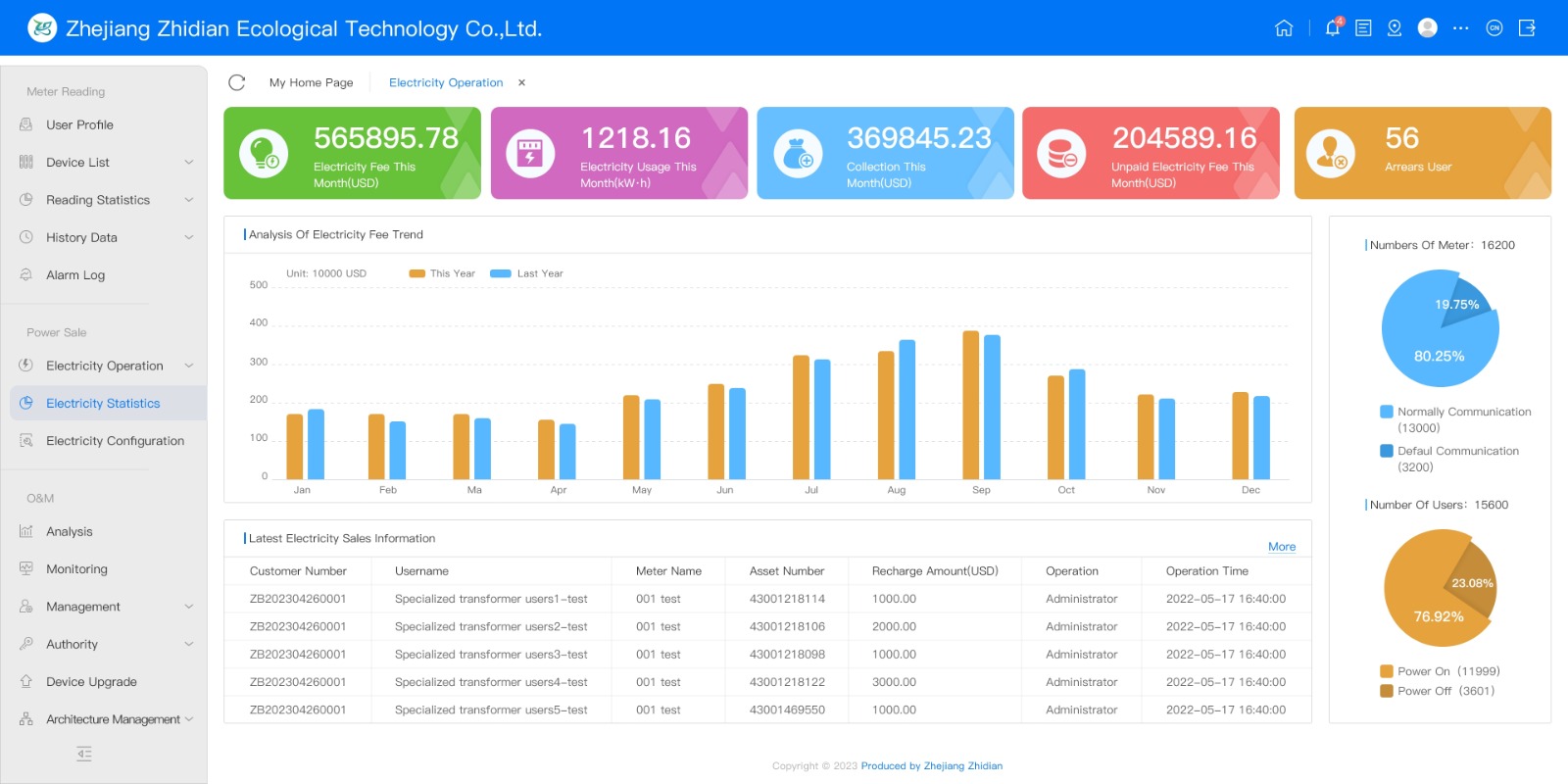

3. Check the water/electricity consumption trend chart on platform. Prediction to trend and reasonable scheduling. Also check the general statistics, such as water/electricity consumption of current month, collected receivables, unpaid bills and etc. Relatively generate a chart for convenient reconciliation.

4. Real-time supervision on device running status. When device goes offline or abnormal alarming, or user balance runs out, it will send reminder by message or App, avoiding affecting users' regular operation.

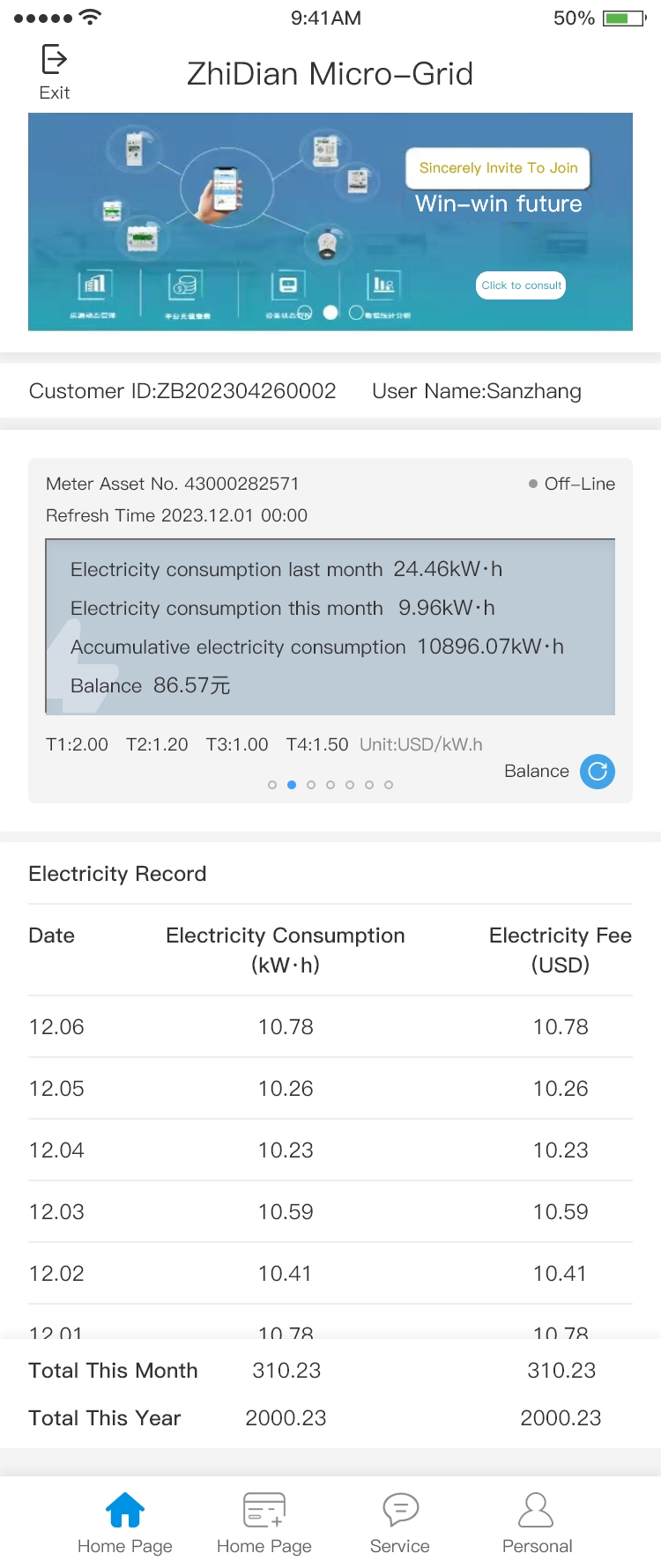

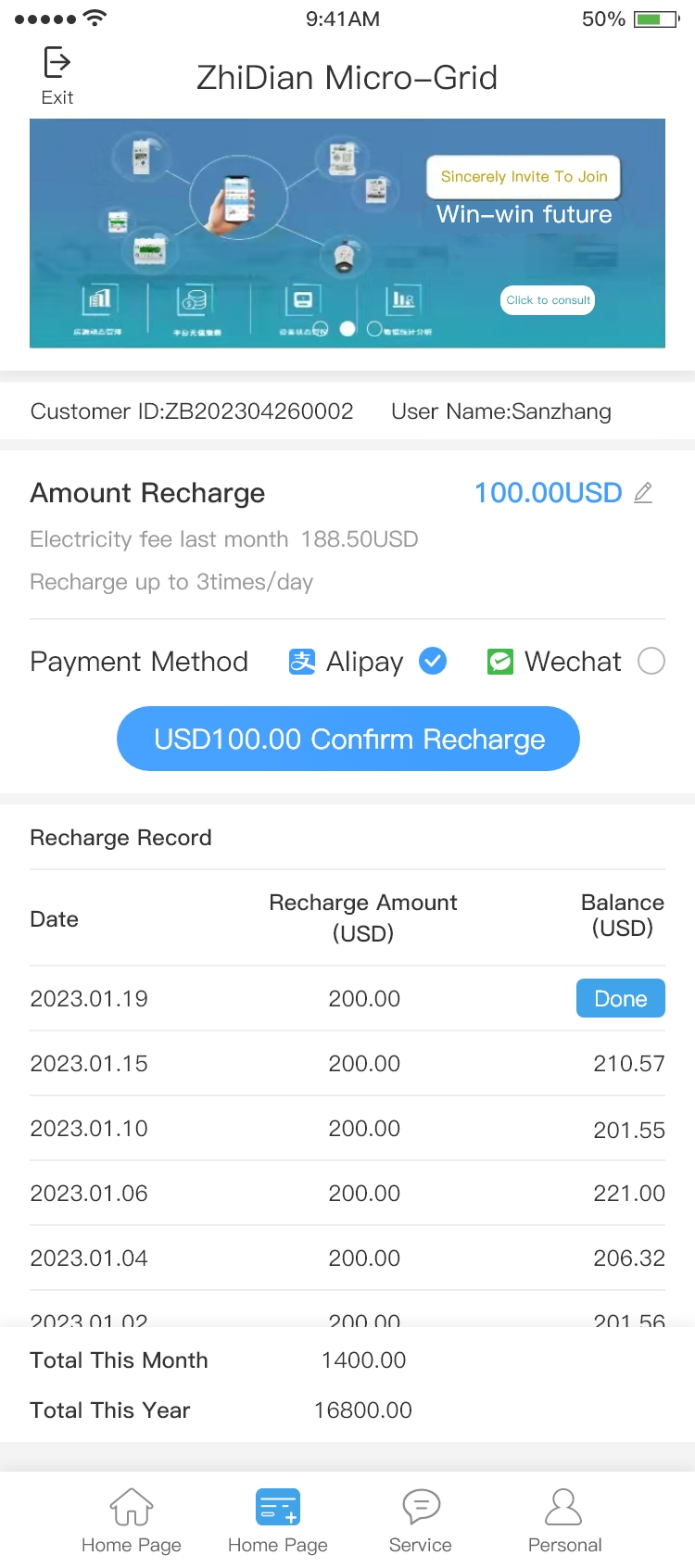

5. The historical records of water/electricity consumption can be checked by users on mobile ends. If third-party online payment is supported, users can recharge and pay online.

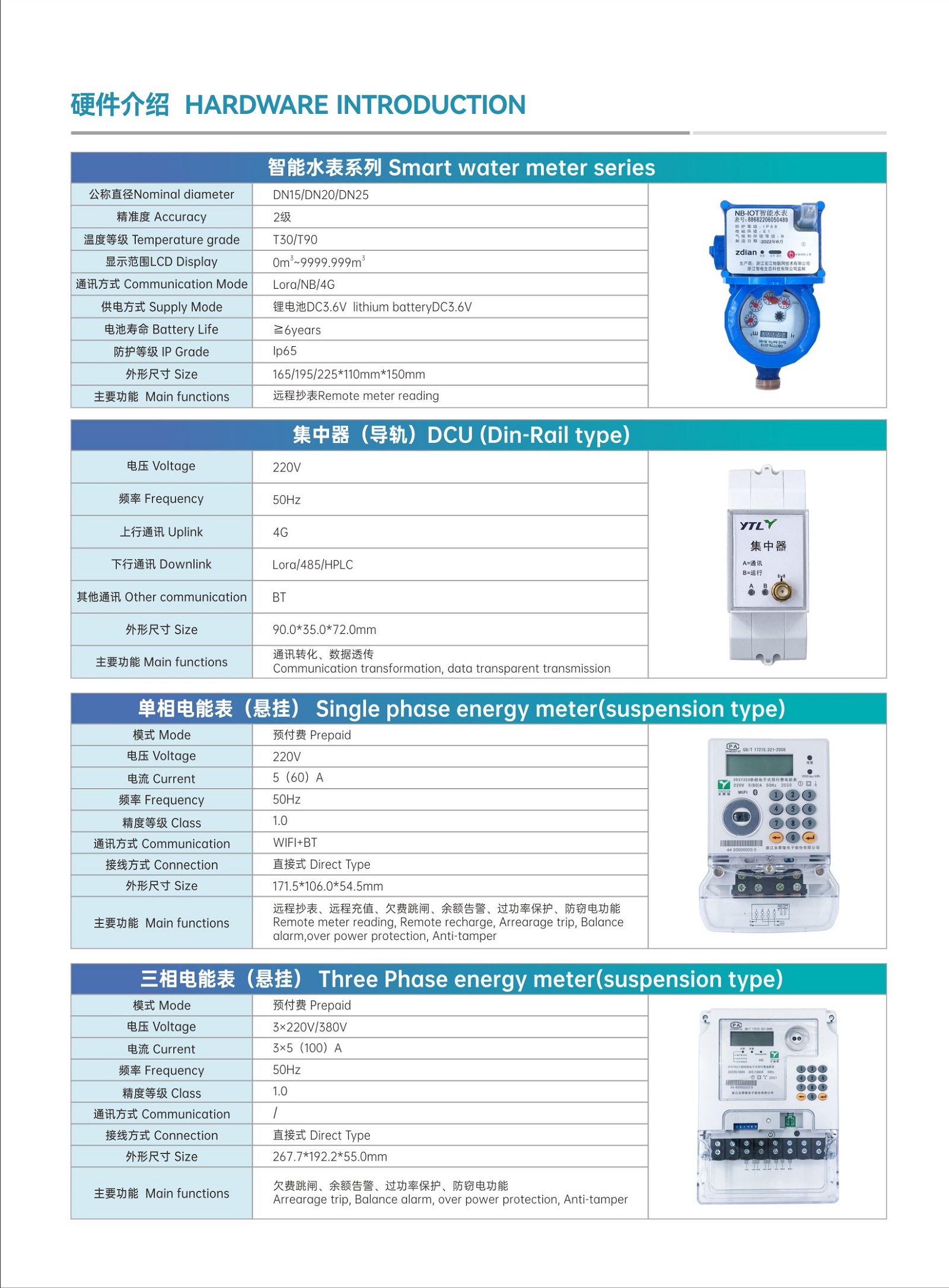

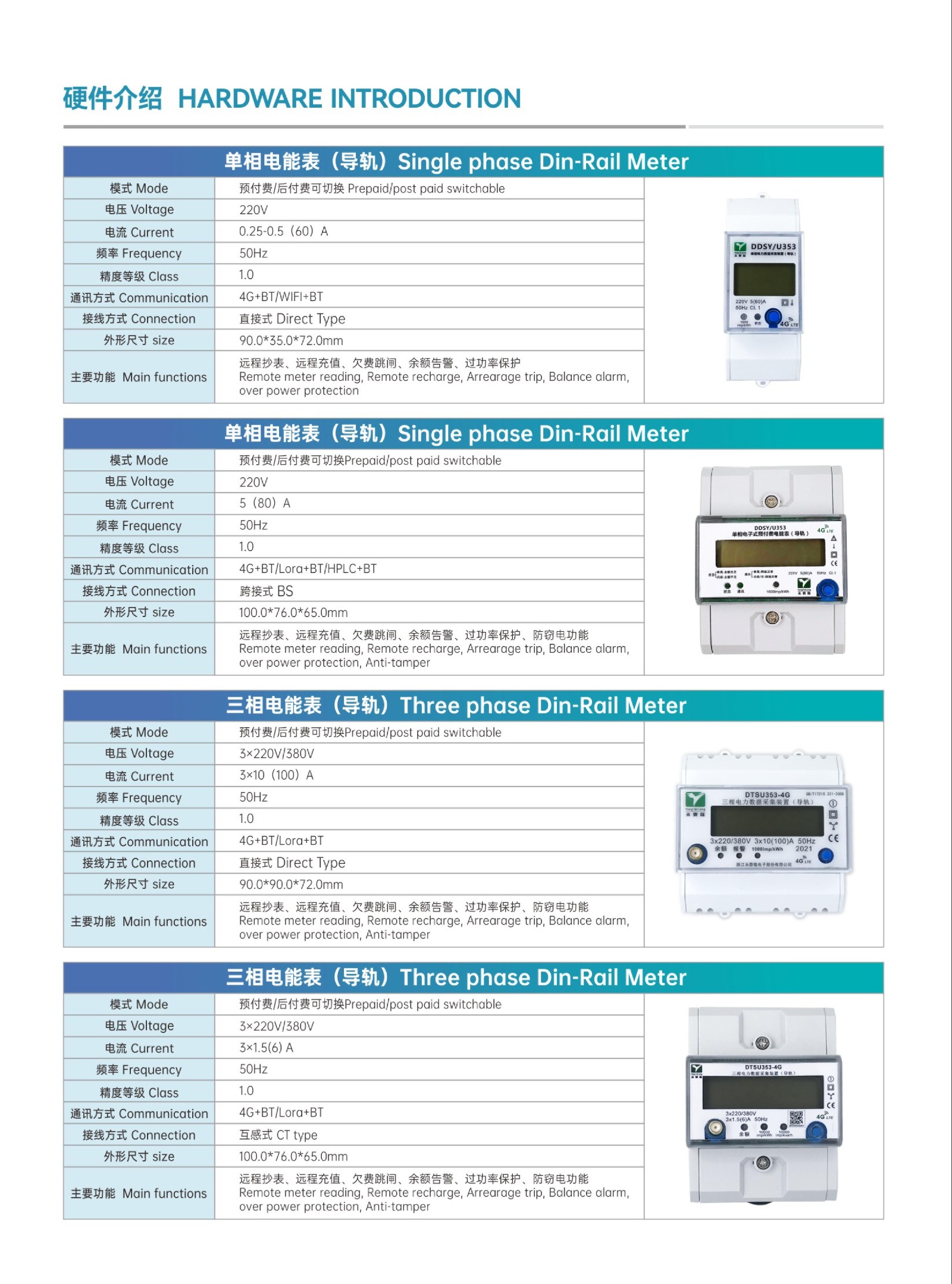

Ø Introduction of products

Ø Applied Scenario


综合商场Shopping mall	学校宿舍Dormitory

写字楼Office buildings	工业园区Industry Zone

农贸市场Agricultural markets	住宅小区Residential district
Email address : [email protected]
