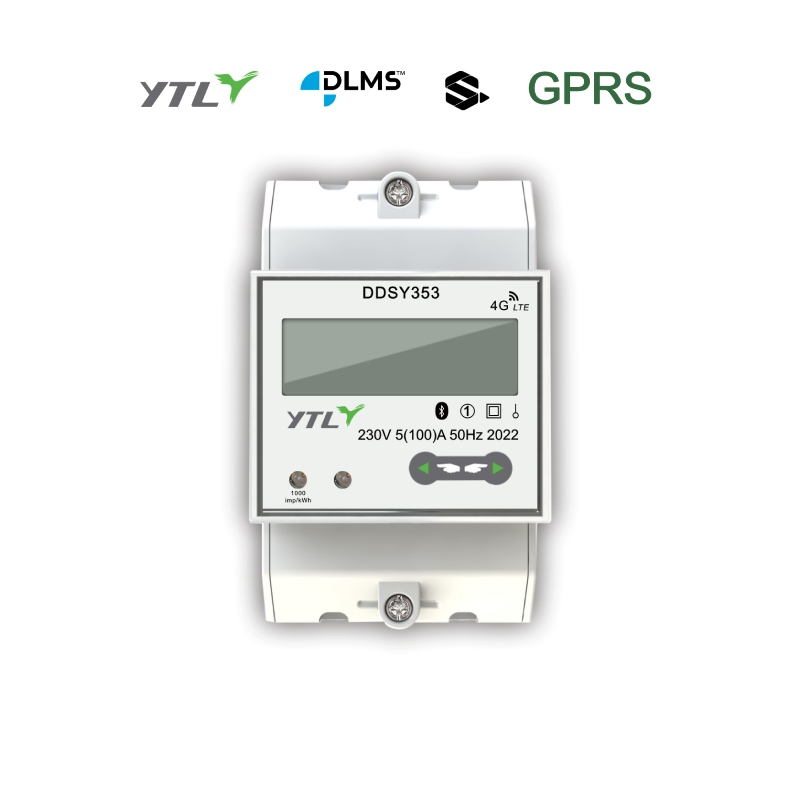

It is a single-phase two wire three modular DIN RAIL prepayment smart meter, with built-in motor relay and 4G module, automatic networking, can realize remote reading, remote recharge, remote balance clearing, when there is overload or no credit will cut off the power automatically. At the same time, it has Bluetooth communication, which can connect with in-home-display and mobile phone for data reading and setting.
Single Phase Din Rail Electric Prepayment Meter with GPRS Communication Suppliers
Home / Products / electronic energy meter / Single Phase Din Rail Electric Prepayment Meter with GPRS Communication
D114070-GPRS
Contact Us
SPEC Download
Single Phase Din Rail Electric Prepayment Meter with GPRS Communication
- TechnicalParameters
- Functions

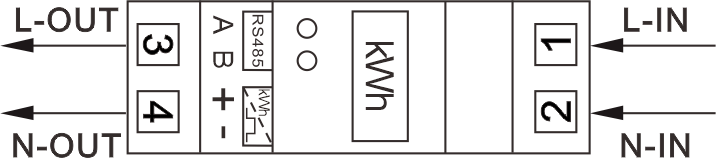

- ConnectlonDiagram
- Meter Dimensions
- det6
-
Voltage230VCurrent5(100)APulse constant:1000imp/kWhDisplay:LCD 6+2Operating temperature:-20～75℃Storage temperature:-20-80℃Relative humidity75%Reference frequency:50HzAccuracy level:1Starting current:0.4%IbPower consumption:≤10VA ≤2W
Communication mode
4G/Bluetooth/RS485（baud rate 115200）
Protocol
IDIS
-
1. Event Record
※ Recharging Token for the latest 10 times ( 20-bit code generated when recharging Token)
※ The latest 10 events of over/under voltage, low frequency, overload, temperature, low credit
2. Communication Function
※Support 4G communication, automatic networking when power on, without manual setting
3. Historical Data
※The meter can store up to 31 days of 24-hour power and monthly and annual hourly cumulative data
4. Overload Process
※When the load exceeds the set power threshold for more than 3 seconds, the relay will be disconnected, and the overload threshold can be set by software.
5. Anti-tampering Detection
※ Meter support terminal cover detection. When the terminal cover is opened, the indicator symbol of electricity tampering flashes.
※ Meter has the function of detecting the imbalance of two circuits. The indicator symbol of electricity tampering flashes when the current is unbalanced between live wire and neutral wire.
6. The Local / Remote Upgrade
※ The meter supports Bluetooth, RS485 local upgrade and 4G remote upgrade, which can update the firmware in time. -
-
Dimension 94.2*54*72mm
