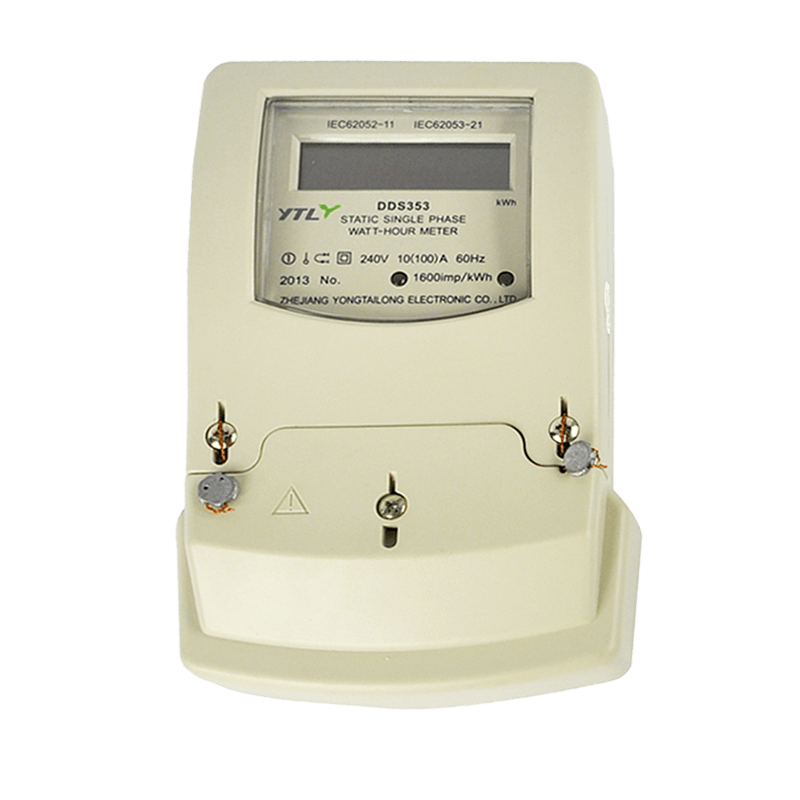

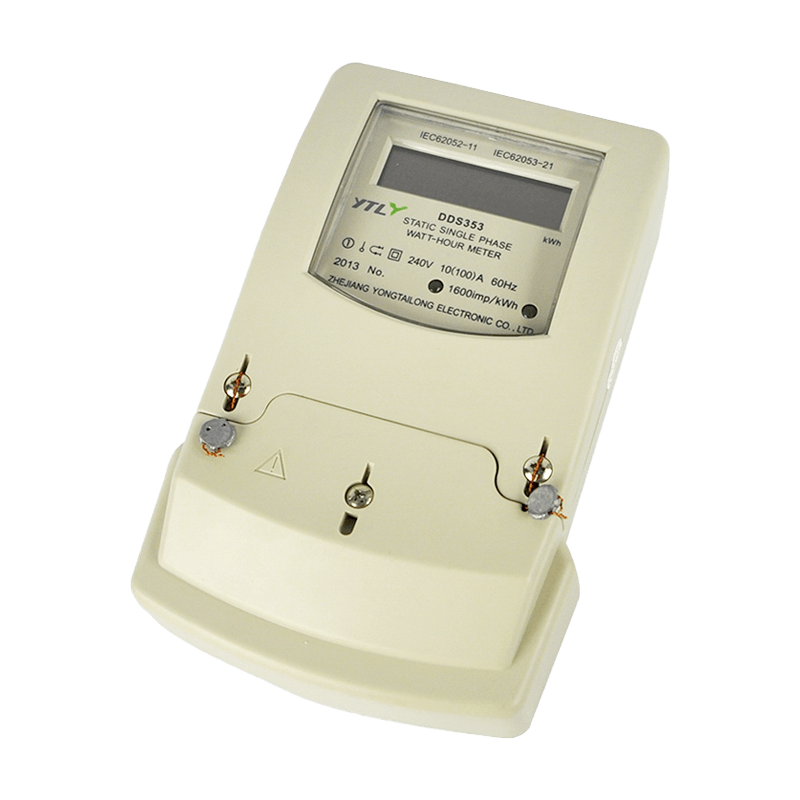

It is widely used in Sub-metering system. The Max. Current could up to 100A.
Voltage: |
240V |
Current: |
10(100)A |
Accuracy class: |
Active0.5,Reactive 1.0 |
Standard: |
IEC62052-11, IEC62053-21 |
Frequency: | 60Hz |
Impulse constant: | 1600imp/kWh |
Display: |
LCD6+1 |
Power consumption: |
≦0.3VA ≤6W |
Starting current: |
0.4%Ib |
Working Temperature | -30~70℃ |
Storage Temperature: | -40~75℃ |
Average humidity value of year: |
≦75% |

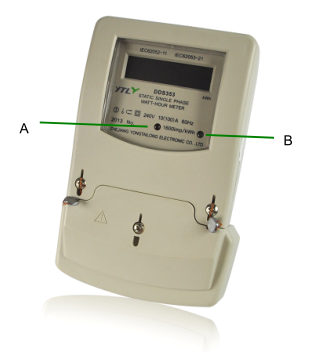

A:Reverse Indication
B:Impulse Indication
Material
Case: : Flame resistant ABS
Base Bottom: Flame resistant ABS
Terminal cover: Flame resistant ABS
Panel: Flame resistant ABS
Transparent window: PC、IR2200
