DDS353F+R+I

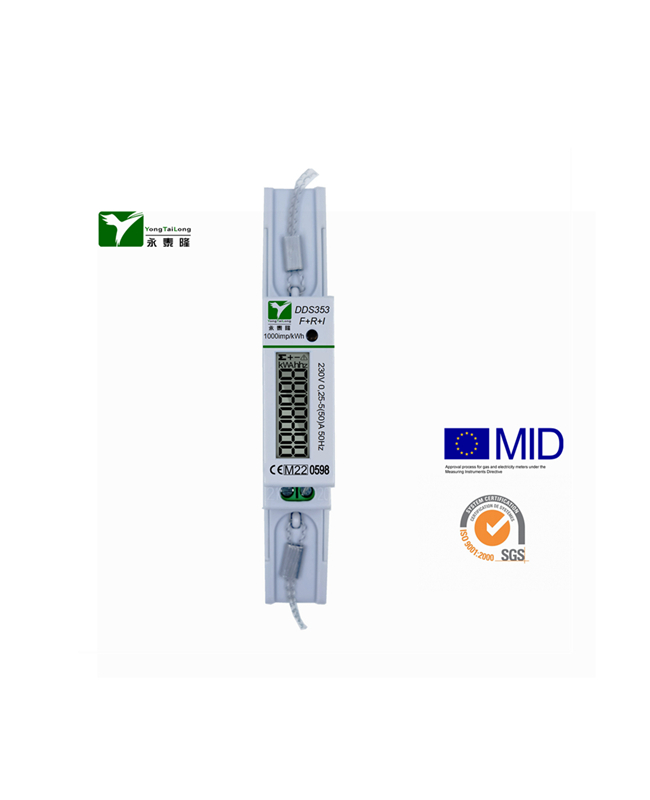

YTL DDS353 DIN rail Singlephase one wire Electric Energy Meter CE RoHS MID B+D Certified

Single phase energy meter, pass MID certified, meet the EU market demands. The meter is designed with a pulse indicator on the panel. Impulse Constant is 1000imp/kWh, which means 1000 pluses is 1kWh.

Technical Parameters
Measurements
Meter Dimensions
Diagram for installation
det6

https://hqcdn.hqsmartcloud.com/ytl-e/2022/07/06/dds353.pdf

Applications

View all applications

View all products

D118025-01

YTL Factory Smart Home Common Two Wire electricity meter
D119014

RS485 Modbus Protocl Active Single Phase AC Grid electricity meter
DTS353F

Micro Grid Good Reliability Three Phase Power Meter
D124001-08

Scattered Residents Easy To Manage 1p prepaid meter electricity meter
D149001

panel energy meter Electronic Device Monitor Consumed Kwh
D512026-01

Lcd Backlight Mutual Inductance Three-Phase Four-Section Electronic Electronic electricity meter
DEM2D

YTL DC meter DEM2D series 75mV Din-Rail 1 Phase 2 Wire CE RoHS Energy Meter
D519041

YTL company Solution For Residential Three Phase CT Power meter Seven Wires electricity Meter
APS System Used For Africa Three Phase Prepaid Meter
Digital Device Measure Electronic panel electricity meter
J119008

Control Intelligent Street Light Real Time Concentrator With RS485 Communication
J119007

real-time tasks 220V,50-60HZ concentrator with GPRS communication

Welcome To A National High-tech Enterprise

Established in 2000, Zhejiang Yongtailong Electronic Co., Ltd. is located in the center of Shanghai, Hangzhou and Suzhou cities. YTL is a professional China YTL DDS353 DIN rail Singlephase one wire Electric Energy Meter CE RoHS MID B+D Certified Suppliers and YTL DDS353 DIN rail Singlephase one wire Electric Energy Meter CE RoHS MID B+D Certified Company. With more than 20 years of energy metering experience, we devote ourselves to providing competitive projects and creating value for customers. YTL was one of the first companies in the domestic market with which had an internal R&D department as well as international sales business. Since our foundation in 2000 we have grown to a manufacturer which complies and meet to many specifications from our national and international partners. At present our export volume makes us a leading company for technology and product export to more than 50 countries throughout the world. With provincial high-tech enterprise R&D center, YTL is the Top 100-enterprise with most investment value in Zhejiang. And“Yongtailong”is the famous brand of Zhejiang. For any new products of customers, we will communicate with customers very professionally, listen to their opinions and give useful suggestions to ensure that excellent quality products are made.

2000

Established In
500+

Employees
60+

Export Country
500+

Design Right Patent

YTL Honor

DLMS
IEC
KEMA
KEMA
MID
SGS

YTL News

View All News

Do you know CT Power meter?

2023-06-01

With the development of society and the increase of electricity demand, metering and billing technology is also constantly developing and innovating. CT Power...
Abroad Market-Kenya exhibition

2023-05-30

YTL, as an company of electricity meter, this Kenya exhibition brought us some Sentiment.The three years of COVID-19 have had a significant impact on the econom...
The Role of Electric Energy Meters in Promoting Sustainable Energy Practices

2023-05-26

In today's world, where the demand for energy is continually rising, it is essential to prioritize sustainable energy practices. As the global population grows,...
Change! IoT energy meter change people's lives

2023-05-25

IoT energy meter, with the rapid development of IoT has been fully used, and has become an important part of the smart home, quickly attracted people's attent...
Design and construction of smart meters

2023-05-23

Smart power meter will become the most important equipment in the field of smart home, while realizing energy measurement, through automation technology and re...
What Factors Should You Consider When Choosing a Three-Phase Smart Meter?

2023-05-19

As the world transitions towards a more sustainable and energy-efficient future, so full-smart meters has become increasingly prevalent.In particular, three-pha...

Content	Parameters
Standard:	EN50470-1/3
Rated Voltage:	230V
Rated Current:	0,25-5(30)A,0,25-5(32)A,0,25-5(40)A, 0,25-5(45)A,0,25-5(50)A
Impulse Constant:	1000 imp/kWh
Frequency:	50Hz/60Hz
Accuracy Class:	B
LCD Display:	LCD 5+2 = 99999.99kWh
Working Temperature:	-25～55℃
Storage Temperature:	-30~70℃
Power Consumption:	<10VA <1W
Average Humidity:	≤75% (Non Condensing)
Maximum Humidity:	≤95%
Start Current:	0.004Ib
LED flash:	Impulse indication, pulse width = 80 ms

Meter Type	Measurement
DDS353	kWh Total =Forward energy+Reverse energy
DDS353AF	KWh Total=Forward energy only
DDS353F+R	1 = kWh total ( forward + reverse) 2 = kWh (forward energy [import]) 3 = kWh (reverse energy [export])
DDS353F-R	1 = kWh total (calculated by forward - reverse) 2 = V (Voltage) 3 = A (Ampere - current load) 4 = W (Watt - current active power) 5 = Hz (Frequency) 6 = PF (power factor)
DDS353AI	1 = kWh total ( forward + reverse) 2 = V (Voltage) 3 = A (Ampere - current load) 4 = W (Watt - current active power) 5 = Hz (Frequency) 6 = PF (power factor)
DDS353FI	1=Forward energy only 2= V (Voltage) 3= A (Ampere - current load) 4= W (Watt - current active power) 5= Hz (Frequency) 6 = PF (power factor)
DDS353F+R+I	1 = kWh total ( forward +reverse) 2 = kWh (forward energy [import]) 3 = kWh (reverse energy [export]) 4 = V (Voltage) 5 = A (Ampere - current load) 6 = W (Watt - current active power) 7 = Hz (Frequency) 8 = PF (power factor)
DDS353F-R-I	1 = Total Kwh（Forward - Reverse) 2 = Forwarder energy display 3 = reverse energy display 4 = V (Voltage) 5 = A (Ampere - current load) 6 = W (Watt - current active power) 7 = Hz (Frequency) 8 = PF (power factor)
