Three-Phase Four-Wire Energy Meter User Manual For D52A096 Suppliers
Three-Phase Four-Wire Energy Meter User Manual For D52A096

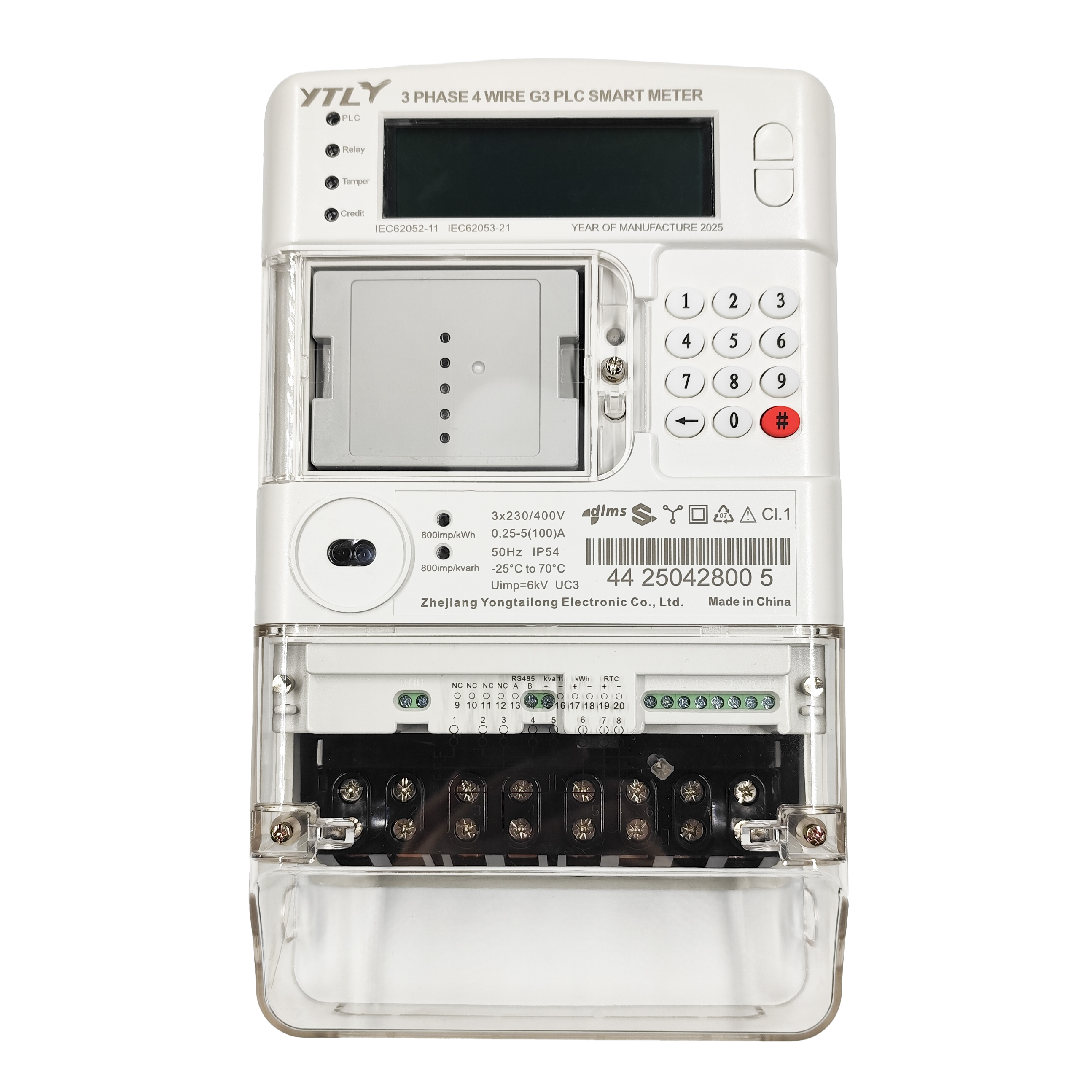

It is a Smart STS Three-phase direct connection meter (Symmetrical) , G3-PLC communication.
Be able to measure in STS mode, currency mode, and post-paid (traditional) mode. Data will be
sent to master station for management. The design follow the standard IEC 62052-11:2020 &
62053-21:2020
- Features
- Technical Parameters
- Meter

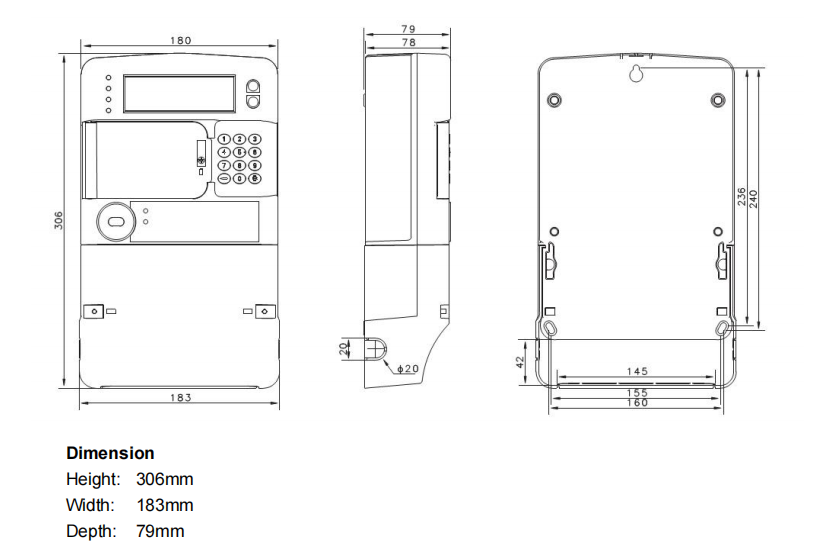

- eter Dimension
-
Anti-tampering
When credit balance in meter reached Zero;
When tamper condition is detected;
When set power limit is exceeded;
When programmed current overload limit is exceeded;
When under-voltage limit is exceeded;
When over voltage limit is exceeded;
Due to abnormal terminal temperature;
During reverse power flow mode
Tariff
Divide into weekday timetable and weekend timetable, with 10 time period and 10 tariffs. Every
timetable has a backup table for remote updating of backup timetable and configure the switching
time. Meter will automatically switch the tariff table at the switching time.
TOD billing and update to tariffs can be possible to configure in the meters.
Communication
Meter support G3-PLC communication.
IR as per IEC62056-21 and DLMS communication
Firmware upgrade over the communication link using DLMS image transfer
Remote configuration of mete
-
Voltage:
230/400V
Current:
3*10(100) A
Accuracy class:
1.0 for active energy, 2.0 for reactive energy
Standard:
IEC62052-11:2020, IEC62053-21:200320, IEC 62056-21,
IEC62055-41:2018
Communication protocol:
DLMS/COSEM(IEC62056)
Frequency:
50±2%Hz
Impulse constant:
1000imp/kWh
Display:
LCD 6+2 = 999999.99kW,
Display when no power (press the button)
Power consumption:
<10VA/2W
Starting current:
40mA
Limit working temperature:
-25℃~70℃
Working humidity:
<95%
-

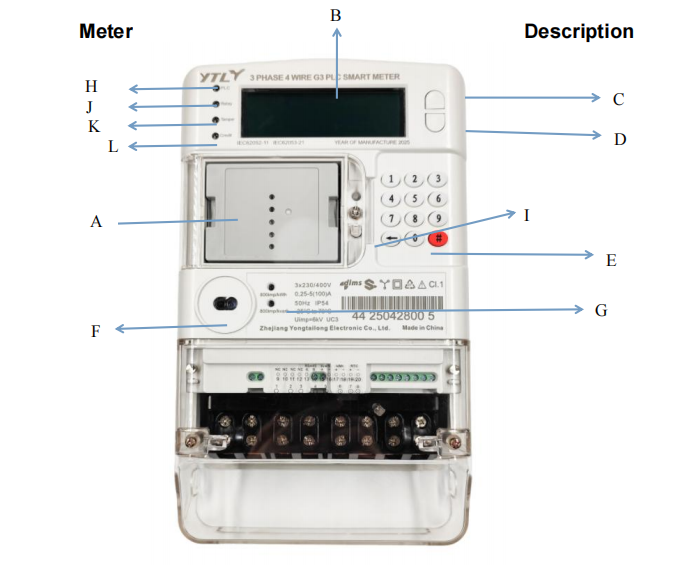

A Communication plug&play Modem
B LCD
C Scroll up Turn Page
D Scroll down Turn Page
E Keypad
F IR
G Impulse constant
H GPRS working status ( flash during operation, if don’t work, no flash)
I MD button
J Relay status indicator ( when relay is open, it flash )
K Tamper indicator ( if any tamper detected, it flash )
L Credit indicator (Credit more than 15GhȻ , shows green. lower than 15GhȻ , show red)
-
