Three-phase electronic digital display Panel meter YTL72 Series Suppliers
Three-phase electronic digital display Panel meter YTL72 Series
The three-phase electronic multifunction digital display meter (also known as a panel meter or embedded electricity meter) is designed in accordance with the GBT\IEC standards. It features various functions such as measurement of electrical parameters, energy statistics, power quality analysis, event alarms, event recording, and network communication.
- Technical Parameters
- Product Selection
- Description

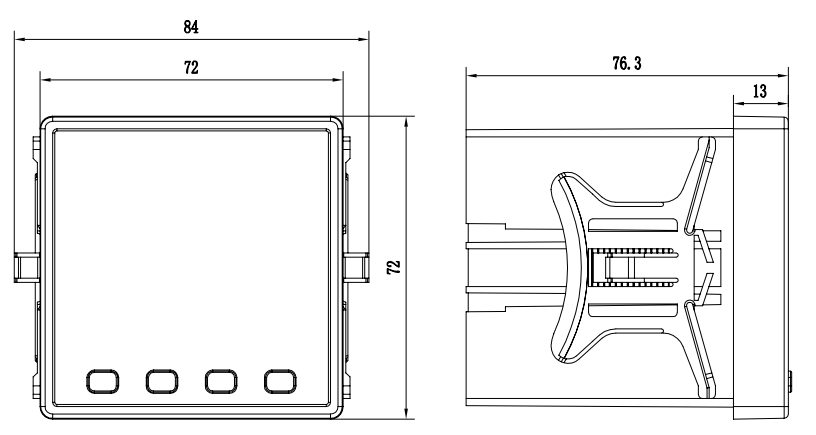

- Dimensions Diagram
-
Operating Voltage: 48~276V AC/DC
Sampling Voltage: 57.7-288V AC (L-N), 100-500V AC (L-L), compatible with three-phase three-wire and three-phase four-wire systems
Sampling Current: 1.5(6)A (allows 1.2 times overload)
Accuracy Class: Active 0.5S, Reactive 2.0
Standards: IEC 62052-11 2020, IEC 62053-22 2020, IEC 61557-12 2021, GB/T 17215.211—2021, GB/T 17215.321—2021
Frequency: 50/60Hz
Protection Class: Class Ⅱ
Temperature Range: -40 to 70°C
Humidity Range: ≤95%
Altitude: ≤2000 meters -

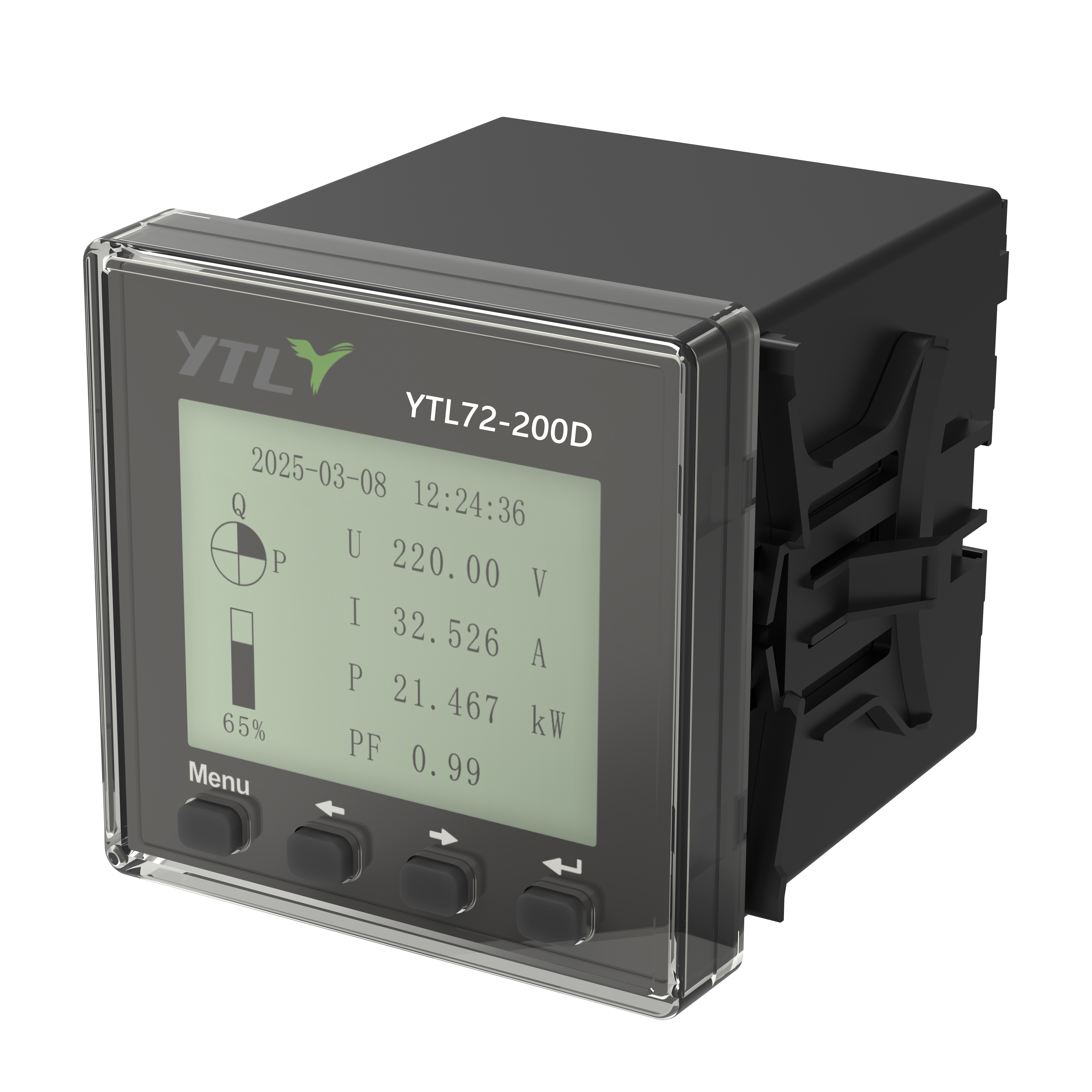

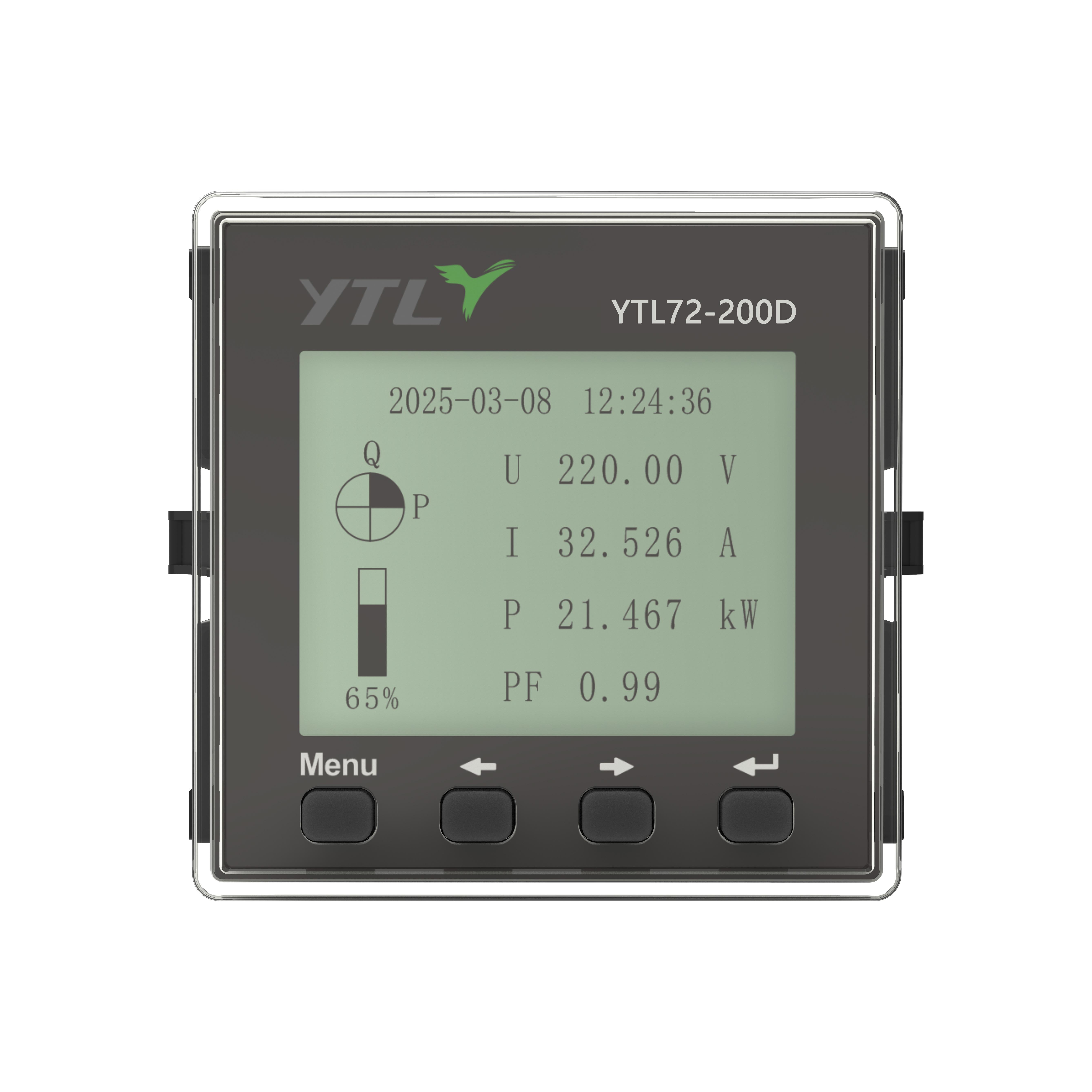

YTL72-200
YTL72-220

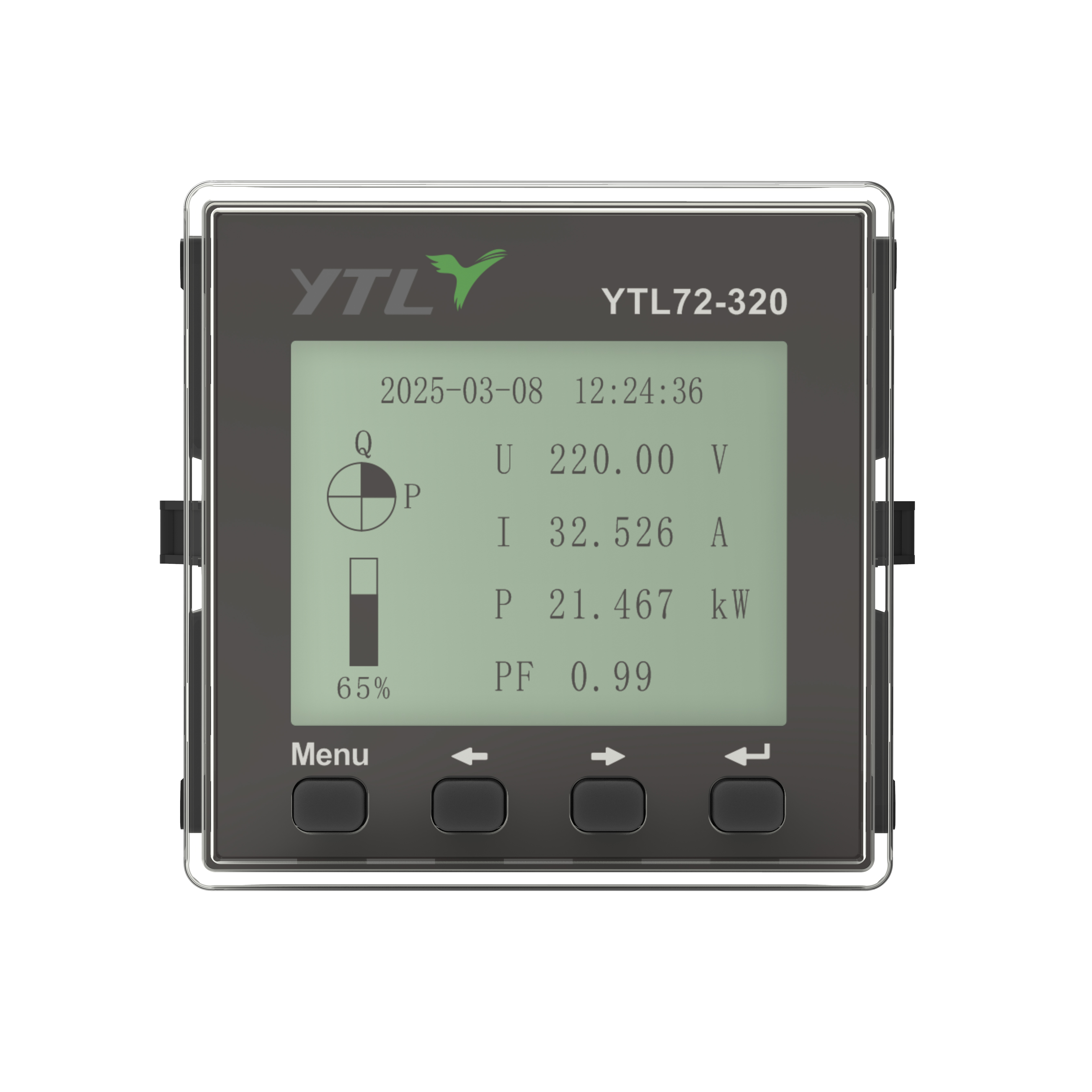

YTL72-320
RS485 Communication
●
●
●
Y-Bus Communication
/
/
●
DI Input
/
●
●
DO Output
/
●
●
Event Alarm
●
●
●
Event Recording
●
●
●
SOE Event
/
●
●
Various Electrical Measurements
●
●
●
-
1、Menu Button
2、Left Scroll Button
3、Right Scroll Button
4、Confirm Button
Materials
Base: PC+ABS Alloy
Cover: PC+ABS AlloyRetention Clip: ABS
-
