YTL 1 Wire active measurment MID Certified pulse Energy Meter Suppliers
YTL 1 Wire active measurment MID Certified pulse Energy Meter

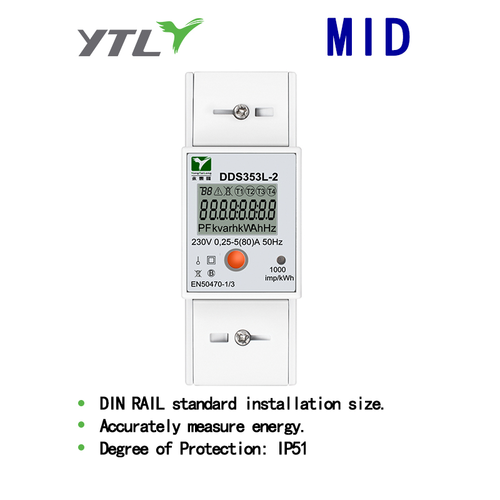

This is a single-phase two-wire din rail mounted multi-function meter, which with small size and multiple functions, suitable for the narrow installation environment in the car charging station, and equipped with a special function for docking the application of the car charging station
- Description
- TechnicalParameters
- ConnectlonDiagram
- MeterDimensions
- ImpulseConnection
- det6
-
Type DEM1A001 DEM1A002 DEM1A102 DEM1A140 Software Version V101 V101 V101 V101 CRC 5A8E B6C9 6B8D 6B8D Impulse Constant 1000imp/kWh 1000imp/kWh 1000imp/kWh 1000imp/kWh Communication N/A RS485 Modbus/DLT645 RS485 Modbus/DLT645 Bluetooth Baud rate N/A 9600\19200\38400\115200 9600\19200\38400\115200 / SO output SO1 is SO output for kWh(default) or Active/reactive forward kWh optional with variable constant 100-2500imp/kWh N/A N/A N/A Divisible by 10000 SO2 is SO output for kvarh (default) or Active/reactive reverse kWh optional with variable constant 100-2500imp/kvarh Divisible by 10000 Pulse width SO:100-1000:100ms N/A N/A N/A SO:1250-2500:30ms Backlight Blue Blue Blue Blue Li-Battery N/A N/A YES YES Multi-tariff N/A N/A YES YES Measurement Mode 1-total =forward 1-total =forward 1-total =forward 1-total =forward 2-Total=reverse 2-Total=reverse 2-Total=reverse 2-Total=reverse 3-Total =forward +reverse (default) 3-Total =forward +reverse (default) 3-Total =forward +reverse (default) 3-Total =forward +reverse (default) 4-Total=Forward-Reverse 4-Total=Forward-Reverse 4-Total=Forward-Reverse 4-Total=Forward-Reverse Button Touch button Touch button Touch button Touch button Button function Page turning, setting, information display Page turning, setting, information display Page turning, setting, information display Page turning, setting, information display Default setting 1000imp/kWh,100ms 9600/NONE /8/1 9600/NONE /8/1 / 1000imp/kvarh,100ms Measurement Mode setting Button RS485 or Button RS485 or Button Bluetooth -
Voltage: 230V Current: 0,25-5(100)A
Accuracy Class:
B Standard: EN50470-1/3
Frequency: 50/60Hz Impulse constant: 1000imp/kWh Display: LCD5+2
Power consumption: <12VA <1W
Starting current: 0.004Ib
Working Temperature:
-25～70℃
Case Protection
IP51 indoor
Average humidity value of year: 75% Maximal humidity value: 95% -
DEM1A001
Note: 23:SO1 is SO output for kWh or Active/reactive forward kWh optional
24:SO2 is SO output for kvarh or Active/reactive reverse kWh optional
25:G is for GND
For Neutral wire, you can connect one N port and connect both.
DEM1A002/102
Note: 23.24.25 is for A+, G, B-.If the RS485 communication converter doesn’t have G port, no need to connect.
For Neutral wire, you can connect one N port and connect both.
-
Height 90mm
Width 18mm
Depth 72mm
-
It requires an experienced electrician or professional to install energy meter, and the user guide shall be completely read;
During the installation process, if the meter case has obvious damage marks caused by a violent impact or fall, please do not install, or power up, and please promptly contact with us;
The energy meter is inspected before leaving the factory and can be installed and used directly; The meter should be installed in an indoor or outdoor meter box.The mounting base shall be fixed on a sturdy and refractory wall without corrosive gas in the air;
The mounting base shall be fixed on a sturdy and refractory wall with no corrosive gas in the air; The meter shall be wired according to the wiring diagram on terminal case, preferably by copper wire or copper wiring head.
-
