YTL DEM1A 230V Din-Rail 1P 1 module Dual Tariff MID B+D Certificate Electric Vehicle Charging

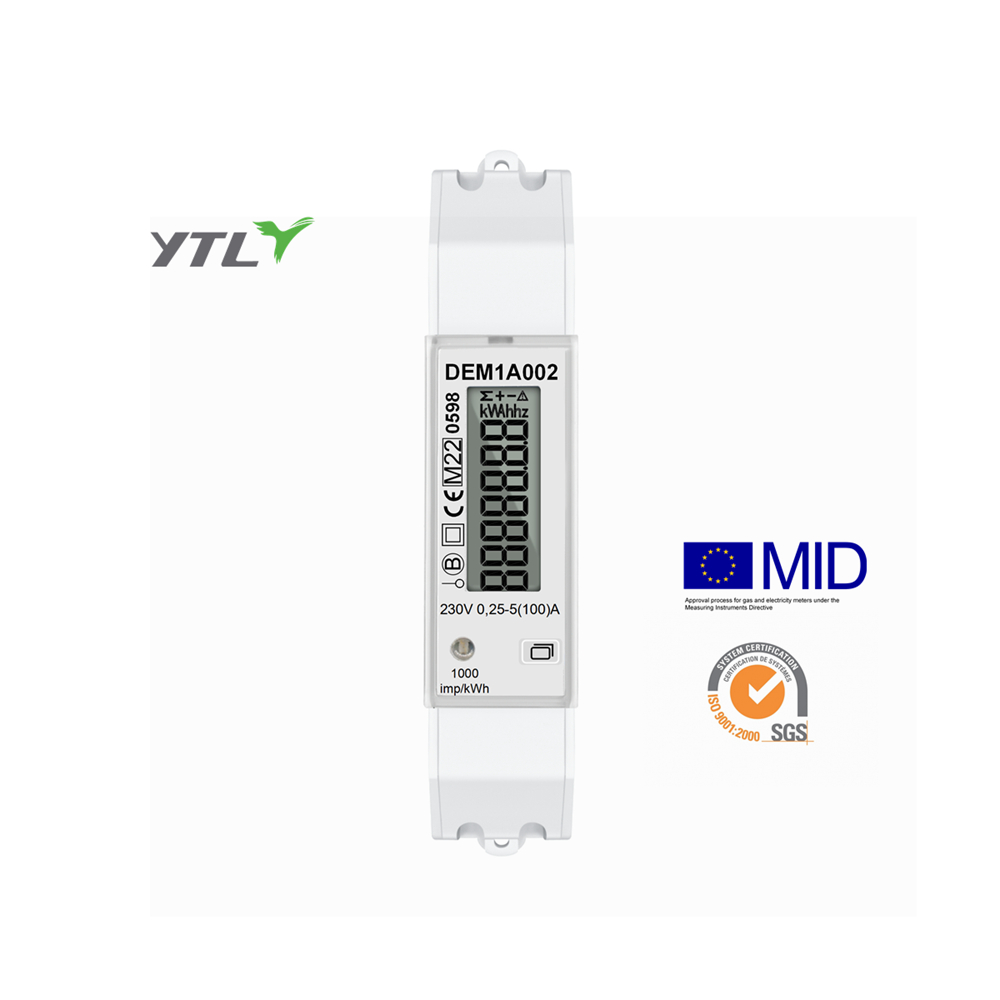

DEM1A001: Basic Type，no communication ，SO output (variable constant),with different measurements way

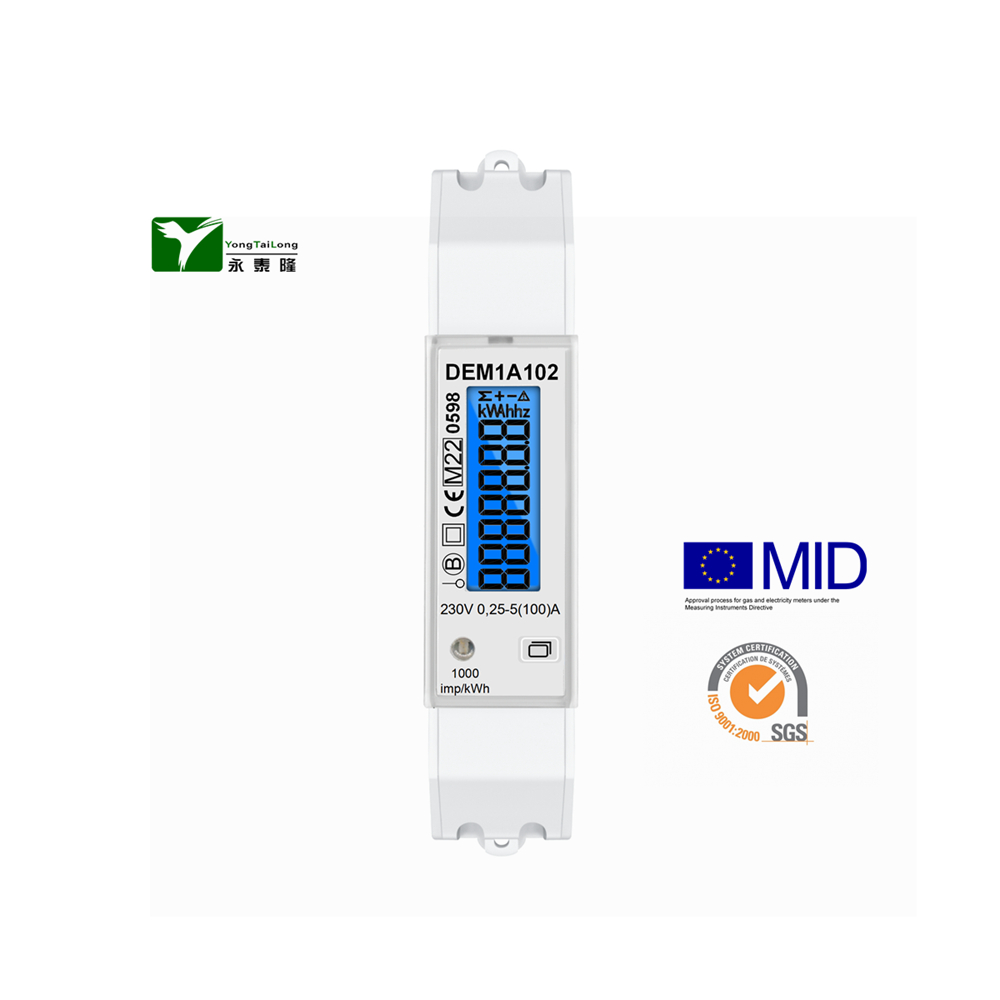

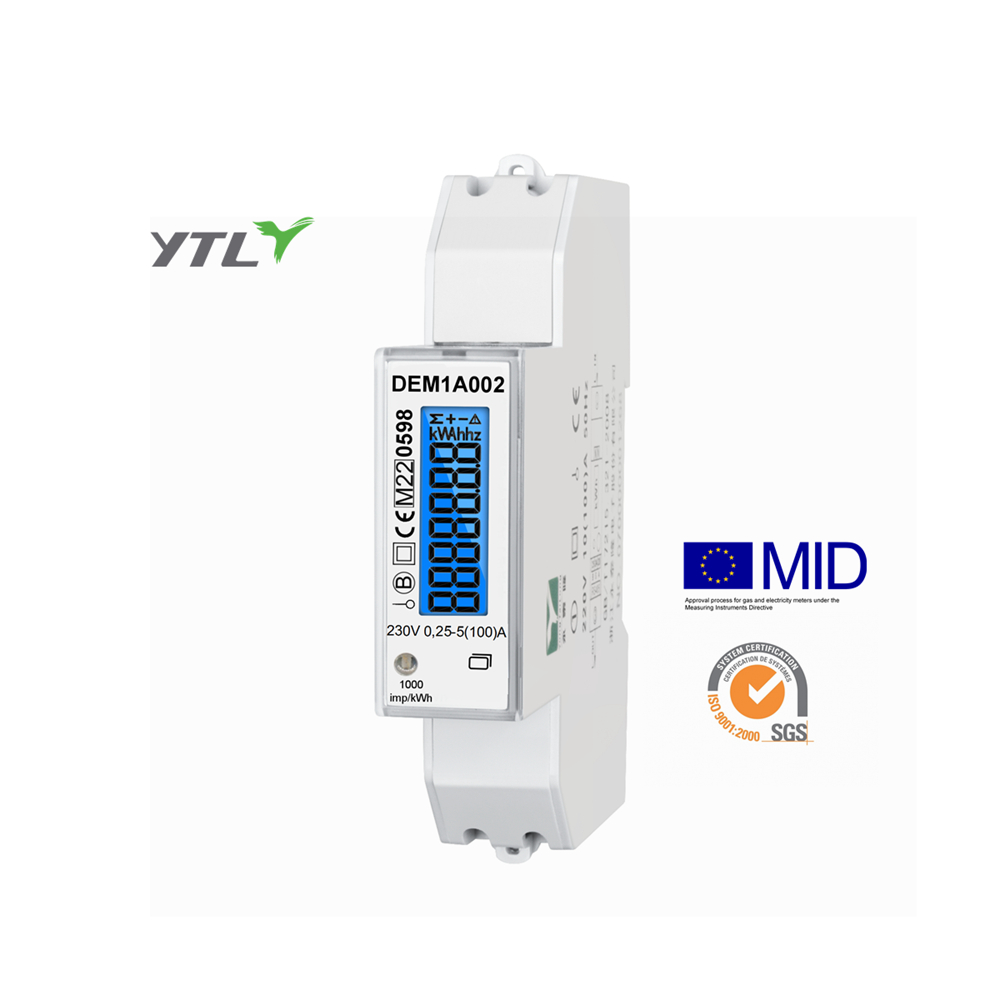

DEM1A002: RS485 MODBUS/DLT645 dual protocol with different measurements way

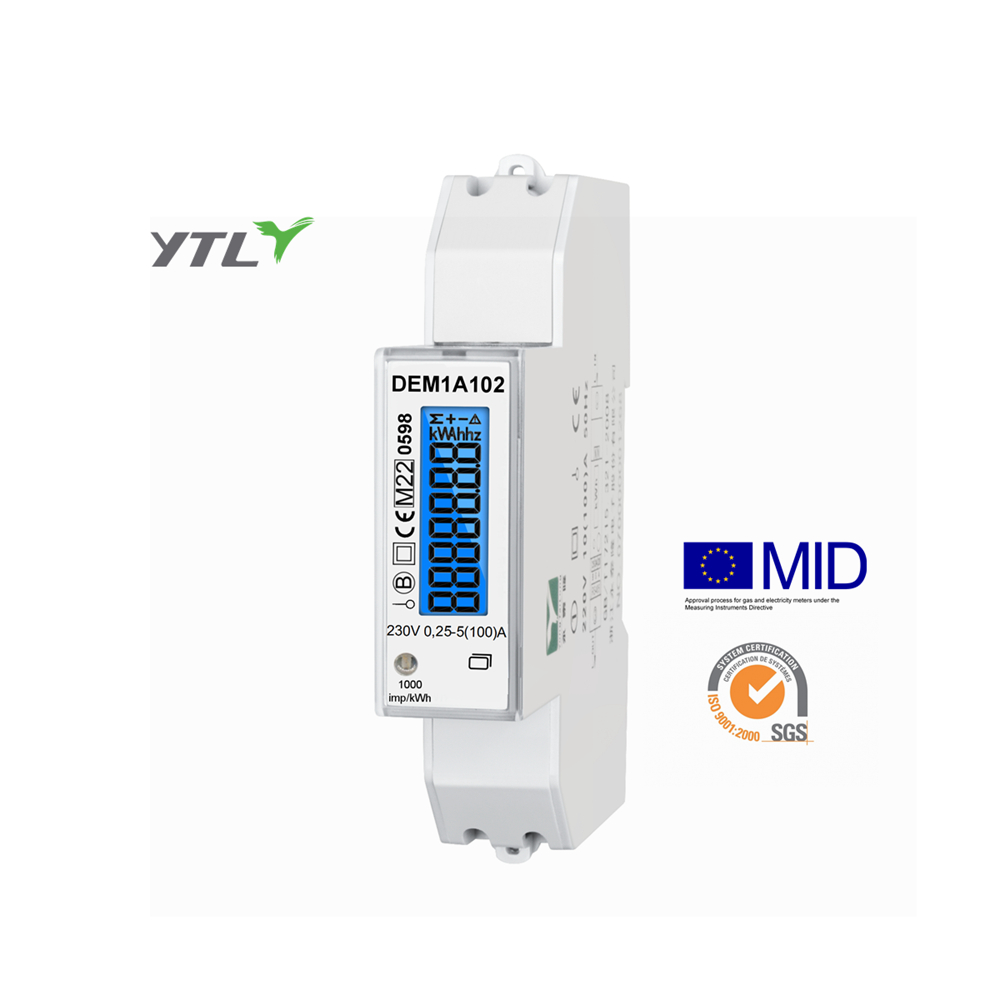

DEM1A102: RS485 MODBUS/DLT645 dual protocol, Multi-tariff function,with different measurements way
More options to meet different requirements from market !
|
Content |
Parameters |
|
Standard: |
EN50470-1/3 |
|
Rated Voltage: |
230V |
|
Rated Current: |
0,25-5(30)A,0,25-5(32)A,0,25-5(40)A,0,25-5(45)A, 0,25-5(50)A,0,25-5(60)A, 0,25-5(80)A,0,25-5(100)A |
|
Impulse Constant: |
1000 imp/kWh |
|
Frequency: |
50Hz/60Hz |
|
Accuracy Class: |
Class B / Active 1.0 |
|
LCD Display: |
LCD 5+2 = 99999.99kWh |
|
Working Temperature: |
-25～70℃ |
|
Storage Temperature: |
-30~70℃ |
|
Power Consumption: |
<12VA <1W |
|
Average Humidity: |
≤75% (Non Condensing) |
|
Maximum Humidity: |
≤95% |
|
Start Current: |
0.004Ib |
|
Case Protection |
IP51 indoor |
|
Type |
DEM1A001 |
DEM1A002 |
DEM1A102 |
|
Software Version |
V101 |
V101 |
V101 |
|
CRC |
5A8E |
B6C9 |
6B8D |
|
Impulse Constant |
1000imp/kWh |
1000imp/kWh |
1000imp/kWh |
|
Communication |
N/A |
RS485 Modbus/DLT645 |
RS485 Modbus/DLT645 |
|
Baud rate |
N/A |
9600\19200\38400\115200 |
9600\19200\38400\115200 |
|
SO output |
SO1 is SO output for kWh(default) or Active/reactive forward kWh optional with variable constant 100-2500imp/kWh Divisible by 10000 |
N/A |
N/A |
|
SO2 is SO output for kvarh (default) or Active/reactive reverse kWh optional with variable constant 100-2500imp/kvarh Divisible by 10000 |
|||
|
Pulse width |
SO:100-1000:100ms SO:1250-2500:30ms |
N/A |
N/A |
|
Backlight |
Blue |
Blue |
Blue |
|
Li-Battery |
N/A |
N/A |
YES |
|
Multi-tariff |
N/A |
N/A |
YES |
|
Measurement Mode |
1-total =forward 2-Total=reverse 3-Total =forward +reverse (default) 4-Total=Forward-Reverse |
1-total =forward 2-Total=reverse 3-Total =forward +reverse (default) 4-Total=Forward-Reverse |
1-total =forward 2-Total=reverse 3-Total =forward +reverse (default) 4-Total=Forward-Reverse |
|
Button |
Touch button |
Touch button |
Touch button |
|
Button function |
Page turning, setting, information display |
Page turning, setting, information display |
Page turning, setting, information display |
|
Default setting |
1000imp/kWh,100ms 1000imp/kvarh,100ms |
9600/NONE /8/1 |
9600/NONE /8/1 |
|
Measurement Mode setting |
Button |
RS485 or Button |
RS485 or Button |
DEM1A001
Note: 23:SO1 is SO output for kWh or Active/reactive forward kWh optional
24:SO2 is SO output for kvarh or Active/reactive reverse kWh optional
25:G is for GND
For Neutral wire, you can connect one N port and connect both.
DEM1A002/102
Note: 23.24.25 is for A+, G, B-.
If the RS485 communication converter doesn’t have G port, no need to connect.
For Neutral wire, you can connect one N port and connect both.
Height 90mm
Width 18mm
Depth 72mm
It requires an experienced electrician or professional to install energy meter, and the user guide shall be completely read;
During the installation process, if the meter case has obvious damage marks caused by a violent impact or fall, please do not install, or power up, and please promptly contact with us;
The energy meter is inspected before leaving the factory and can be installed and used directly; The meter should be installed in an indoor or outdoor meter box.The mounting base shall be fixed on a sturdy and refractory wall without corrosive gas in the air;
The mounting base shall be fixed on a sturdy and refractory wall with no corrosive gas in the air; The meter shall be wired according to the wiring diagram on terminal case, preferably by copper wire or copper wiring head.
