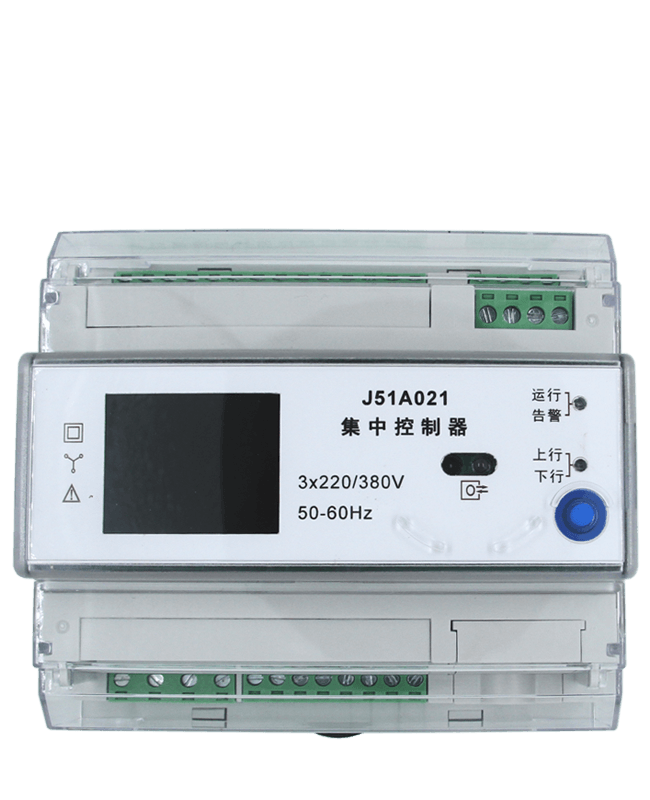

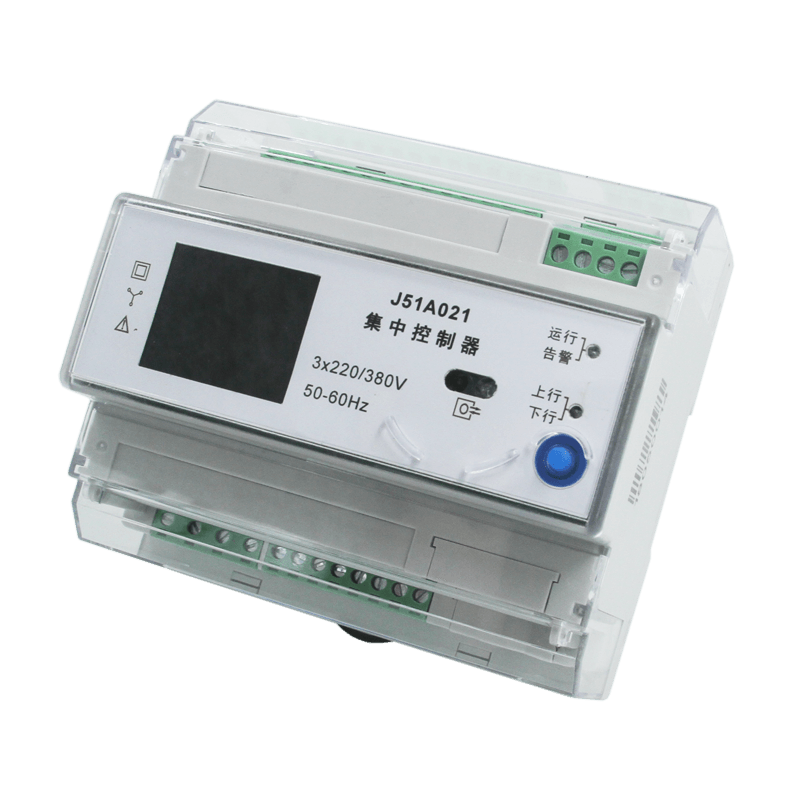

The centralized controller (centralizer) is located between the client (or cloud server) and the light controller, and is responsible for managing all the single light controllers under a transformer station, communicating with the client (or cloud server) upward via GPRS and downward via power line PLC (OFDM). The concentrator adopts an operating system model with a variety of built-in applications, providing a rich set of software features that allow it to work independently of the client (or cloud server).
Managing All The Single Light Controllers Rich Software Features Concentrator Suppliers
Home / Products / energy saving / Managing All The Single Light Controllers Rich Software Features Concentrator
J51A021
Contact Us
SPEC Download
Managing All The Single Light Controllers Rich Software Features Concentrator
- Technical Parameters
- Meter Dimensions
- Impulse Connection
- det6
-
Rated voltage: 3*220V Rated frequency: 50-60HZ Running power consumption: ≤10W Standby power consumption: ≤20μA Environmental conditions: -25℃～+75℃ Relative humidity: ≤85% Battery capacity: 1000mAh Number of street light controller access: Design number: 150 Historical data collection frequency: 15 minutes / time Number of configurable strategy sets: 99 -

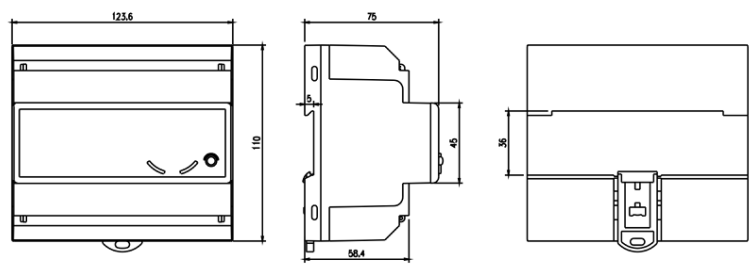

Length： 123.6mm
Width： 110mm
Height： 75mm
-
Must be strictly in accordance with the voltage level indicated on the label access voltage, if the access voltage is greater than 1.5 times the rated voltage, even for a short period of time will cause permanent smooth bad metering device.
The terminals must be tightened during installation, and the metering device must be hung firmly in a strong, fire-resistant, non-vibrating cabinet. The metering device should be installed vertically because it shows better when viewed from below.
After wiring, seal the end caps with lead. - https://hqcdn.hqsmartcloud.com/ytl-e/2022/07/07/智能路灯系统集中控制器plc(j51a021)中文规格书20180224.pdf
