Three phase four wire multi-function meter, 5 sections din rail installation mode, electric meter cover using flame retardant ABS material. Event record, load profile, tariff, demand, reactive power and other functions are available. Small size, large current, compact structure, performance indicators in line with IEC standards, to meet large load power consumption
YTL DIN Rail Three Phase Four Wires with IR and RS485 muliti Tariff Energy Meter Suppliers
Home / Products / multi-function energy meter / YTL DIN Rail Three Phase Four Wires with IR and RS485 muliti Tariff Energy Meter
.png?imageView2/2/format/jp2)
D513012
Contact Us
SPEC Download

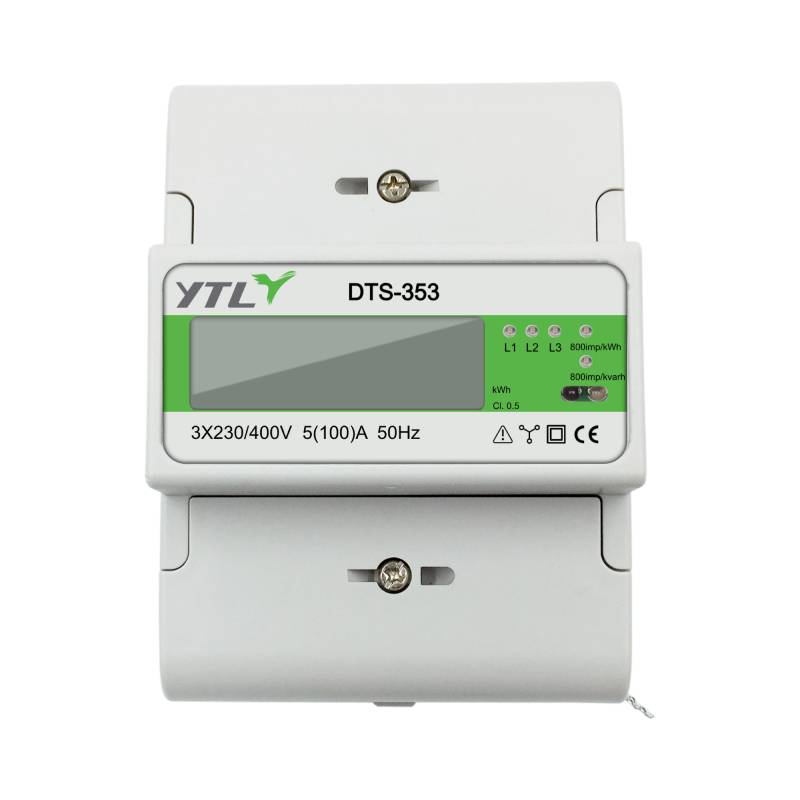

YTL DIN Rail Three Phase Four Wires with IR and RS485 muliti Tariff Energy Meter
- Technical Parameters
- Features

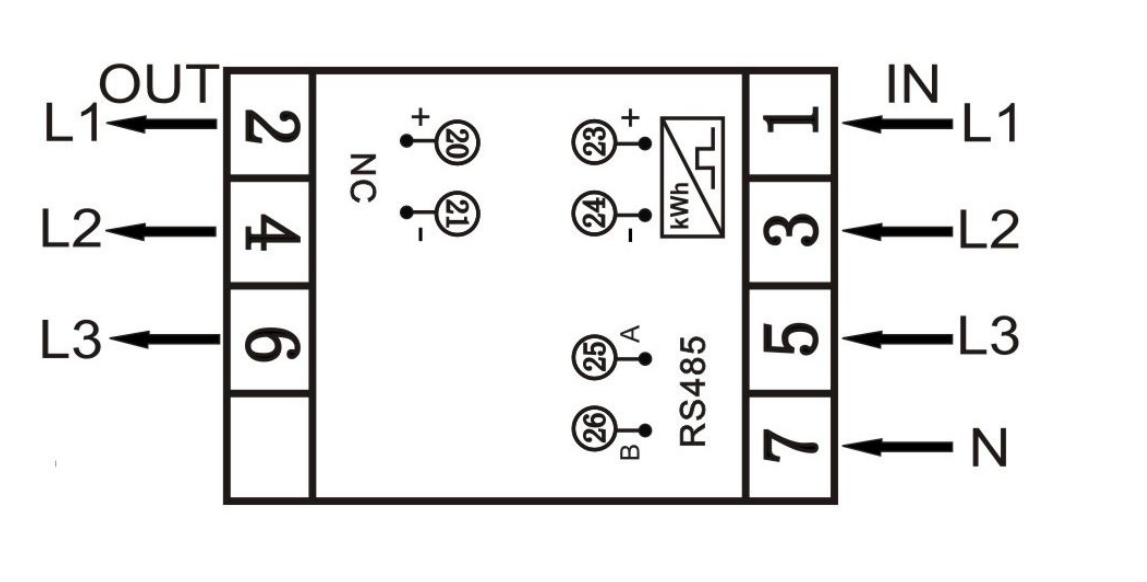

- Connection Diagram
- det6
-
Parameter Significance Accuracy class 1,0 Rated voltage of a power network 3*220 ± 10% Frequency of a power line, Hz 50 ± 10% Nominal (Max) current, A 3*5(120) tariffs 8 Quantity of independently programmed tariff seasons (months) in a 12 Number of independently programmed tariff days in a week 7 Quantity of tariffs in a day 8 Quantity of tariff zones in a day 24 Quantity of independently programmed holidays in a year 30 Resource of the built-in calendar, limit of year 2050 Possibility remote in transition to summer-winter time (ZV - at 03:00 the
last night of October since Saturday on Sunday at o'clock; LV – the
same for for March about 1 hour forward)available Speed of an exchange of IrDA, bats/second. 9600 constant, imp/kW 1600 Volume of statistical information stored in ROM, not less, days 465 Safety of statistical saved-up information in the absence of power supply, years 40 Daily average leaving of a real time, second. ±0,5 The range of temperature of operation - 40 ~ +70 -
Features● 8 tariffs, with IR and RS485 communication● Meter with easy replace battery, and the precision of RTC is better than 0.5s/day.● Green LCD backlight allows the meter to be read in low light conditions.● 9 pages LCD display, they are total , each tariff kWh. The display is switched on by any knob ofa hand terminal used for home electronic equipment (TV, radio and so on).● Reactive energy can be measured.● Event record in non-volatile memory with 30 minutes interval and keep the data for a period of465 days.a. average voltage for the previous 30 minutes;b. average current for the previous 30 minutes;c. Last 100 times power off eventsd. Last 10 times cover open events● Material of meter case: ABS fire resistant.
-
